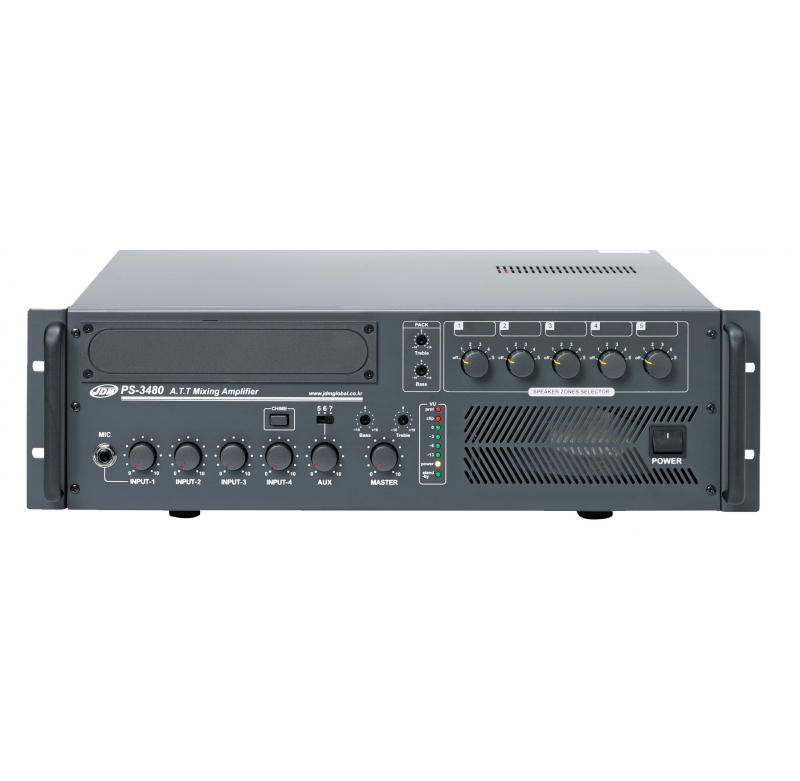

120W preamplifier amp in 100V of 5 zones with DC 24V
8809267791025
01156
120W preamplifier amplifier
5 zones
100V Line
In Stock
Delivered within 48/72h
For professionals
To log inFor individuals
Contact usProduct sheet in PDF format
The PS 3000 series of amplifier preamplifiers can provide coverage for five zones with different power ratings: 120W, 240W, 360W and 480W.
Connectors for call microphone console and slots for audio source modules.

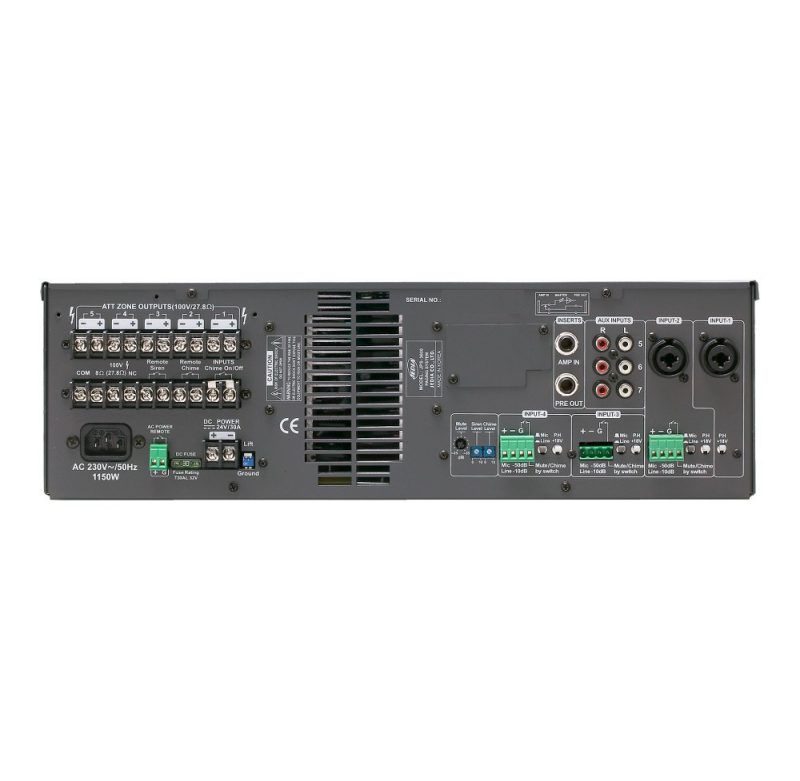

7 inputs - Integratable audio source module - 5 x 100 Volt lines - 220V-240V/24V
• RCA jack for inputs 5 to 7 (AUX selector)
• Inputs 2 to 4 with Microphone/Line selection
• PRE OUT/AMP IN for connecting a power amplifier
• Input terminal block with remote control for PS-100 call microphone console
• Outputs 25V/35V/50V/70V and 100V, power ratings 120W/240W/360W/480W RMS
• Voice priority on input 1
• Cut-off contact and chime on inputs 2 to 4, which take priority over inputs on the modules.
• Screw terminal block for inputs 2 to 4
• Independent bass/treble adjustment for modules
• Phantom power on inputs 1 to 5 for condenser microphones
• Overvoltage protection on microphone inputs
• Audio source module slot (TP-100RDSU, DMT-100-2, CDP-100MU, CDR-100RDSU, EM 600)
• Bass/treble control (100 Hz, 10 KHz)
• 5-zone attenuators
• Variable speed fan
• Overvoltage, overheating and short circuit protection
• 24 V AC/DC operation
• Dry contact for sound system cut-off
| FEATURES |
PS-3120 (code 01156) |
Postscript 3240 (code 01008) |
Postscript 3360 (code 01009) |
P.S. 3480 (code 01010) |
|
| Input sensitivity/impedance |
Entrance 1 |
MIC: 50dBu (2.45mV) 2K balanced |
|||
|
Entrance 2~4 |
MIC: -50 dBu (2.45 mV) 2 kΩ balanced LINE: -10 dBu (245 mV) 200 kΩ balanced |
||||
| Entrance 5~7 | AUX: -10 dBu (245mV) -5 K unbalanced | ||||
| MODULE PACK UNIT | - 10 dBu (245mV) -10 K unbalanced | ||||
| PRE OUT | 0 dBu (775mV) 100 unbalanced | ||||
| AMP IN | 0 dBu (775mV) 10 k unbalanced | ||||
| RMS output power | 120 W | 240 W | 360 W | 480 W | |
| MAXI output power | 180 W | 360 W | 540 W | 720 W | |
| Direct output | Low impedance: 8 / High impedance: 70 V or 100 V | ||||
| ATT releases | 25V, 35V, 50V, 70V, 100V | ||||
| Bandwidth |
LOW: 200 Hz – 19,000 Hz – 3 dB LINE: 35 Hz – 19,000 Hz – 3 dB |
||||
| Signal-to-noise ratio |
MIC: >70 dB LINE: >80 dB |
||||
| Harmonic distortion | -0.4% at 1 kHz | ||||
| Tone adjustment |
Bass: ±10 dB at 100 Hz High frequencies: ±10 dB at 10 KHz |
||||
| Power consumption | 350 W | 740 W | 1150 W | 1420 W | |
| Power consumption 230 V | 1/8 of the power | 0,8A | 1,6A | 2,5A | 3,2A |
| one-third of the power | 1,2A | 2A | 3,8A | 4,7A | |
| Rated power | 1,8A | 3,2A | 6A | 7,5A | |
| Food | AC 230V / 50 Hz / DC 24 V | ||||
| Dimensions (W x D x H) | 483 x 352 x 133 mm (3U) | ||||
| Weight | 14 Kg | 17 Kg | 19.5 kg | 21 Kg | |
