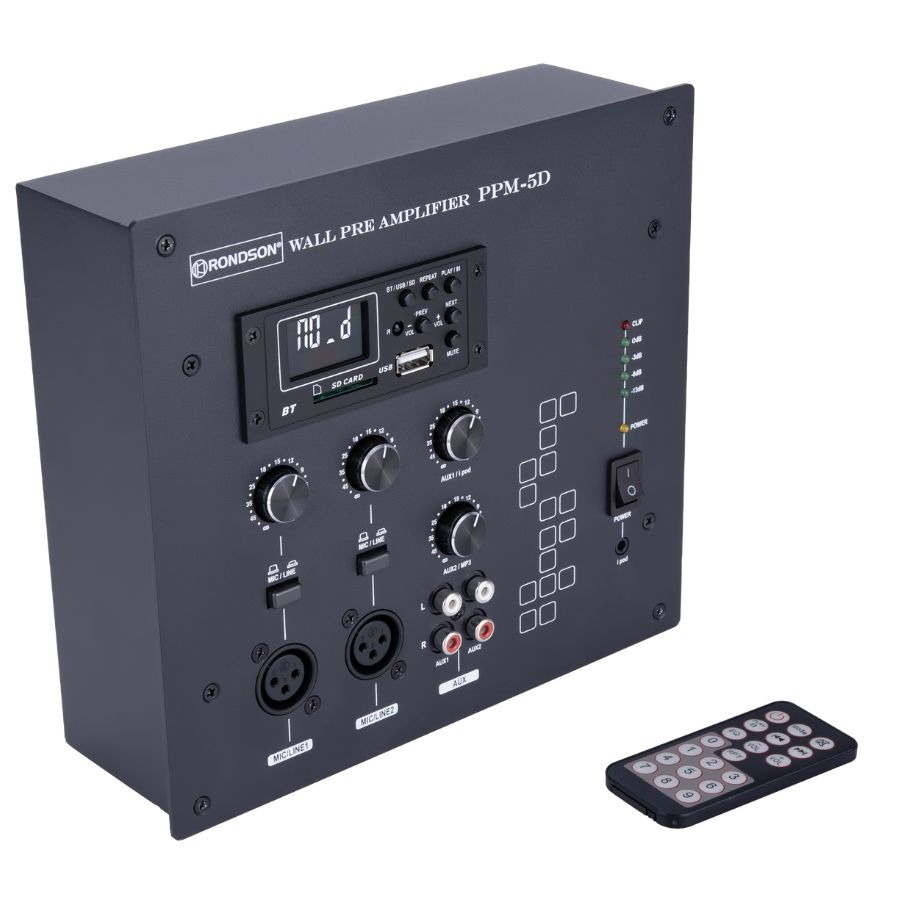

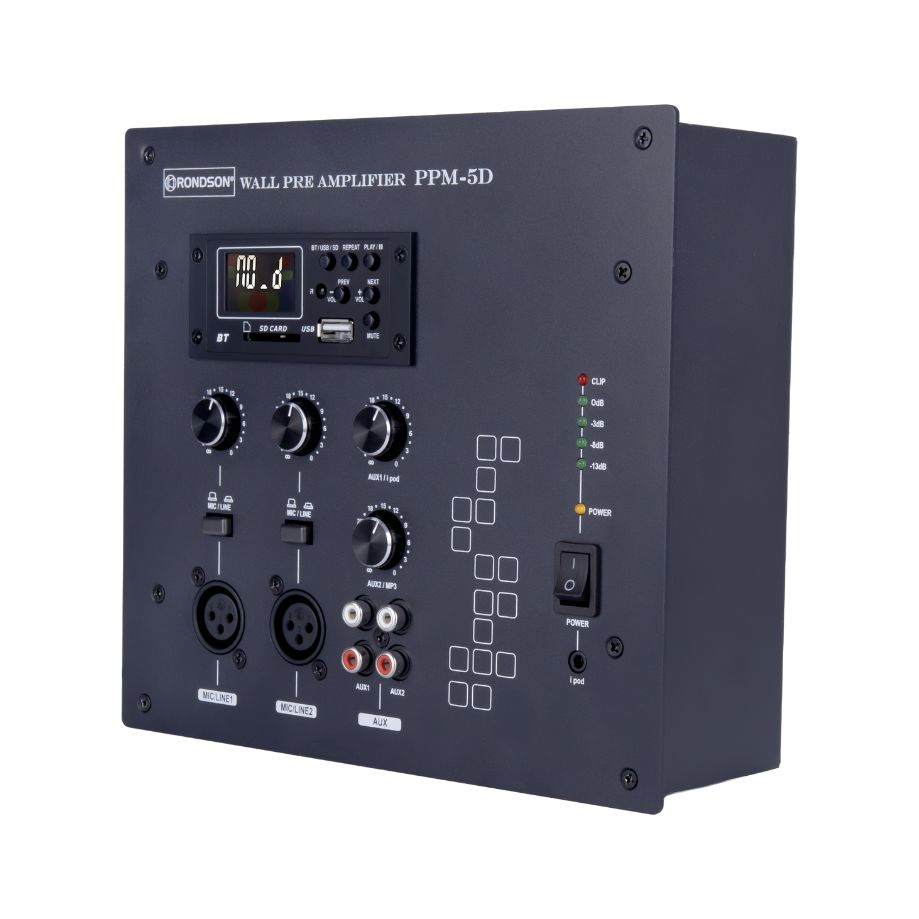

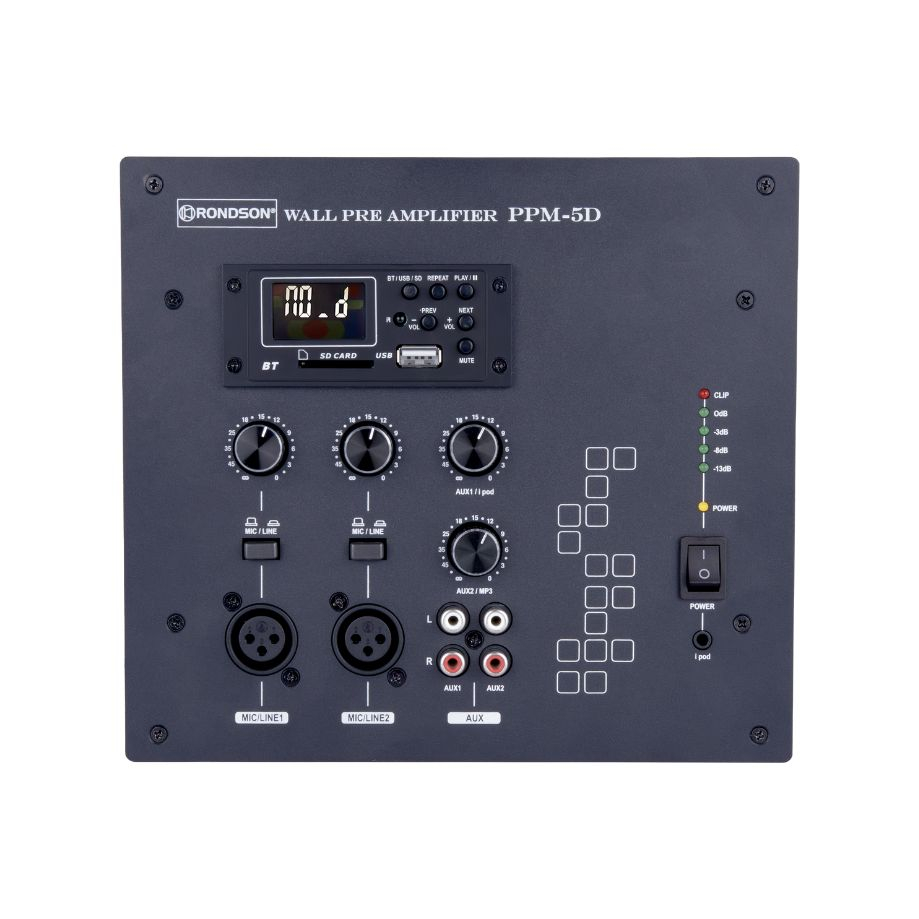

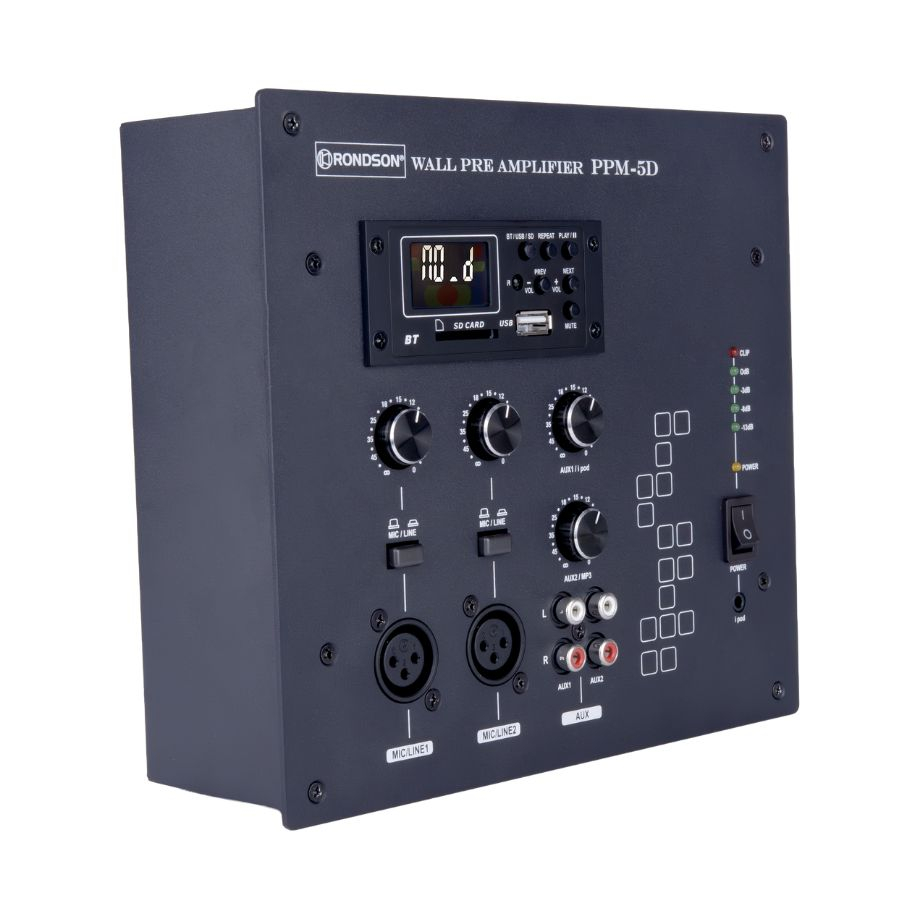

Wall preamplifier black digital multimedia

Reference : PPM-5DN
SKU : 02859
EAN13 : 3701567913808

Wall preamplifier 5 inputs

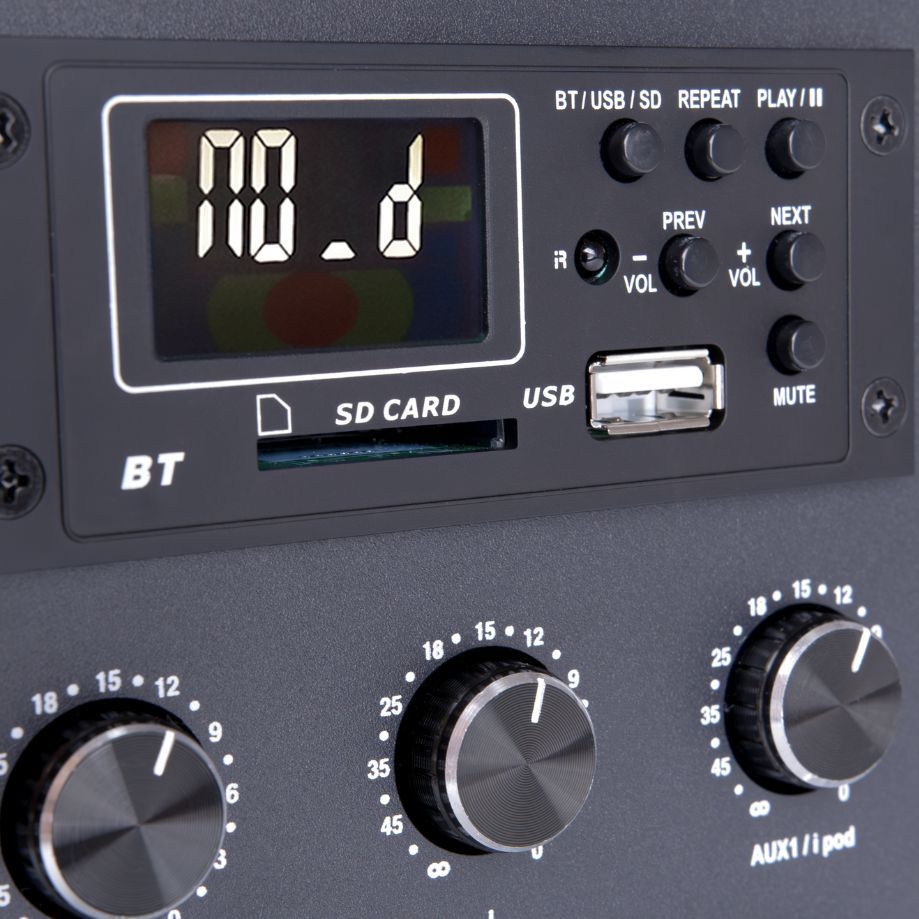

Media player: USB/ SD and Bluetooth

Remote control

Wall cabinet

Share

Description

Wall-mounted preamplifier for indoor use, for example in gyms, multi-purpose halls, etc.

It is equipped with:

  • 2 XLR MIC/LINE inputs
  • 2 RCA AUX inputs
  • 1 iPod input
  • ON/OFF switch

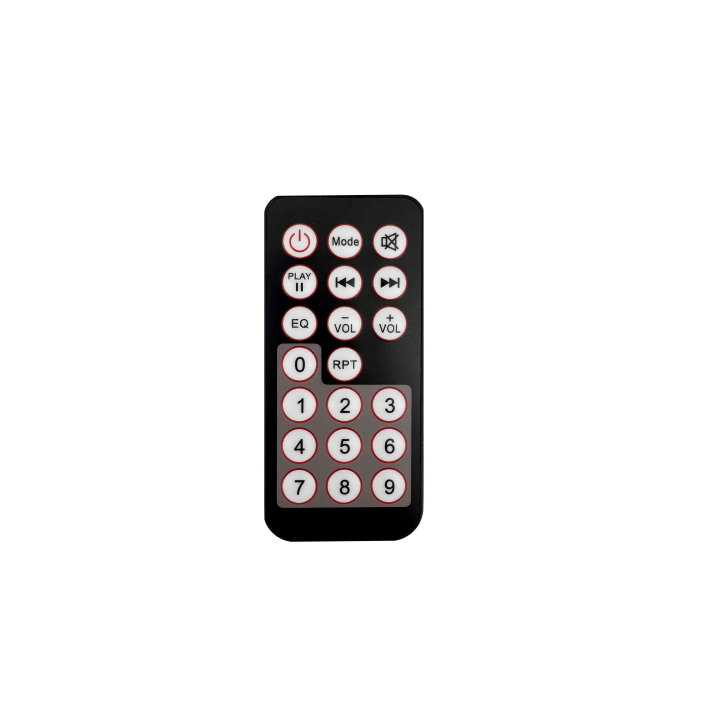

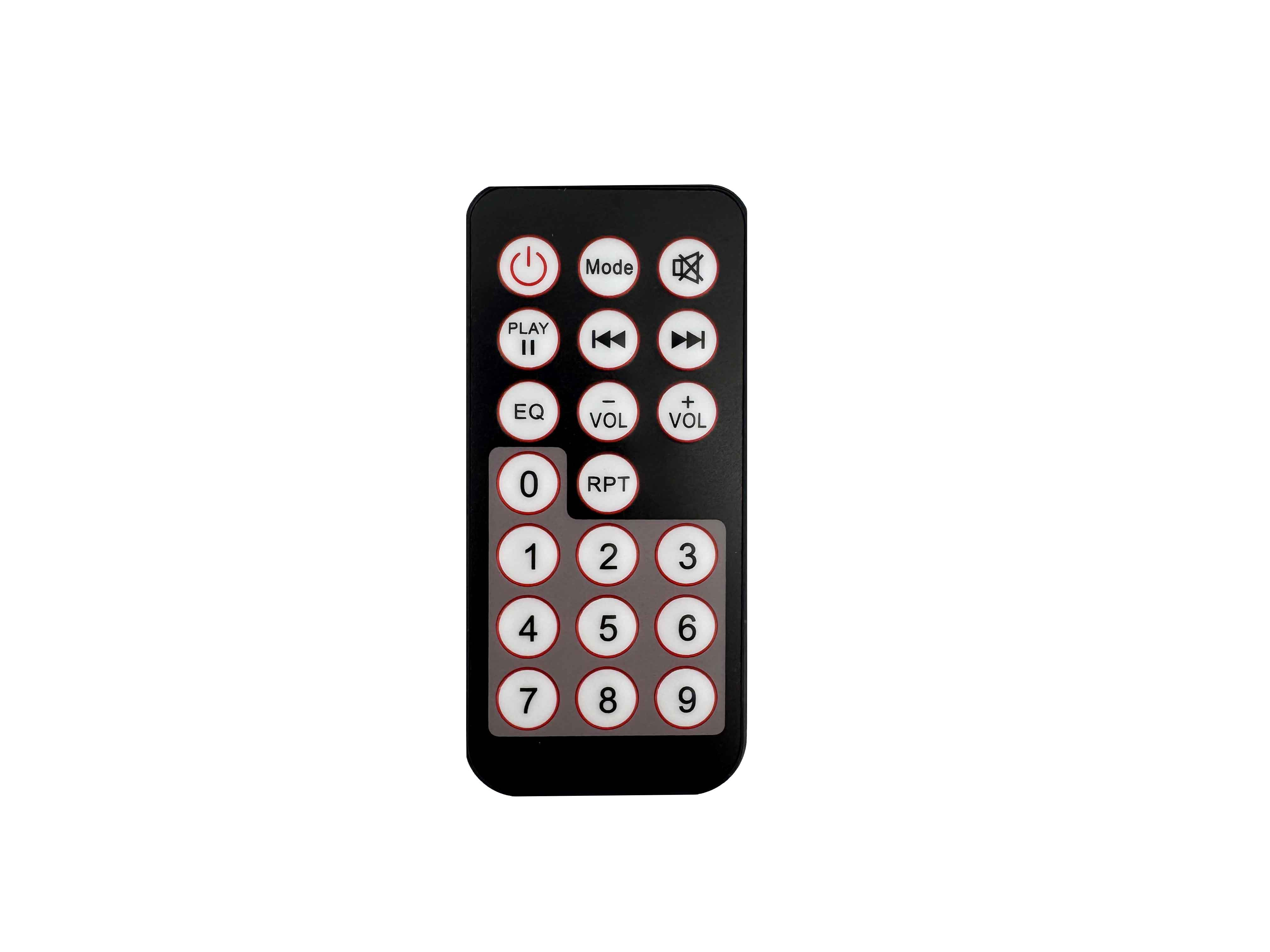

  • Remote control

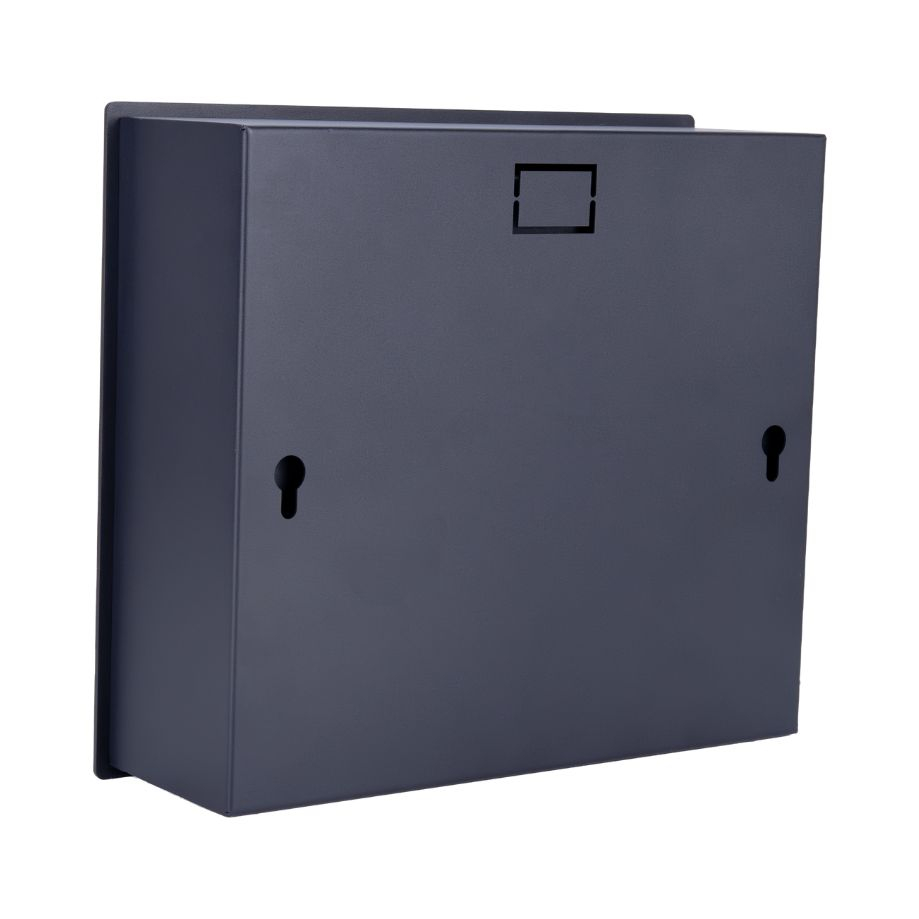

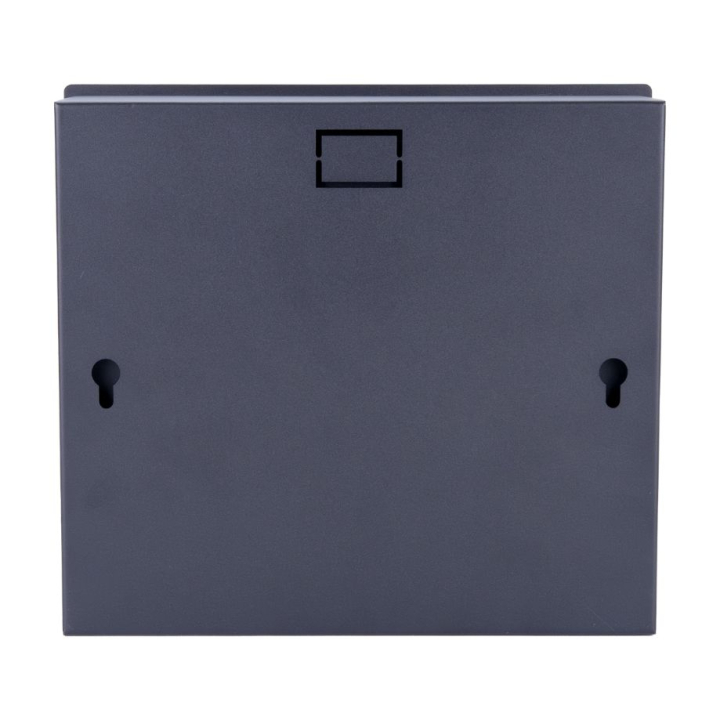

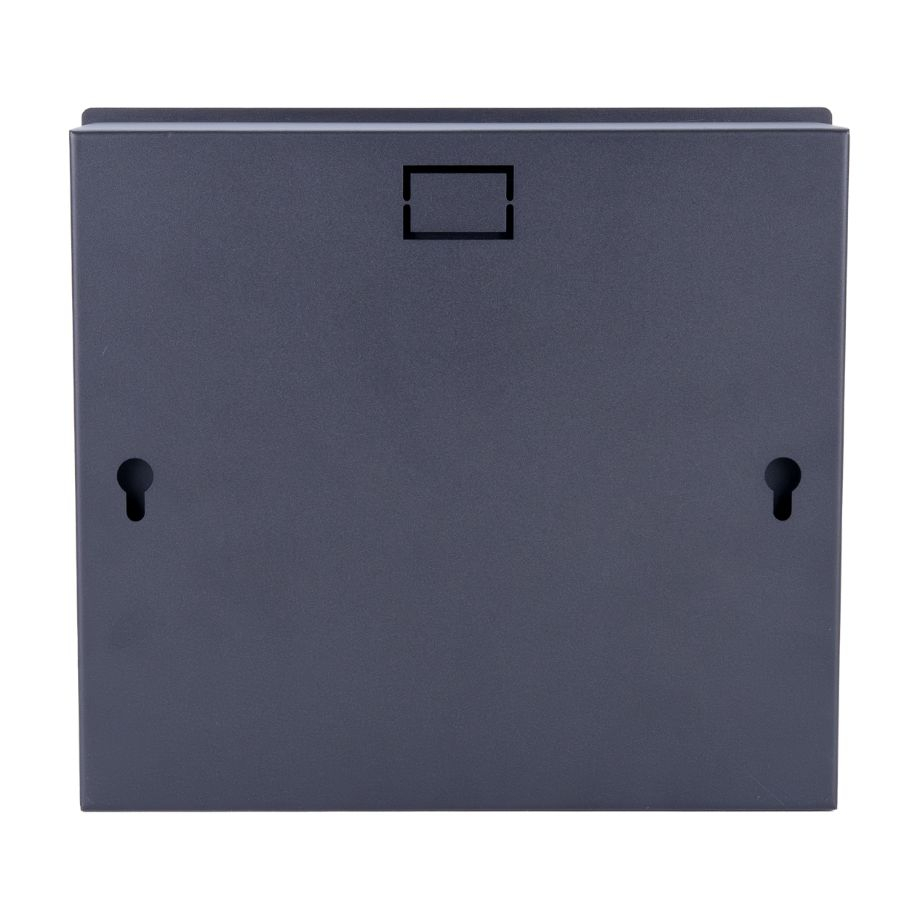

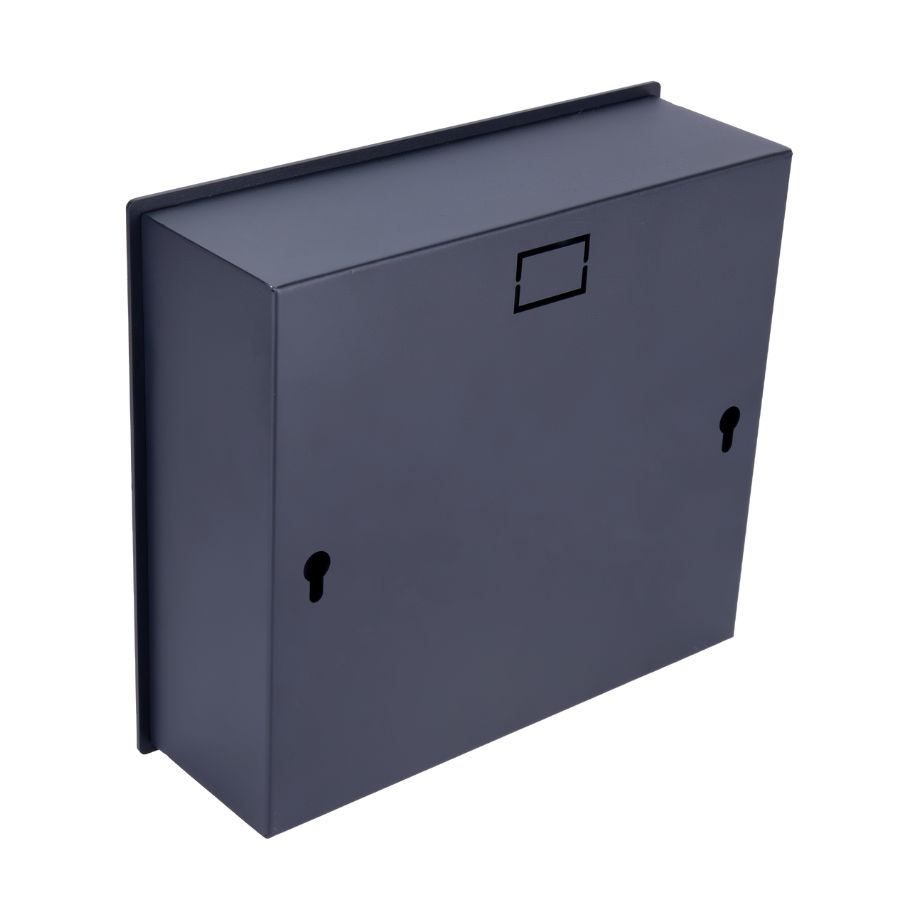

  • Wall-mounted flush-fit housing

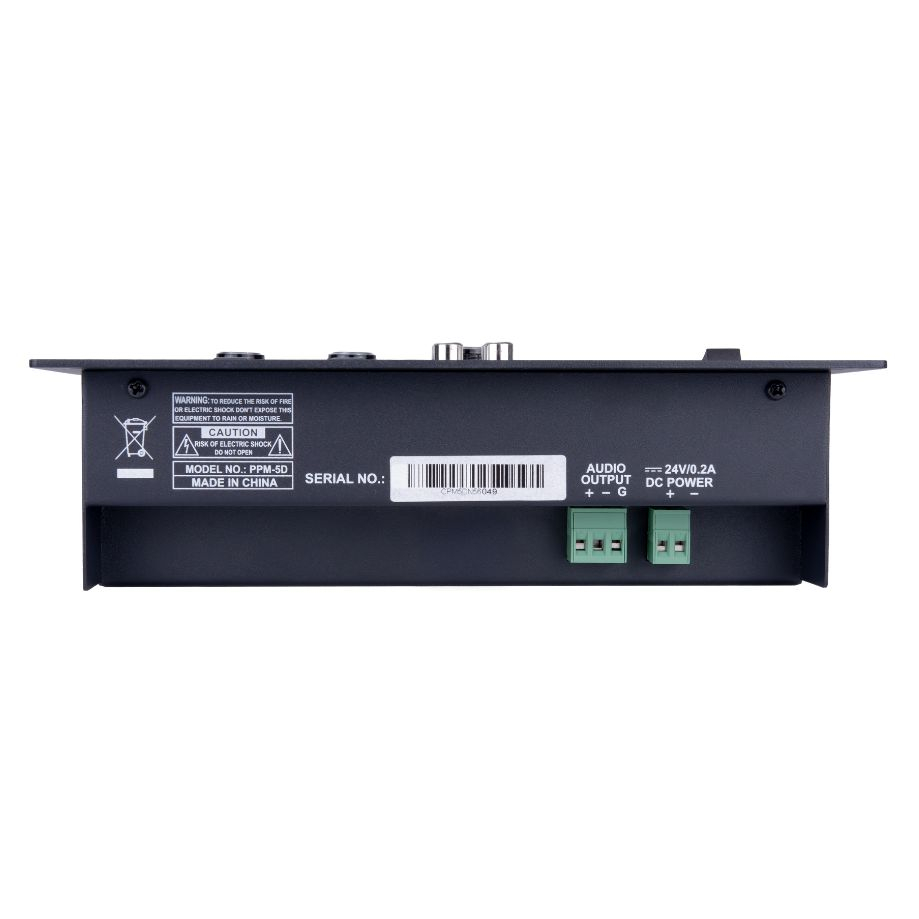

  • External 24 V DC power supply not included: PPM5 POWER SUPPLY

Product Details

  • Brand
  • Reference
    PPM-5DN
  • SKU
    02859
  • EAN13
    3701567913808

Data sheet

  • Type
    Digital wall-mounted preamplifier
  • Power consumption
    4.8 W
  • Signal-to-noise ratio
    MIC : 75 dB LINE/AUX I-pod : 85 dB
  • Audio output level
    +8 dBu (V.R MAX)
  • Alimentation
    24V DC / 200 mA
  • Distorsion harmonique totale
    0.1 %
  • Bande passante
    20 – 20 000 Hz (± 3 dB)
  • Entrées / Sensibilité
    MIC : - 50 dBu (2,45 mV) 5 KΩ symétrique LINE : 0 dBu (775 mV) 5 KΩ symétrique AUX I-pod : - 10 dBu (245 mV) 15 KΩ asymétrique
  • Dimensions (W × D × H)
    220 x 200 x 60 mm
  • Weight
    2.3 kgs
