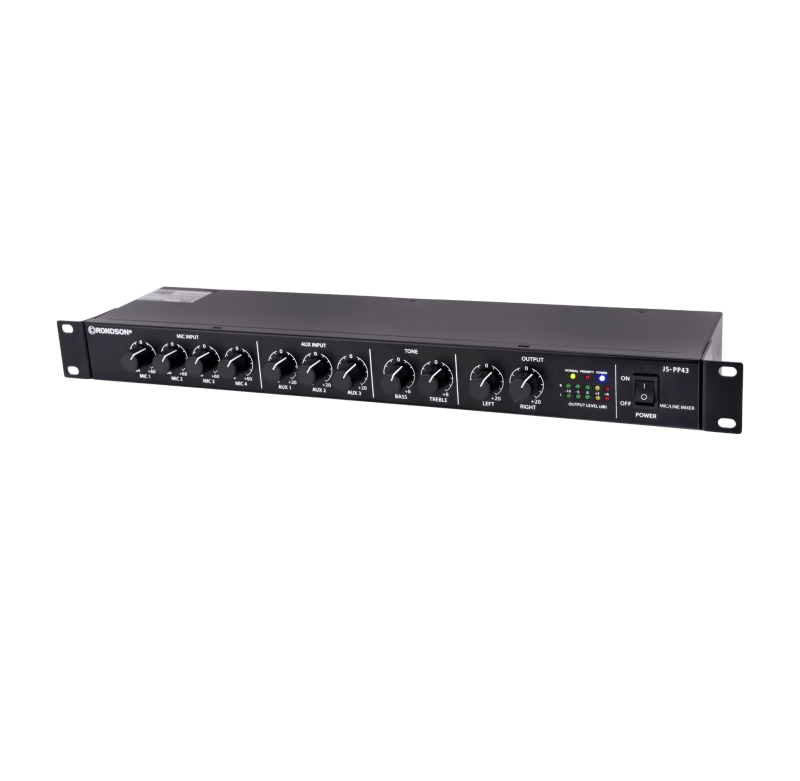

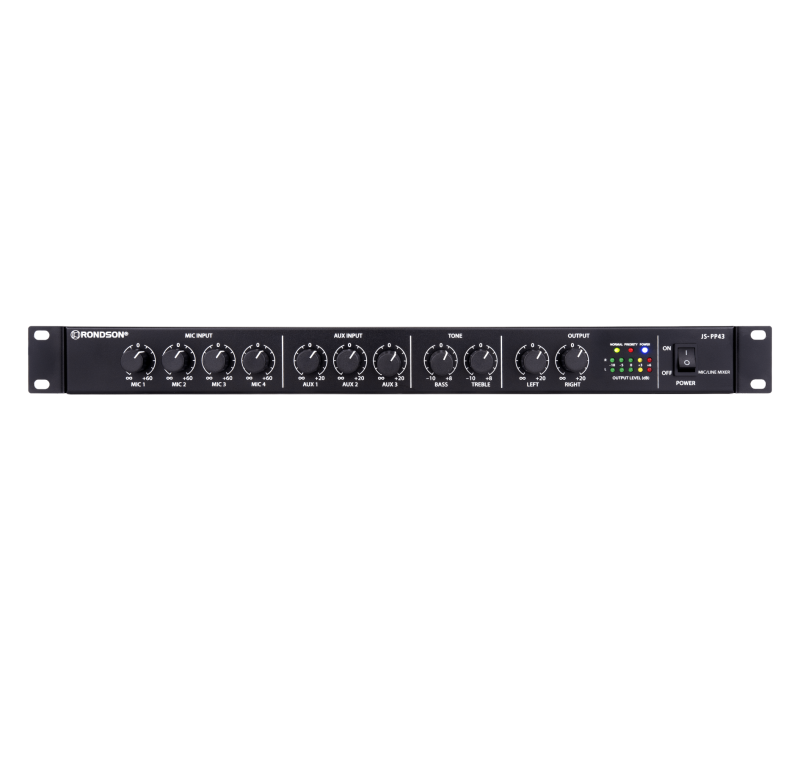

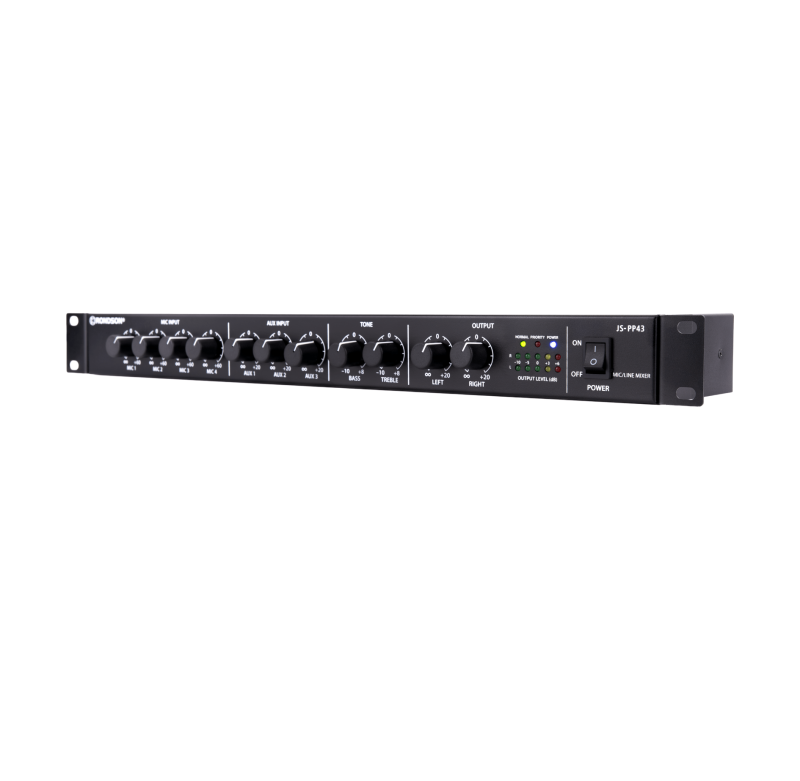

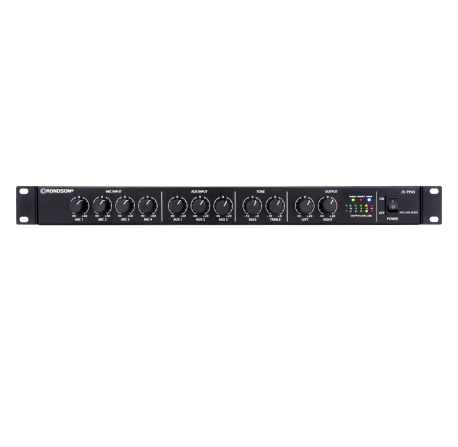

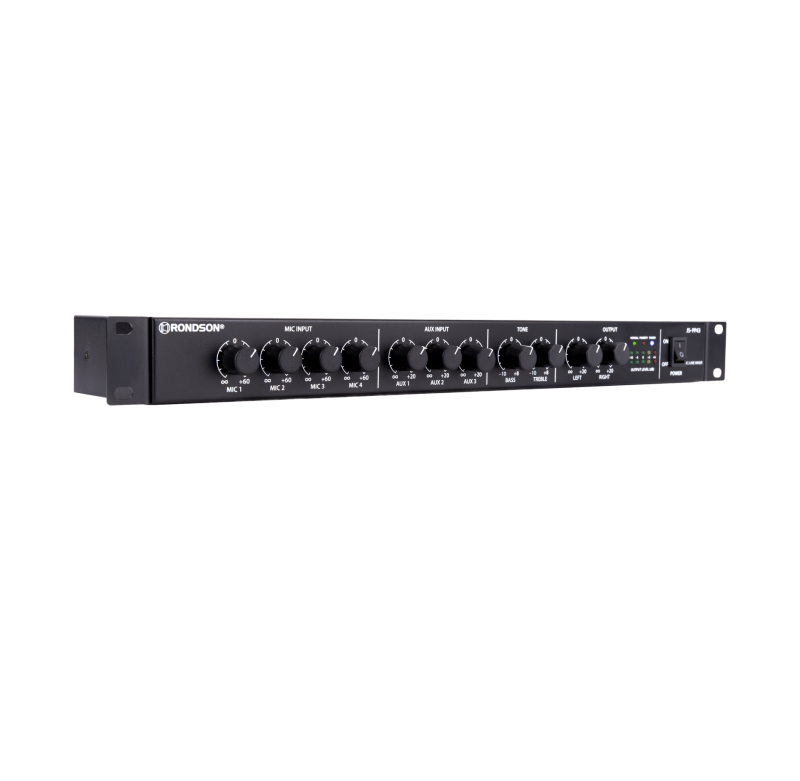

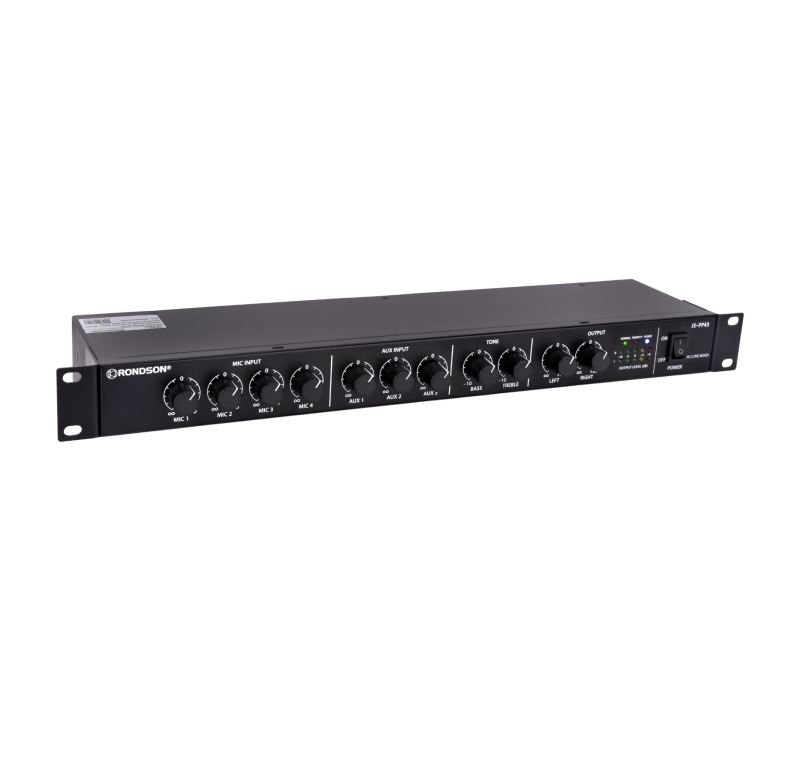

Mixer 7-input preamplifier (4 microphones / 3 Aux) with priority - JS-PP43

Name: Mixer 7-input preamplifier (4 microphones / 3 Aux) with priority - JS-PP43
Brand: RONDSON
SKU: JS-PP43

Reference : JS-PP43

SKU : 02909

EAN13 : 3701567913907

Preamplifier 7 inputs

mono and stereo

JS-PP43

JS-PP43

Description

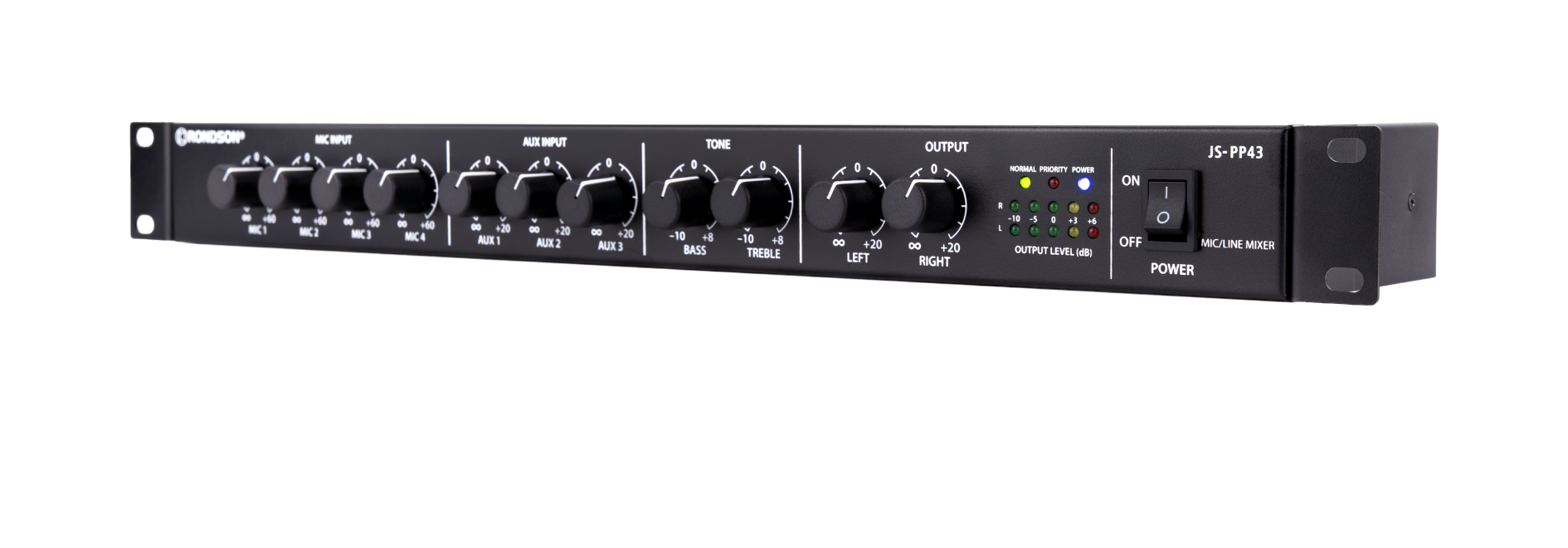

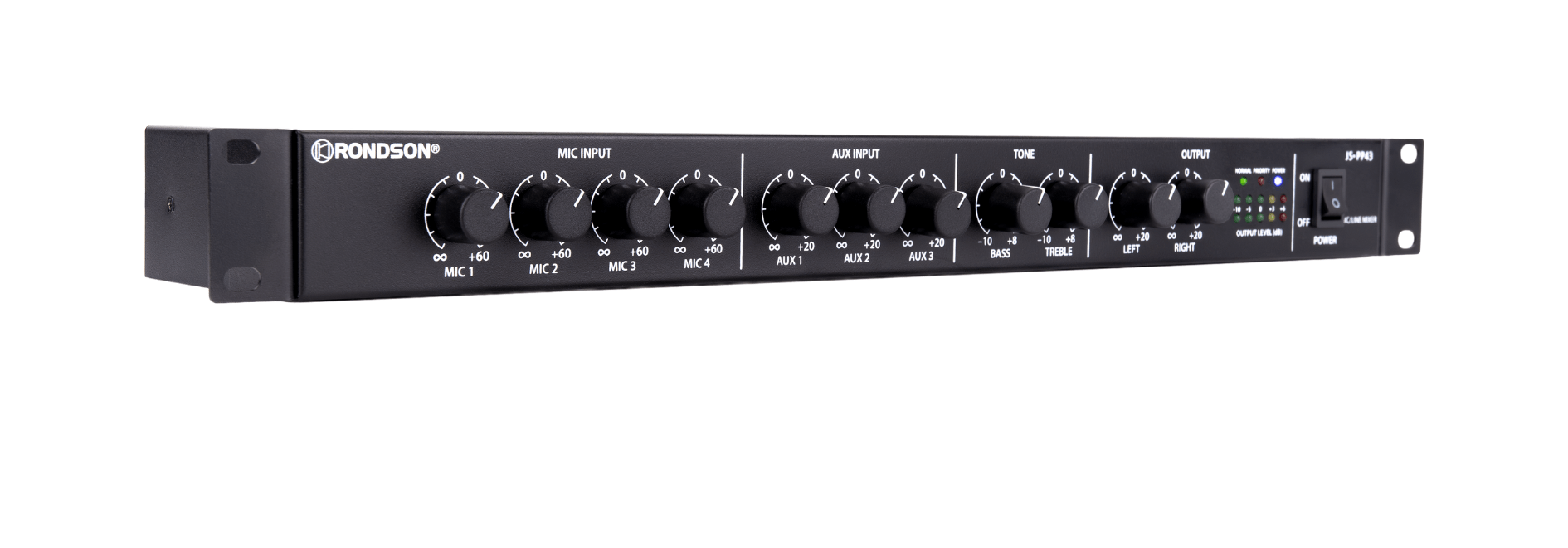

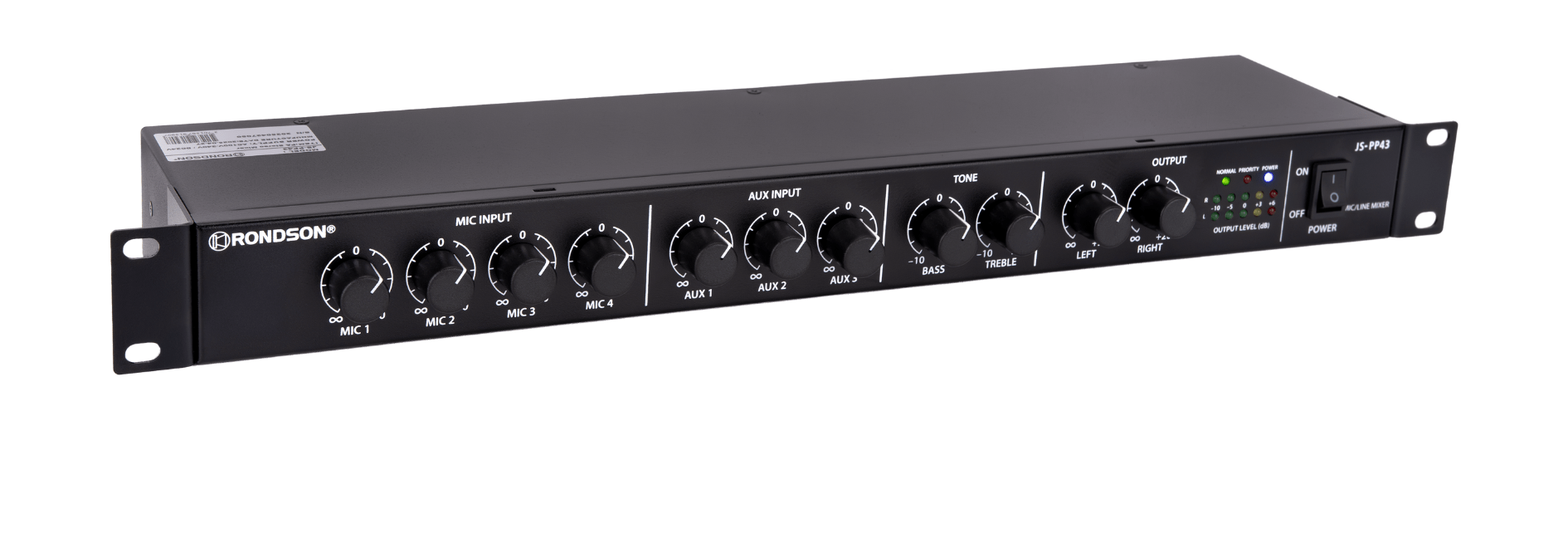

The mixer preamplifier offers 7 inputs for professional mono and stereo use. It operates on 230V mains or 24V DC power.

Product Data Sheet (PDF):

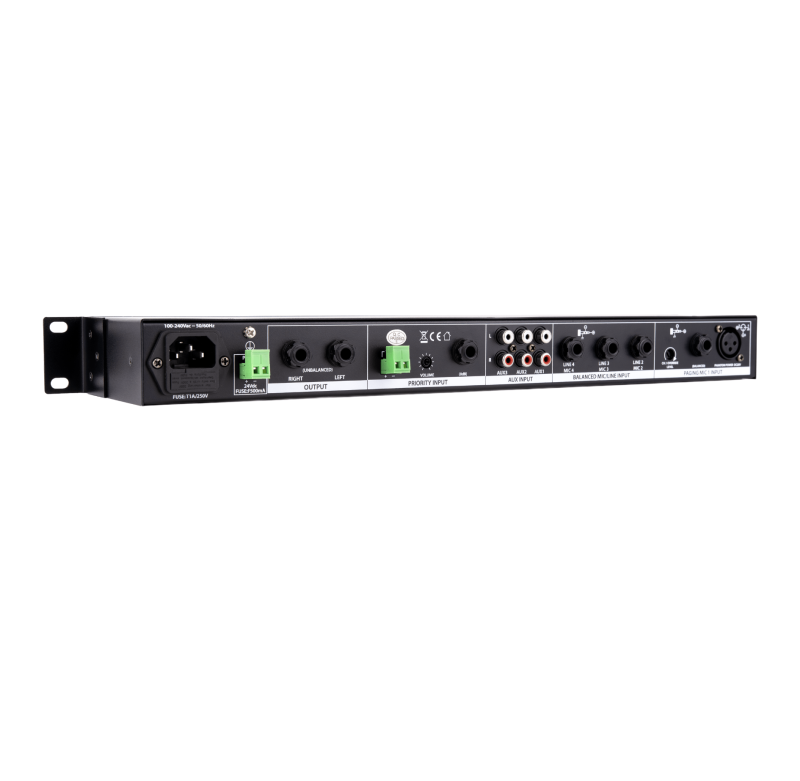

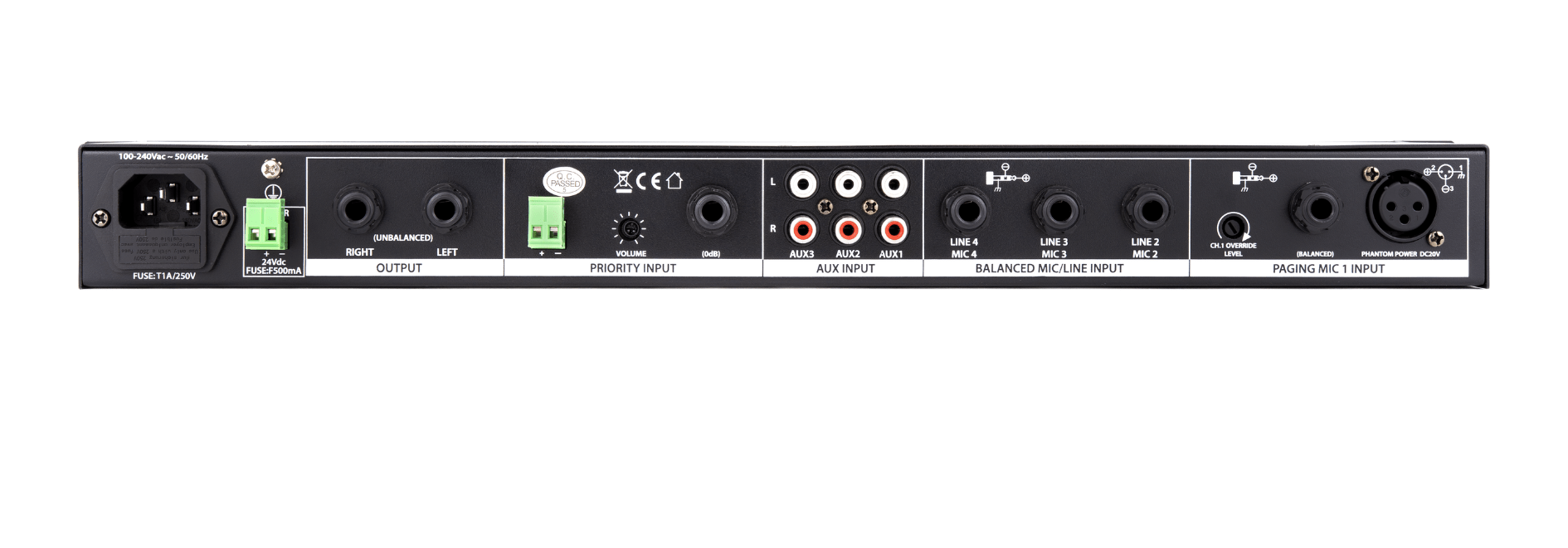

7 universal inputs on combo XLR & 6.30 mm JACK, MIC/LINE and adjustable phantom power
Priority function on input 1 with potentiometer-adjustable attenuation

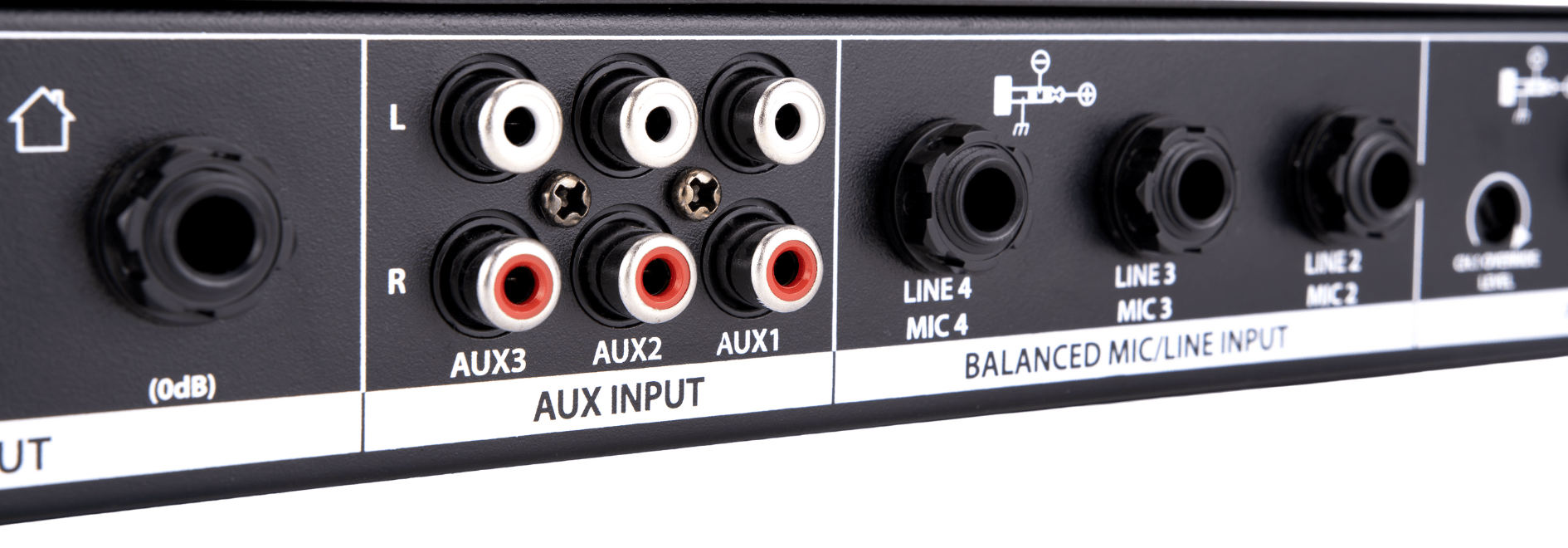

3 RCA stereo inputs
1 stereo LINE OUT XLR + 1 mono 6.30 mm JACK output with volume control
1 MIC OUT 6.30 mm JACK to monitor output signals from mics 1 to 6
6.35 mm JACK recording output
3-band equalizer
4 level indicator LEDs
Dimensions (W x D x H): 482 x 130 x 44 mm (1 U)
Weight: 1.43 kg

Technical Specifications — JS-PP43
Specifications	JS-PP43
Type	7-channel preamplifier
Fuse	T1AL 250V (mains) or F500mA (24Vdc)

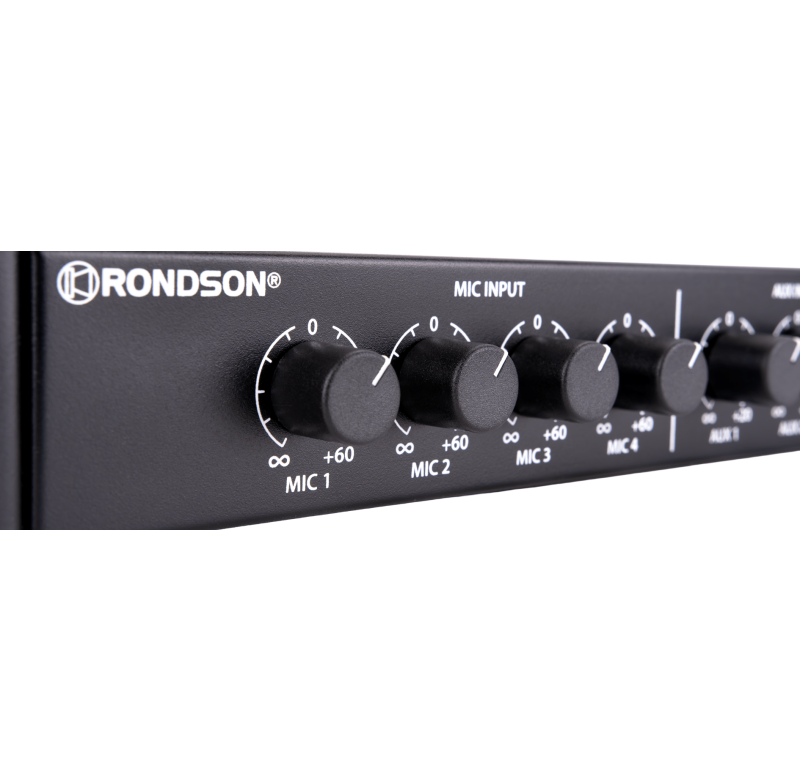

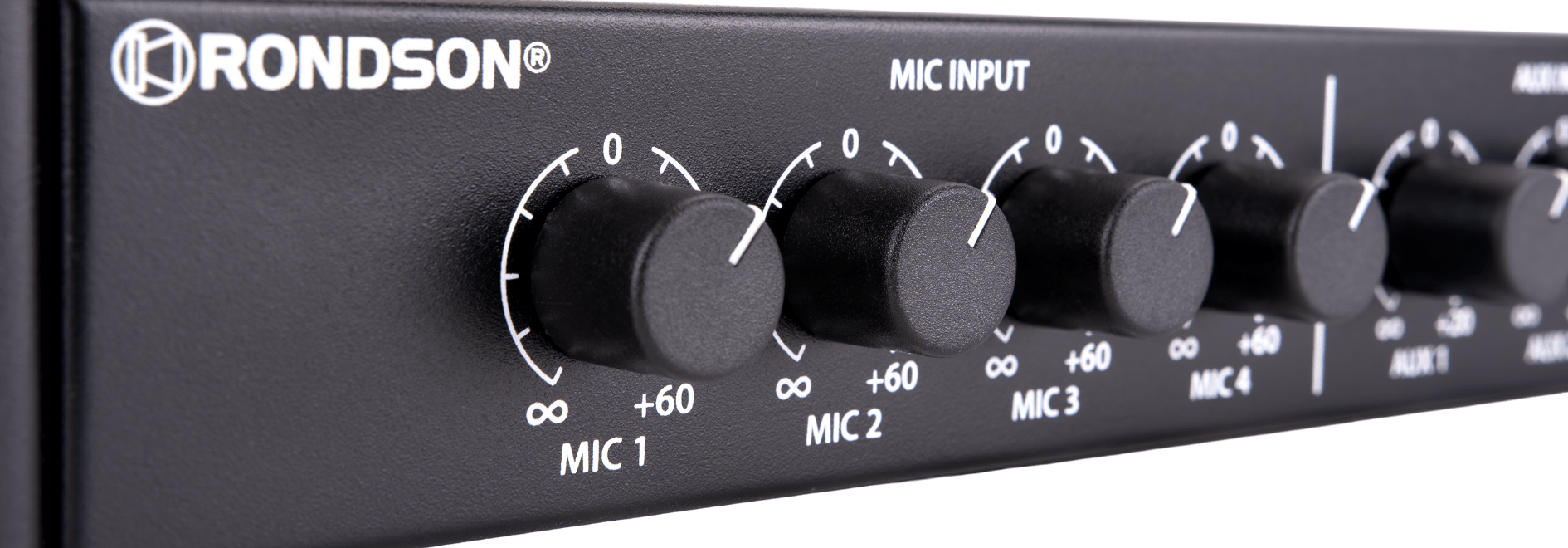

Microphone inputs	4 x 6.3 mm balanced jacks (+ XLR for mic 1)

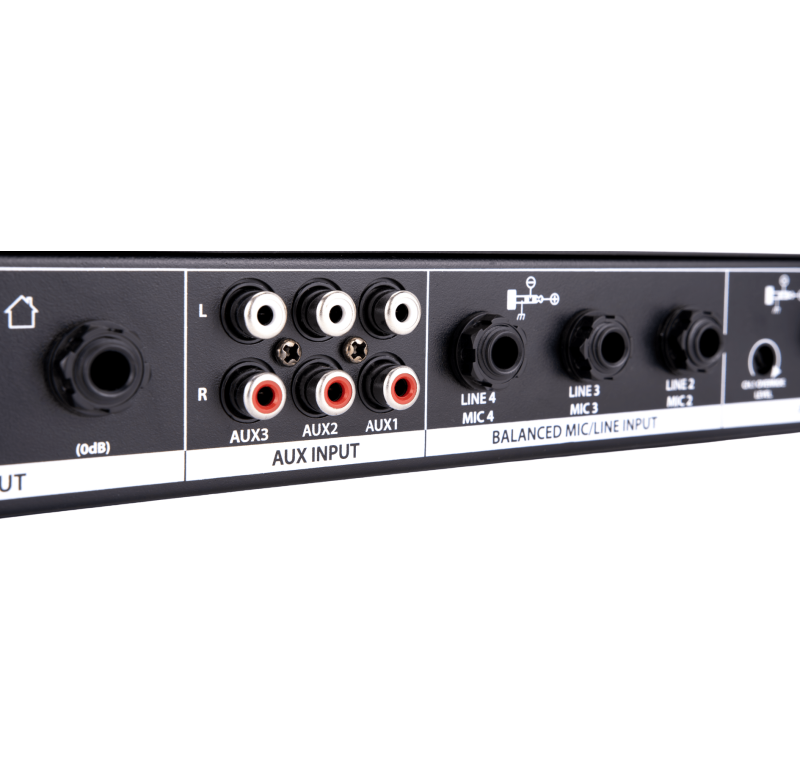

Auxiliary inputs	3 x stereo RCA (L+R)
Priority input	Line level (6.3 mm jack), 100V
Outputs	Left + Right 6.3 mm jack
Phantom power	+20 V
Total harmonic distortion	0.05 %
Input impedance	2.2 kΩ (mic/line), 10 kΩ (AUX)
Power supply	AC 100-240V - 50/60 Hz - DC 24V
Dimensions (W x D x H)	482 x 130 x 44 mm
Weight	1.43 kg

Type

Préamplificateur 7 canaux
Impédance

2,2 kΩ (mic/ligne), 10 kΩ (AUX)
Entée mic

4 x jack 6,3 mm symétriques (+ XLR pour micro 1)
Entrée AUX

3 x RCA stéréo (L+R)
Sortie AUX

Gauche + Droite jack 6,3 mm
Rapport Signal / Bruit

54dB (mic), 58dB (aux/line)
Entrée prioritaire

Niveau ligne (jack 6,3 mm), 100V
Fusible

T1AL 250V (secteur) ou F500mA (24Vdc)
Sortie

Gauche + Droite jack 6,3 mm
Alimentation

AC 100-240V - 50/60 Hz - DC 24V
Alimentation fantôme

+20 V
Distorsion harmonique totale

0.05 %
Réponse en fréquence

130Hz - 21kHz (mic), 120Hz - 26kHz (line), 50Hz - 35kHz (aux)
Dimensions (L x P x h)

482 x 130 x 44 mm
Poids

1.43 kgs
