Digital multimedia wall preamplifier white

Name: Digital multimedia wall preamplifier white
Brand: RONDSON
SKU: PPM-5DB

Reference : PPM-5DB

SKU : 02858

EAN13 : 3701567913792

Wall preamplifier 5 inputs

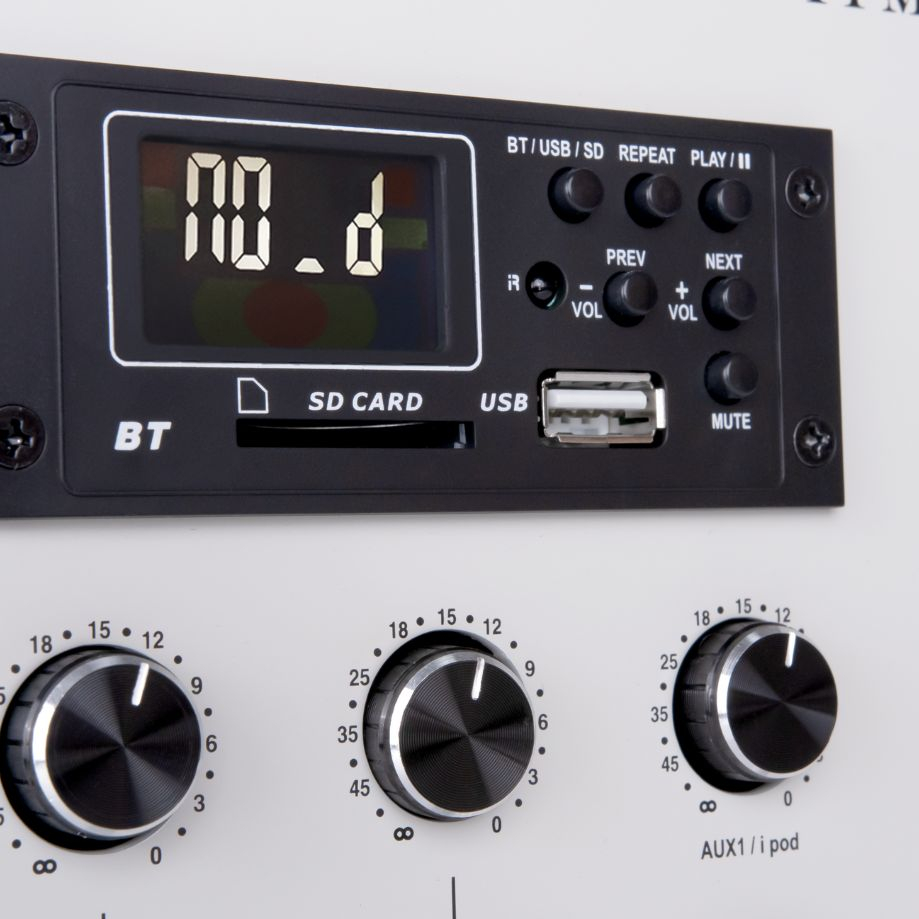

Media player: USB/ SD and Bluetooth

Remote control

PPM-5D

PPM-5DB

Description

Product sheet in PDF format

Description

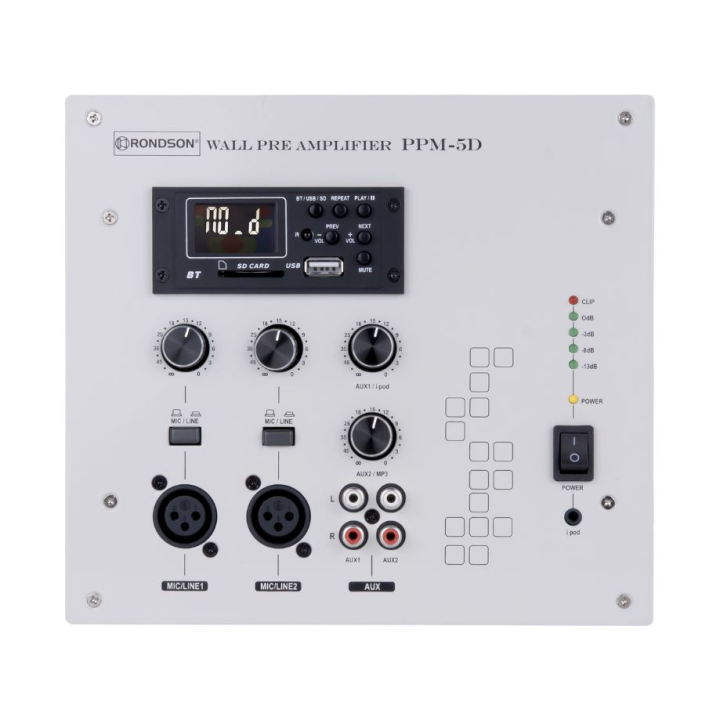

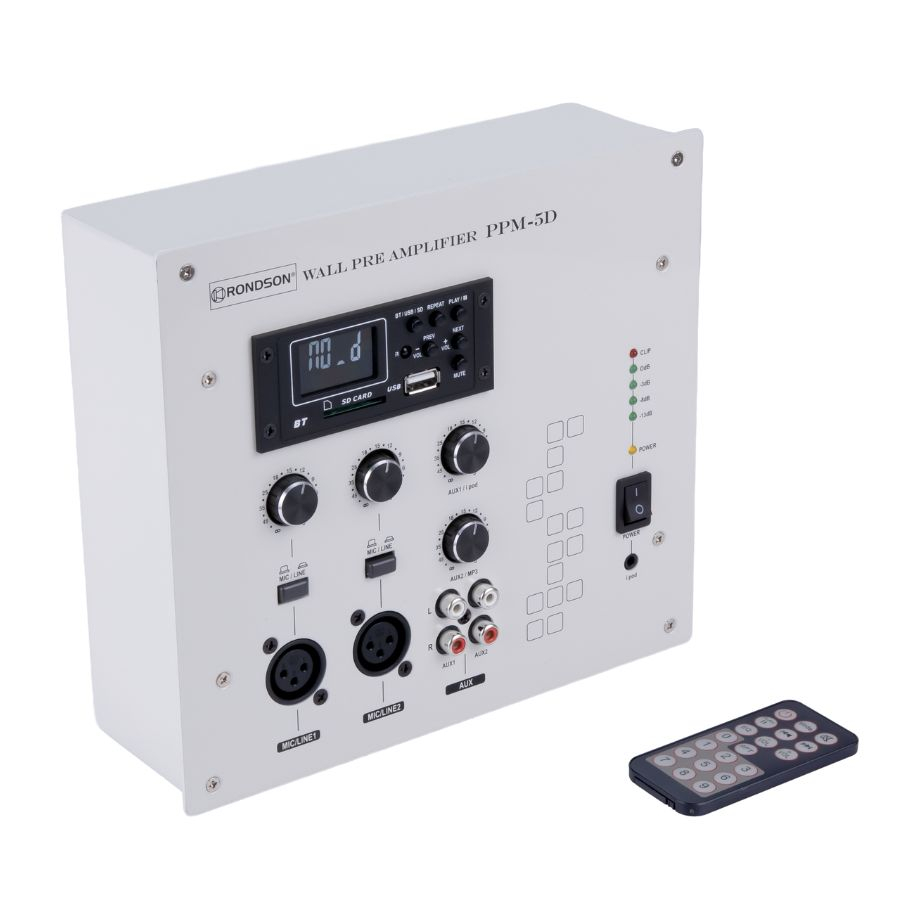

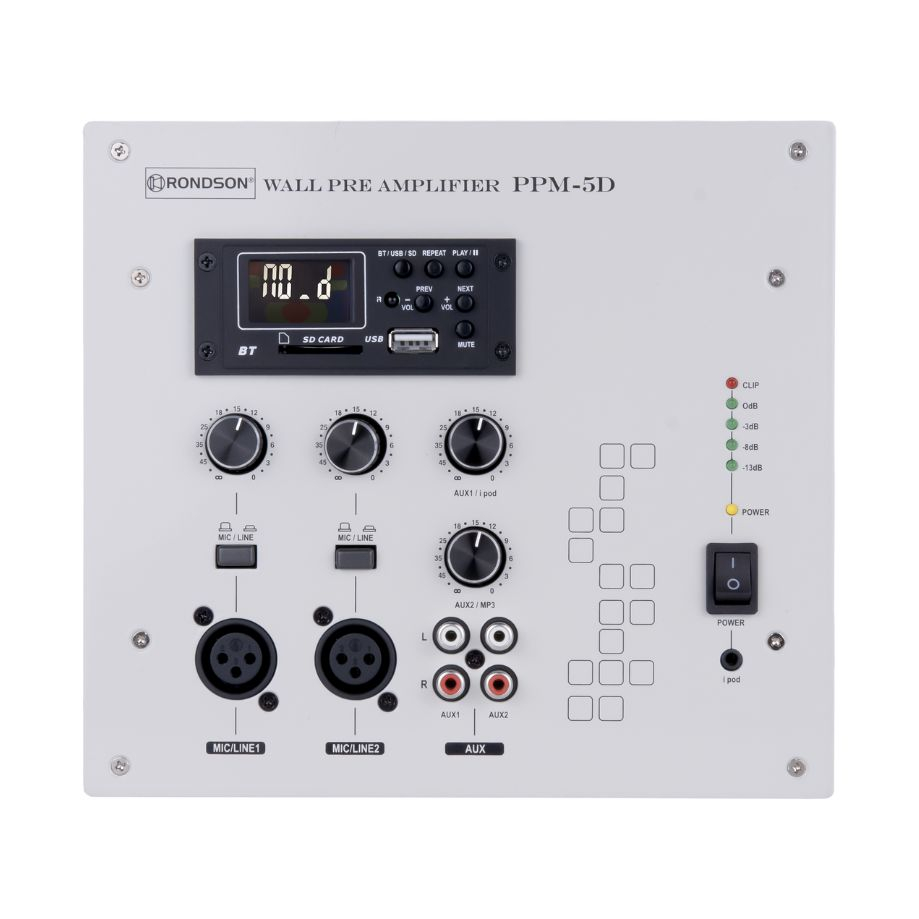

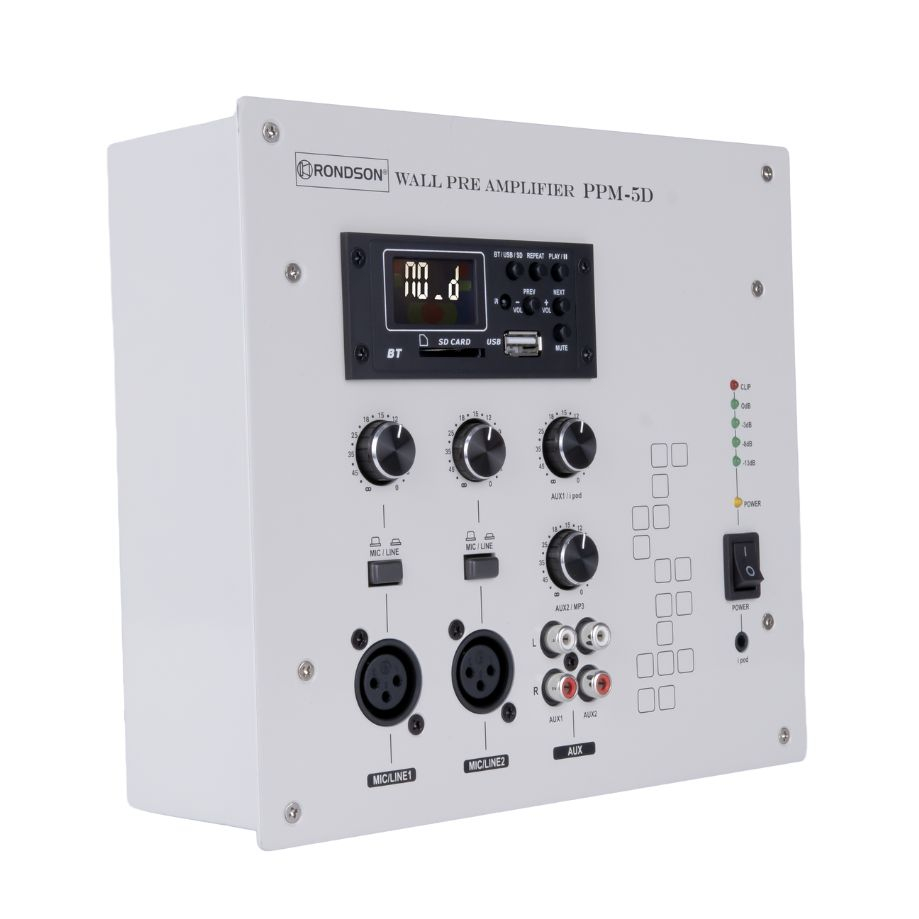

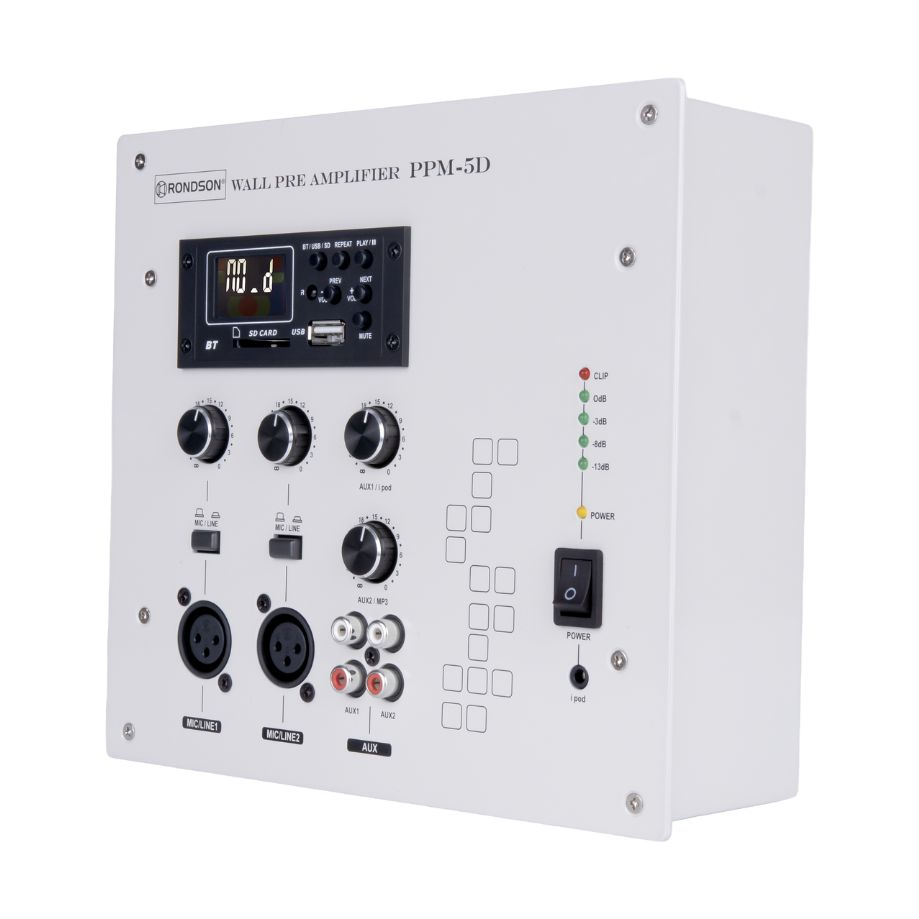

Wall-mounted preamplifier for indoor use, e.g. in gyms, multipurpose halls, etc.

Features
It is equipped with:
• 2 MIC/LINE XLR inputs
• 2 RCA AUX inputs
• 1 iPod input
• Inter ON/OFF

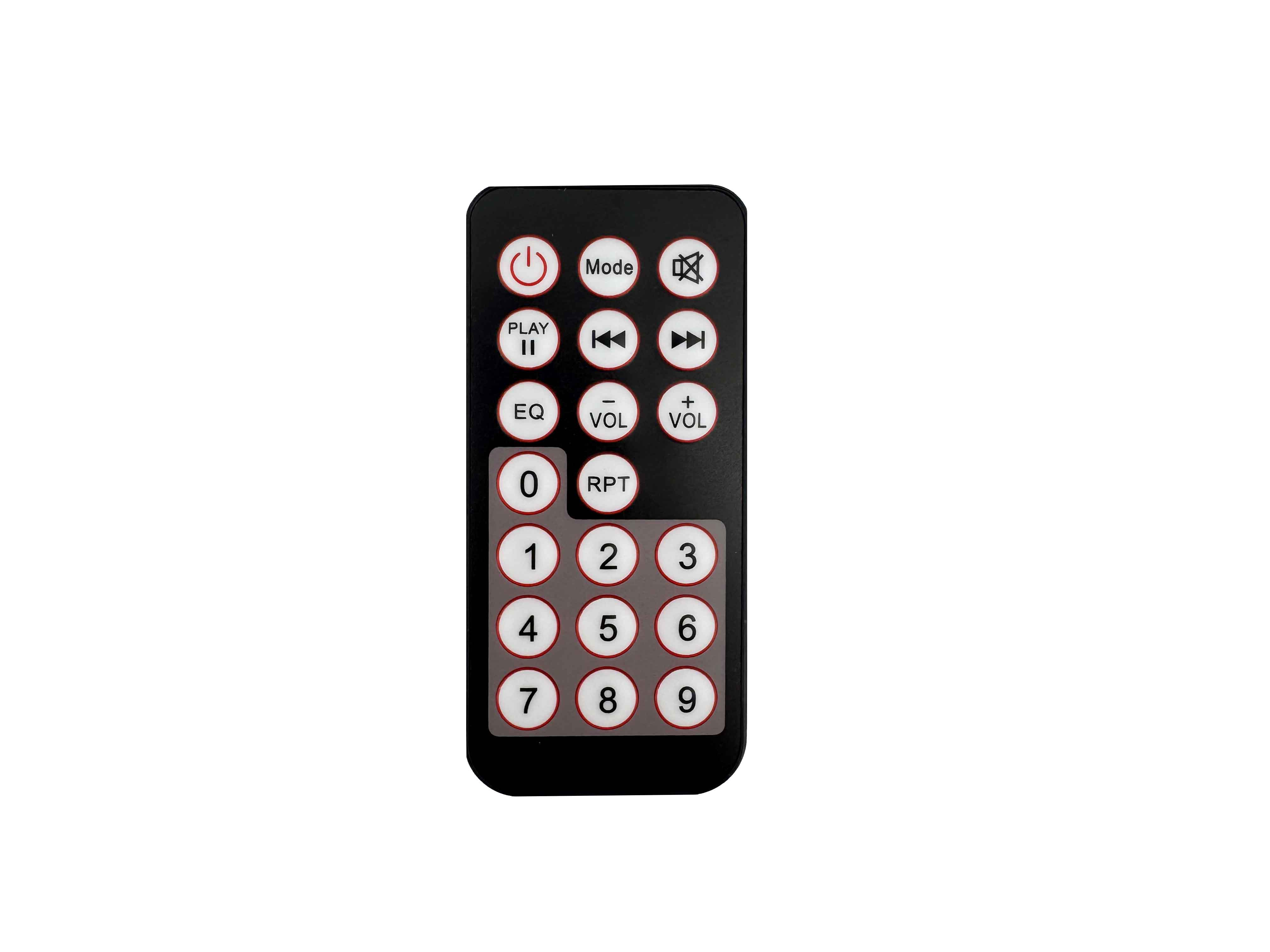

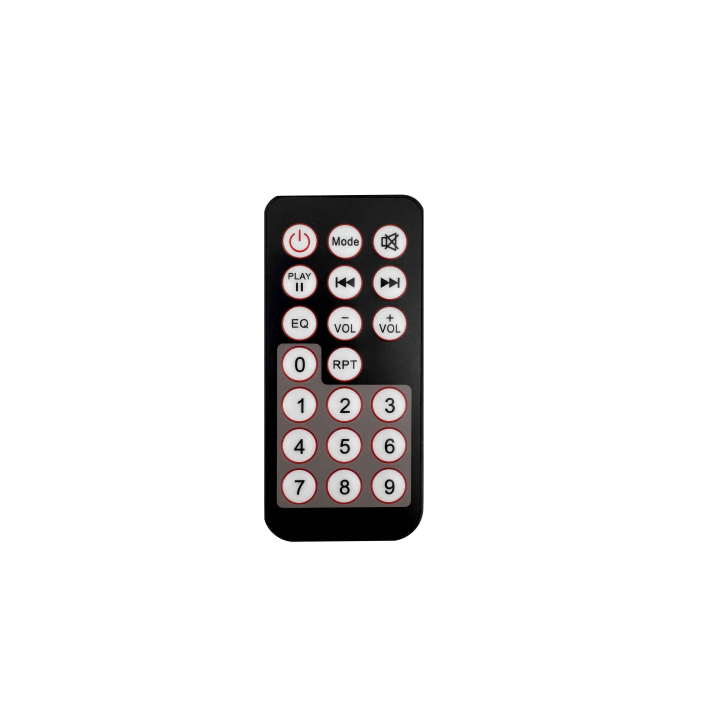

• Remote control

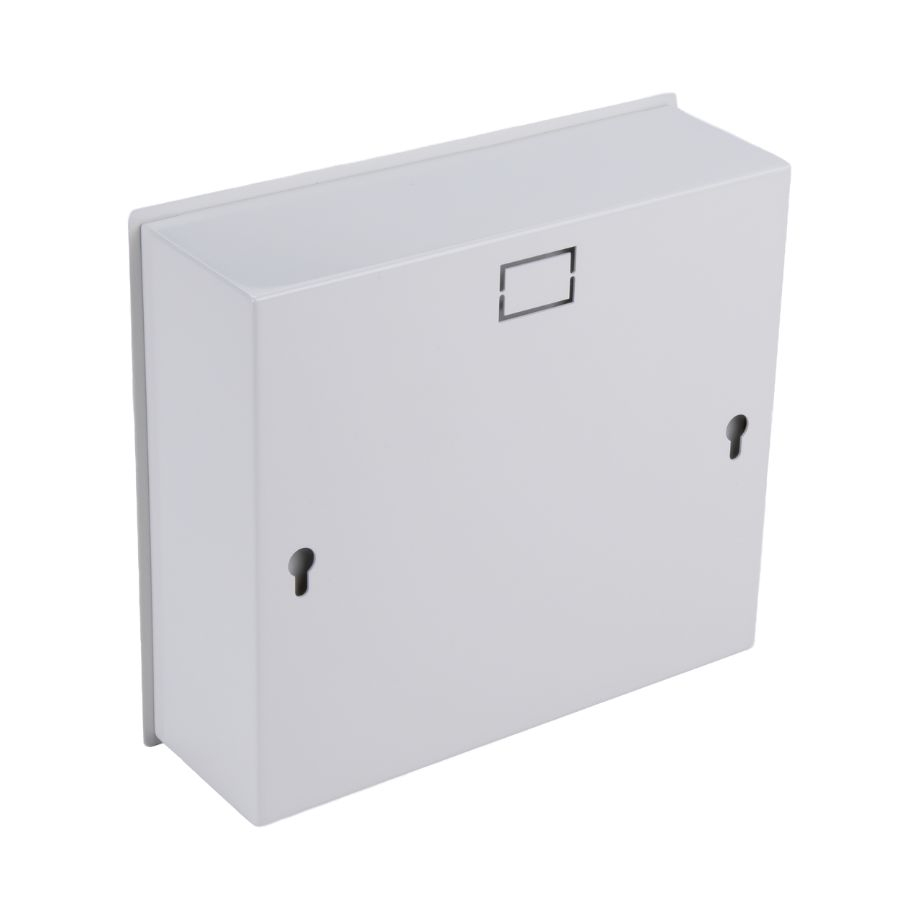

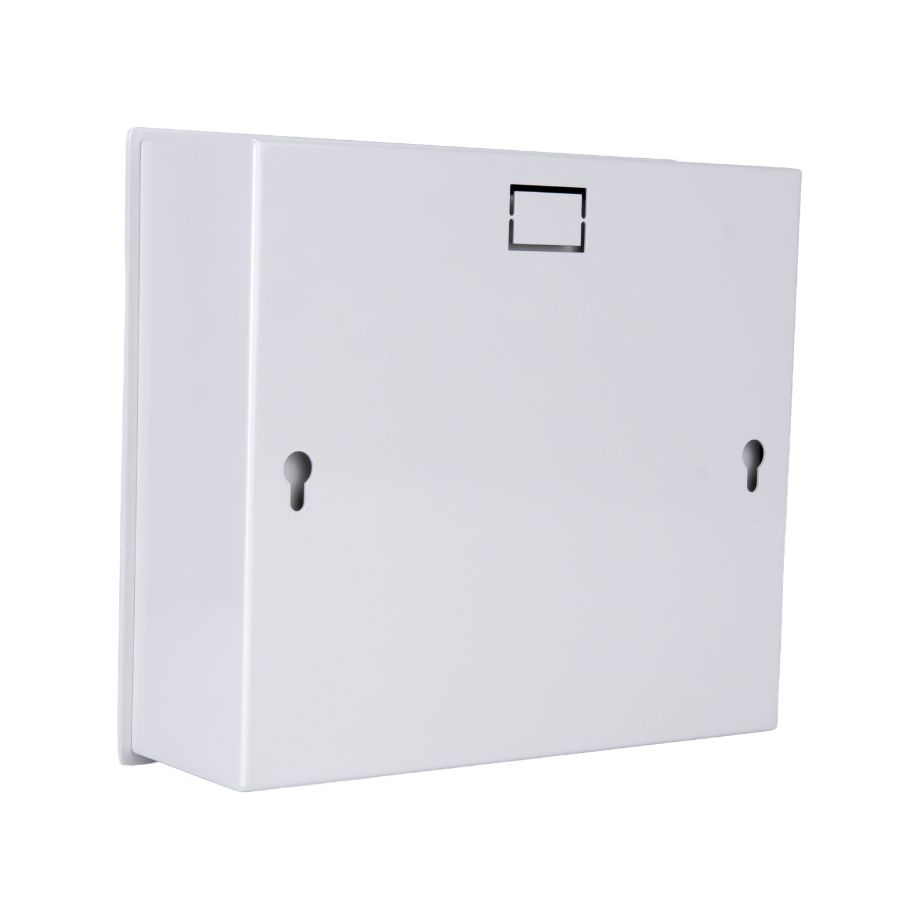

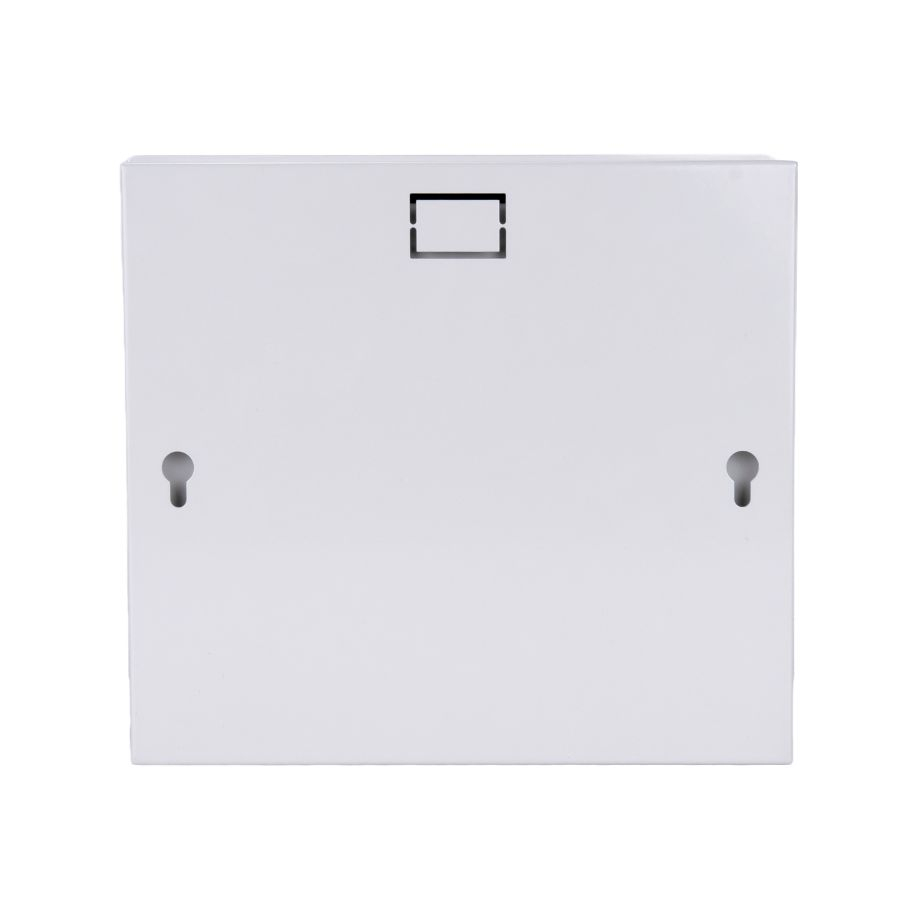

• Wall-mounted box

• External 24V DC power supply not included: PPM5 POWER SUPPLY

FEATURES	PPM-5DB
Type	Wall-mounted preamplifier
Inputs/Sensitivity	MIC: -50 dBu (2.45 mV) 5 kΩ balanced LINE: 0 dBu (775mV) 5KΩ balanced I-pods: - 10 dBu (245mV) 15KΩ unbalanced
Output level	+8 dBu (V.R MAX)
Total harmonic distortion	< 0.1%
Bandwidth (line signal)	20–20,000 Hz (±3 dB)
Signal-to-noise ratio	LOW > 75 dB LINE/AUX iPod: > 85 dB
Consumption	4,8 W
Power socket	24 V / 200 mA
Dimensions L x W x H	220 x 200 x 60 mm
Box dimensions	210 x 190 x 70 mm
Poids	2.3 kg

Type

Préamplificateur mural digital
Consommation

4.8 W
Rapport Signal / Bruit

MIC : 75 dB LINE/AUX I-pod : 85 dB
Entrées / Sensibilité

MIC : - 50 dBu (2,45 mV) 5 KΩ symétrique LINE : 0 dBu (775 mV) 5 KΩ symétrique AUX I-pod : - 10 dBu (245 mV) 15 KΩ asymétrique
Niveau de sortie audio

+8 dBu (V.R MAX)
Distorsion harmonique totale

0.1 %
Bande passante

20 – 20 000 Hz (± 3 dB)
Dimensions coffret

210 x 190 x 70 mm
Dimensions (L x P x h)

220 x 200 x 60 mm
Poids

2.3 kgs
