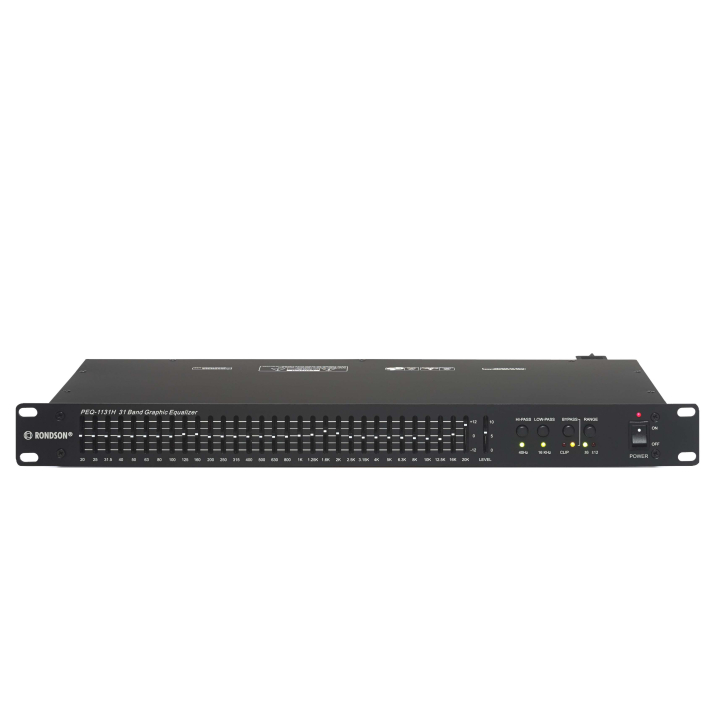

31-band, 19" mono graphic equalizer
Reference : PEQ-1131
SKU : 02157
EAN13 : 3701567903502
Description
Mono graphic equalizer 31 bands 1/3 octave each with adjustable amplitude from ± 6dB to ± 12 dB by 60 mm sliders.
High-pass and low-pass filter, by-pass function

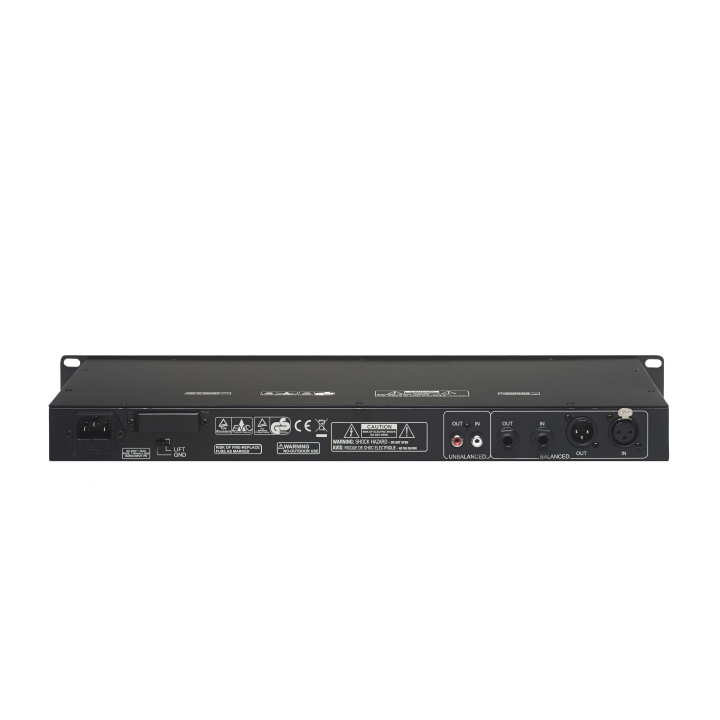

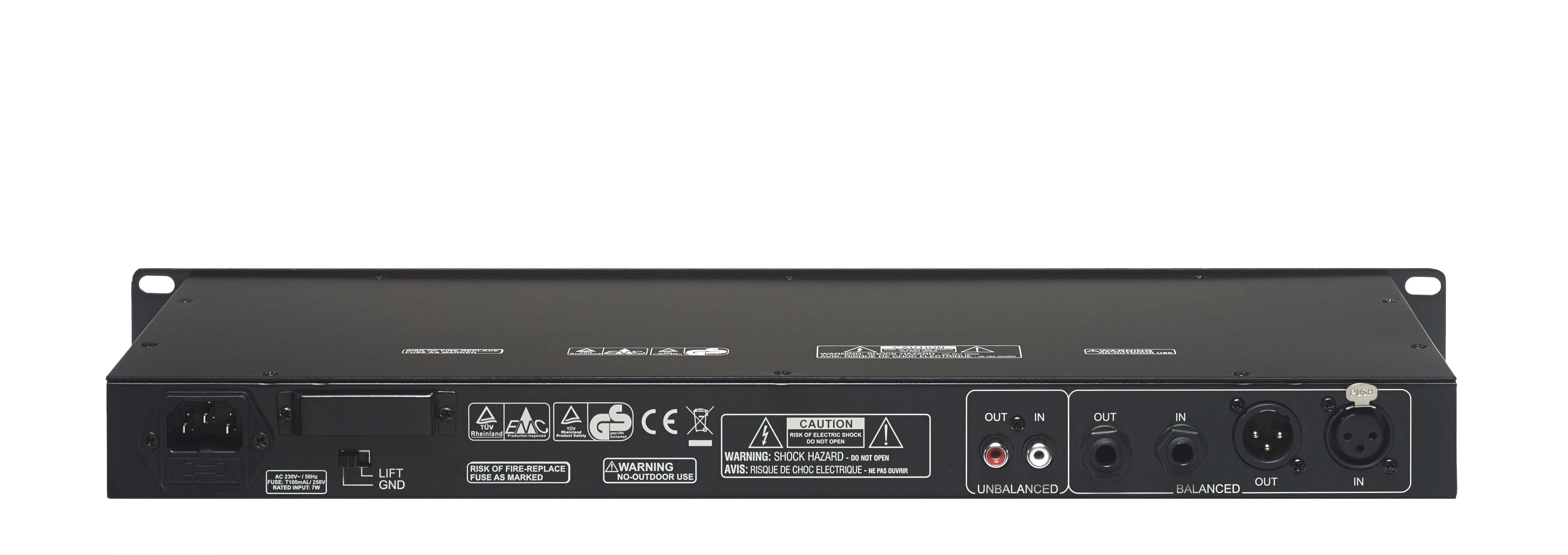

Each channel has a balanced 6.35mm jack and XLR and unbalanced RCA input and output.
Peak level display per band
Earth switch
Automatic bypass function when the power is switched off
Product Details
-
Brand
-
ReferencePEQ-1131
-
SKU02157
-
EAN133701567903502
Data sheet
-
Input impedance2,2 kΩ (mic/ligne), 10 kΩ (AUX)
-
Output impedance600 Ω
-
Power consumption15 W (MAX.)
-
Signal-to-noise ratio93 dB - 1KHz
-
AlimentationAC 100-120V ou 200-240V / 50-60 Hz
-
Distorsion harmonique totale0,2%
-
Bande passante20 Hz - 50000 Hz
-
FiltrePasse haut : 40 Hz (12dB/oct) Passe bas : 16 kHz (12dB/oct)
-
Dimensions (W × D × H)483 x 200 x 44 mm (1U)
-
Weight3 kg
-
CurseurCourse de 20 mm à point milieu
-
AmplitudeCommutable de ± 6 dB à ± 12 dB
-
Entrées et SortiesSymétriques : jack 6,35 mm et XLR Asymétriques : RCA
-
Niveau d’entrée Max+ 18dBV
-
Niveau de sortie Max+ 16dBV
