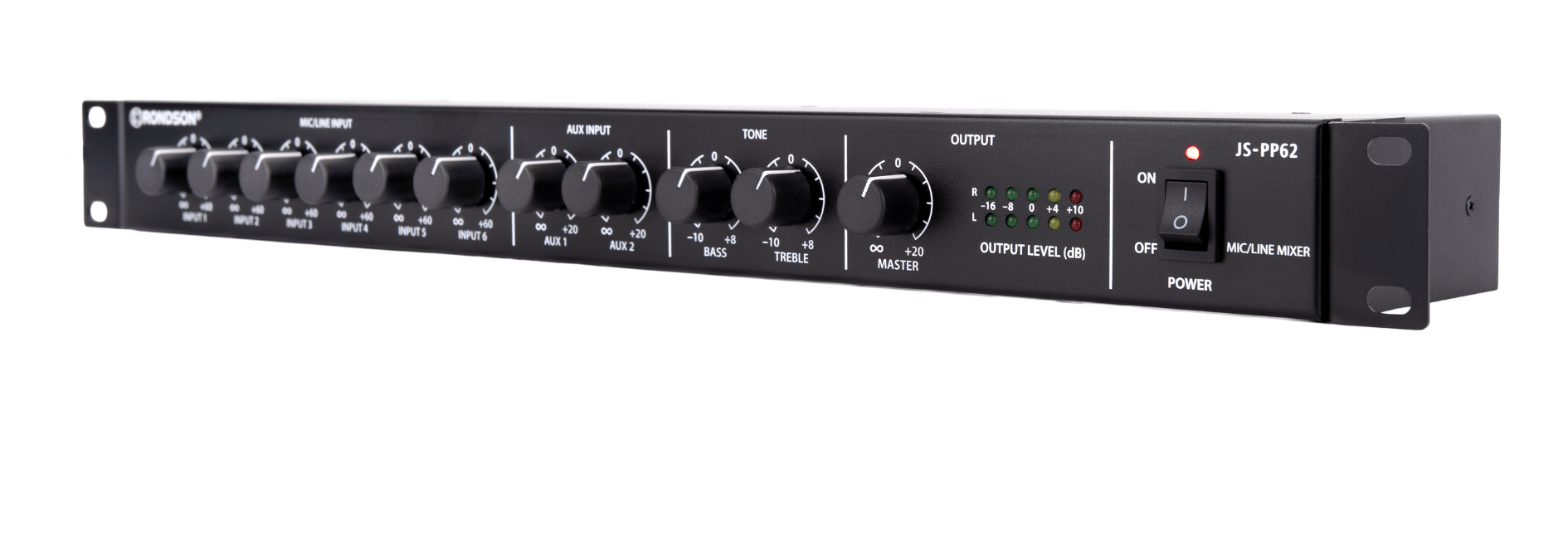

Mixer Preamplifier 8 Mic/Line inputs

Name: Mixer Preamplifier 8 Mic/Line inputs
Brand: RONDSON
SKU: JS-PP62

Reference : JS-PP62

SKU : 02910

EAN13 : 3701567913914

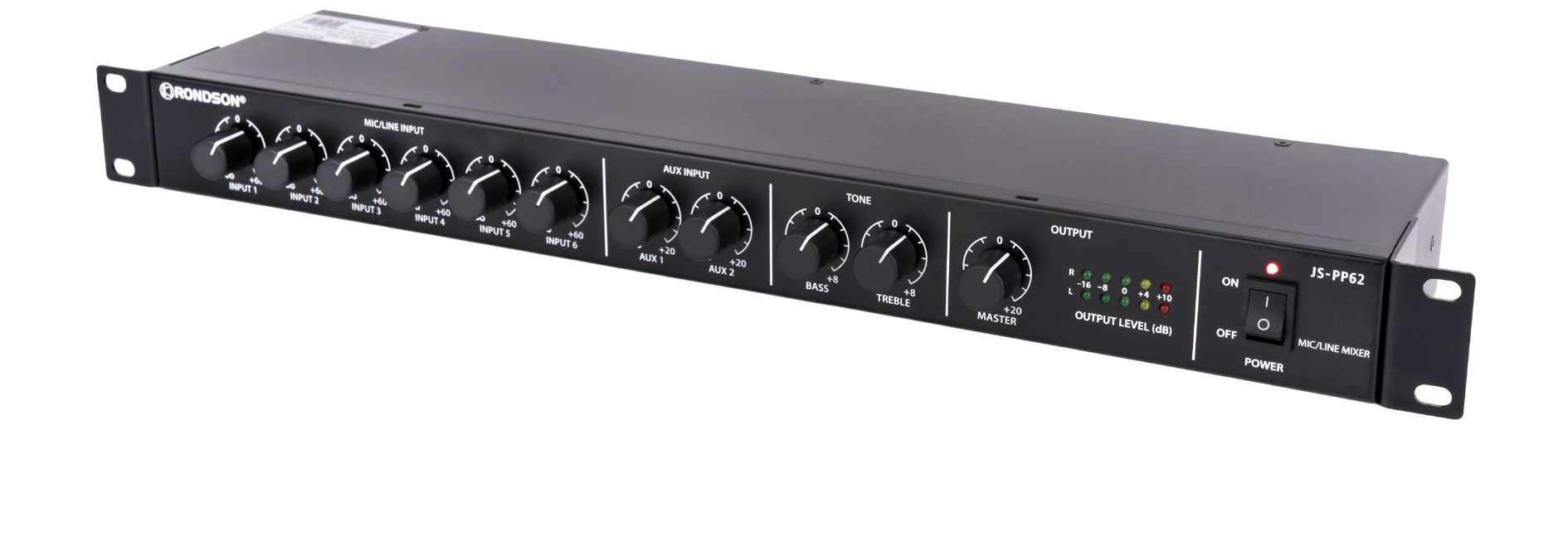

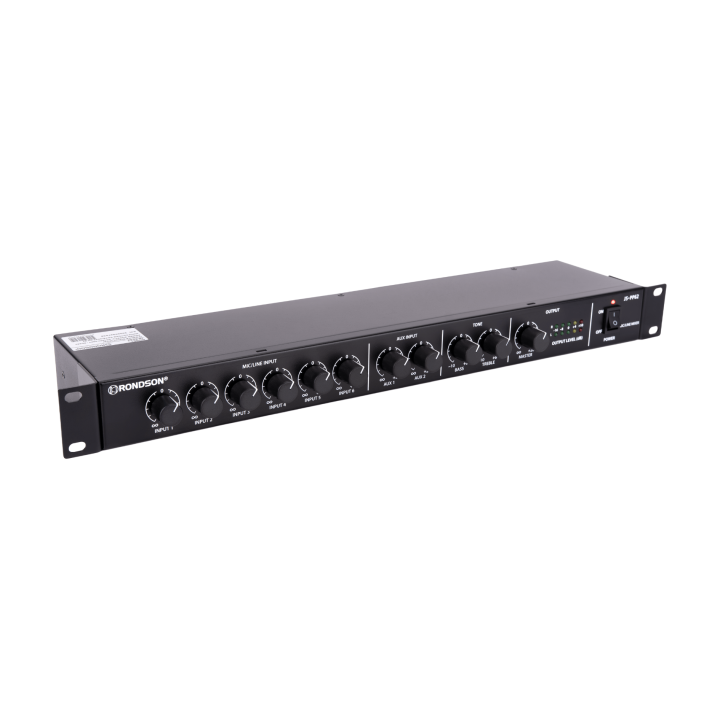

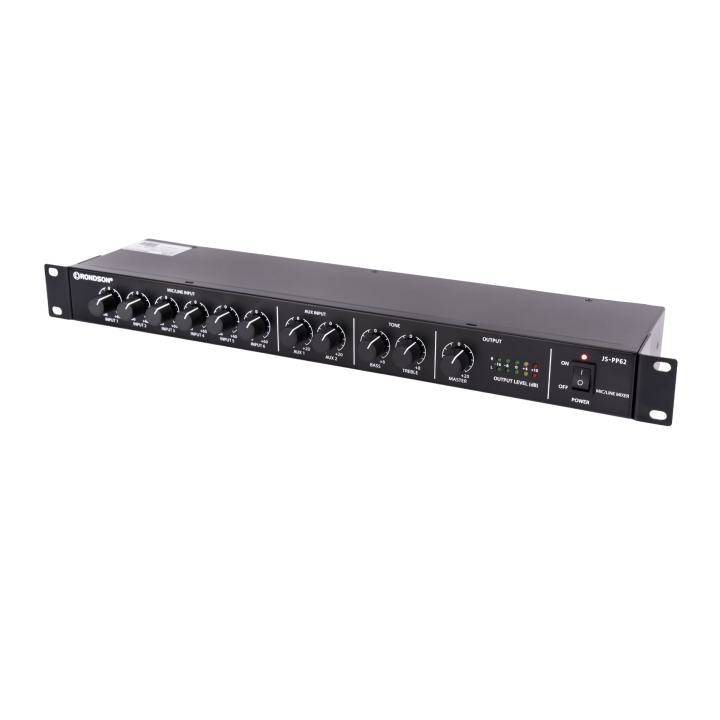

8-input mixer preamplifier

mono and stereo

JS-PP62 user manual EN -FR

JS-PP62

Description

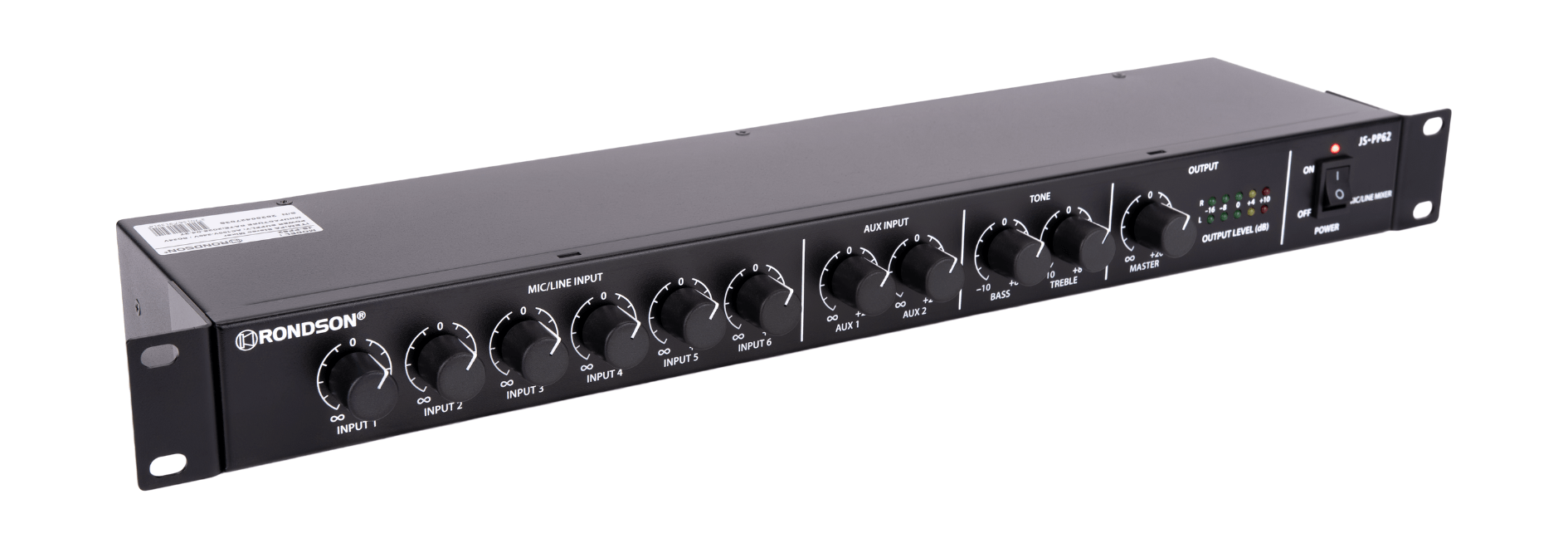

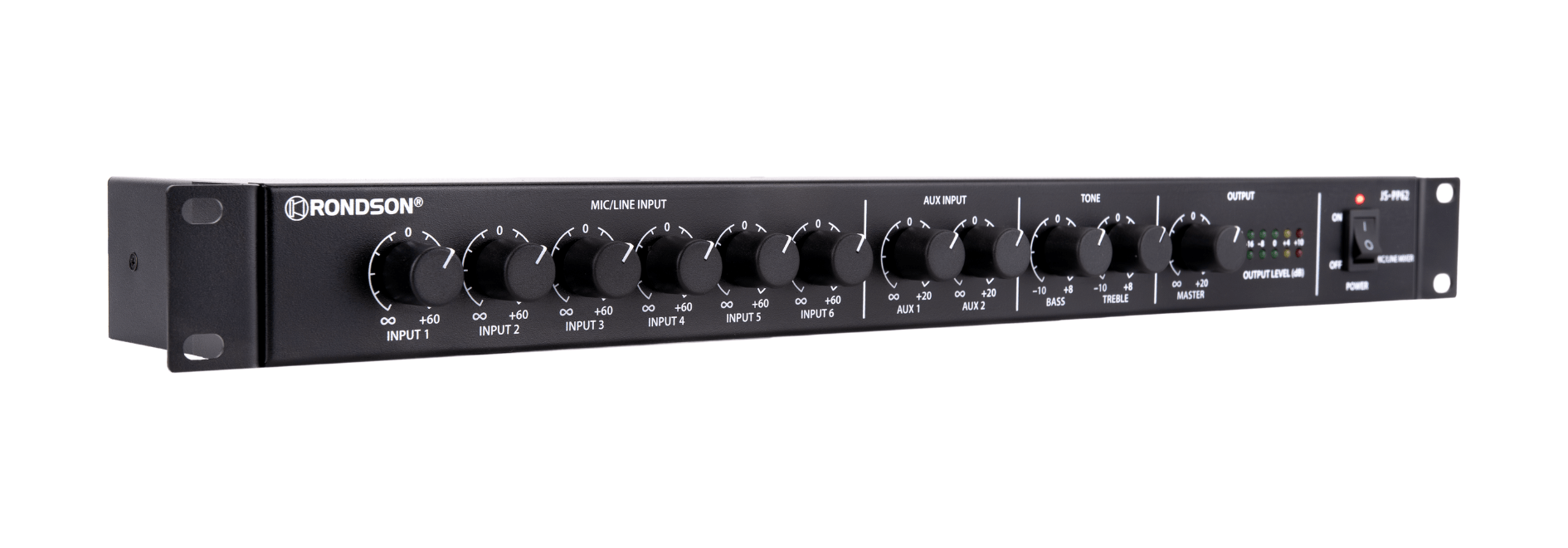

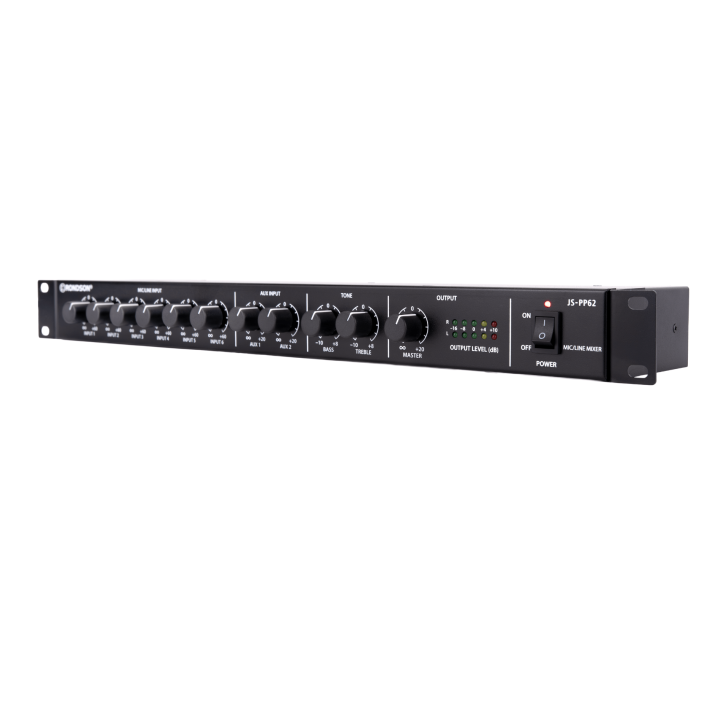

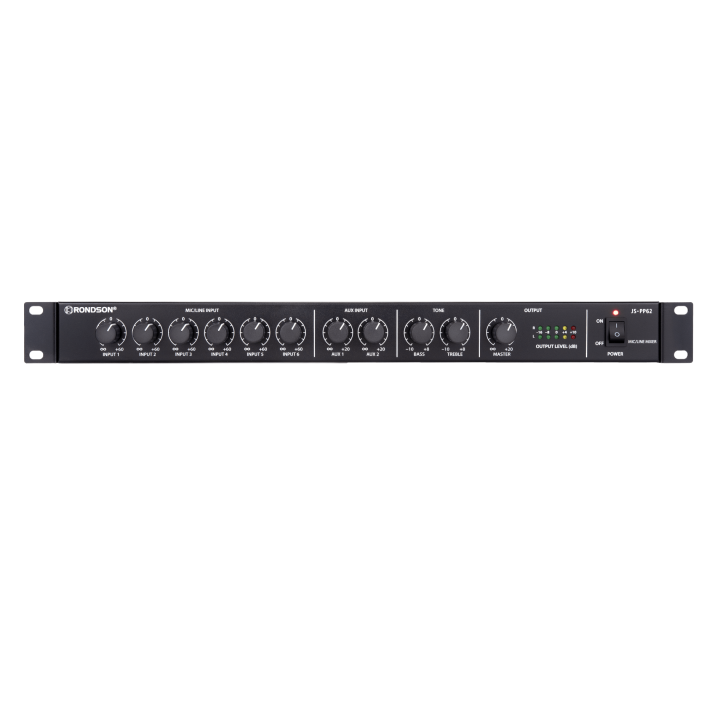

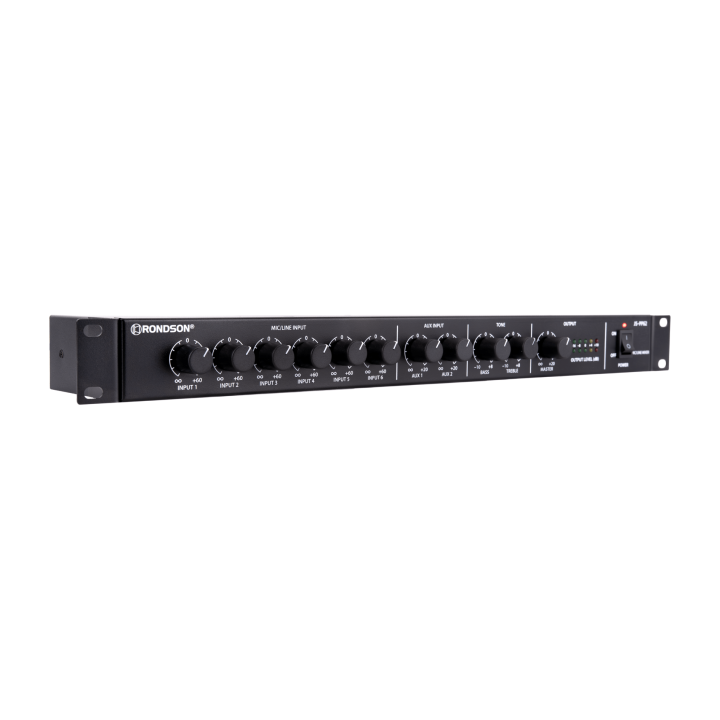

The mixer preamplifier offers 8 inputs for professional mono and stereo use. It operates on 230V mains or 24V DC power.

Product Data Sheet (PDF):
Download JS-PP62 product sheet in PDF

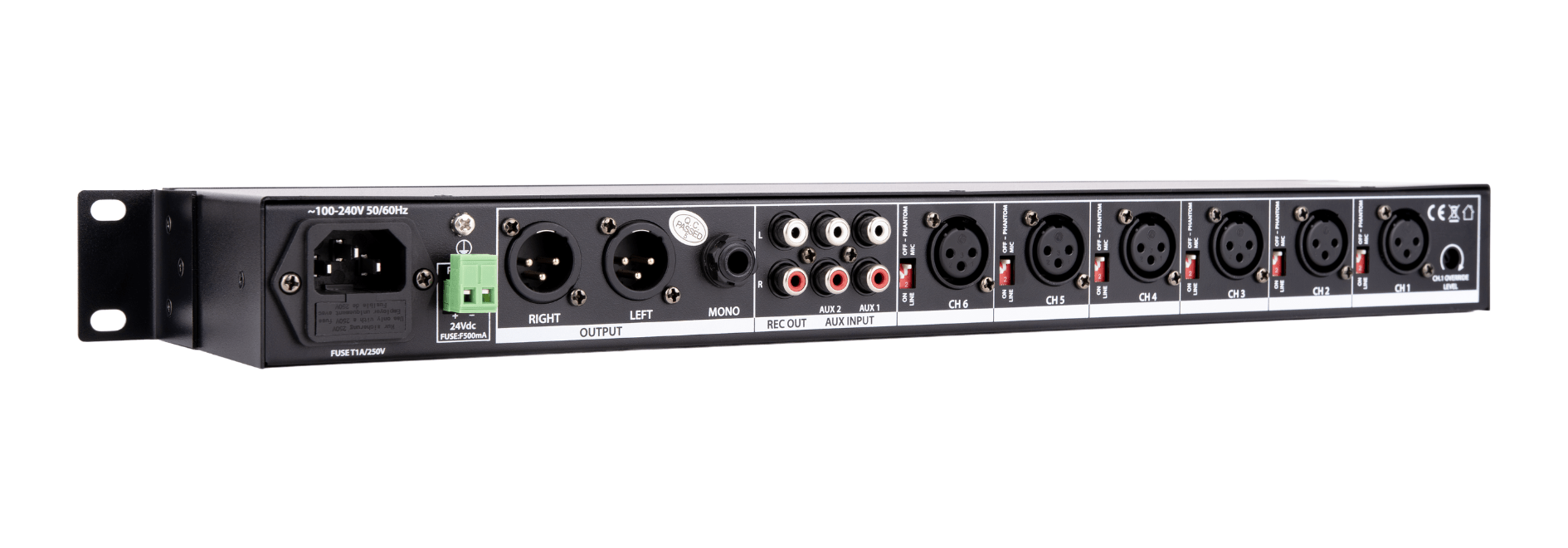

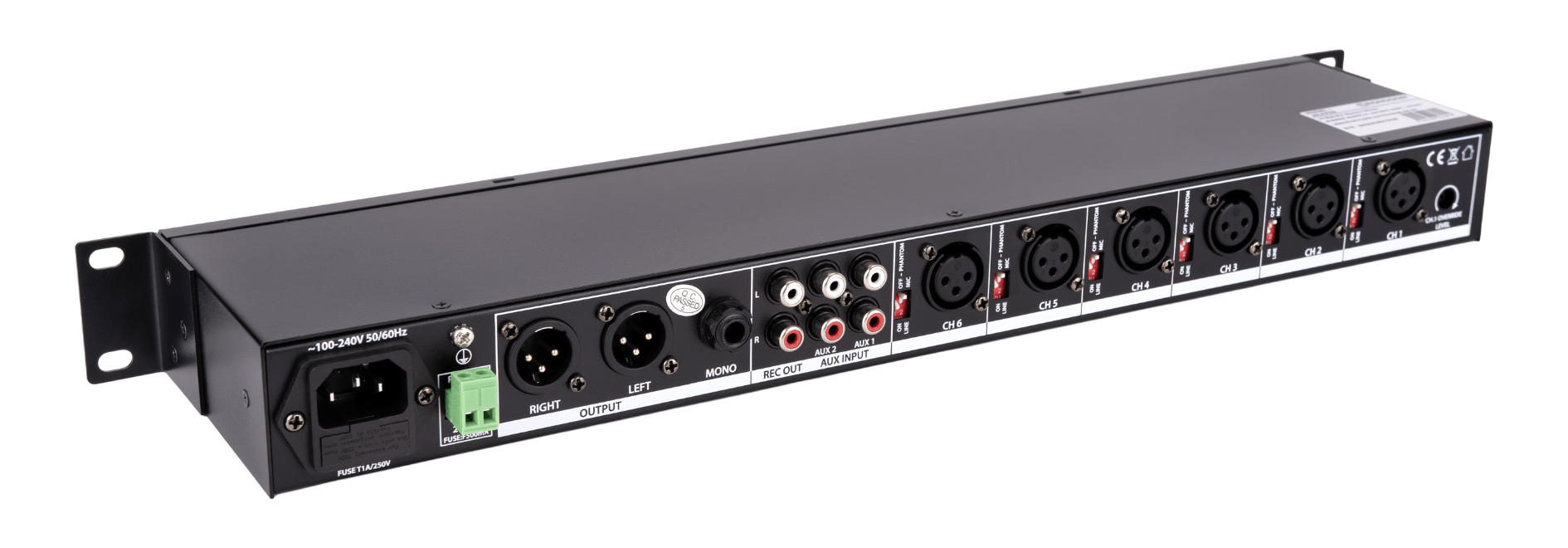

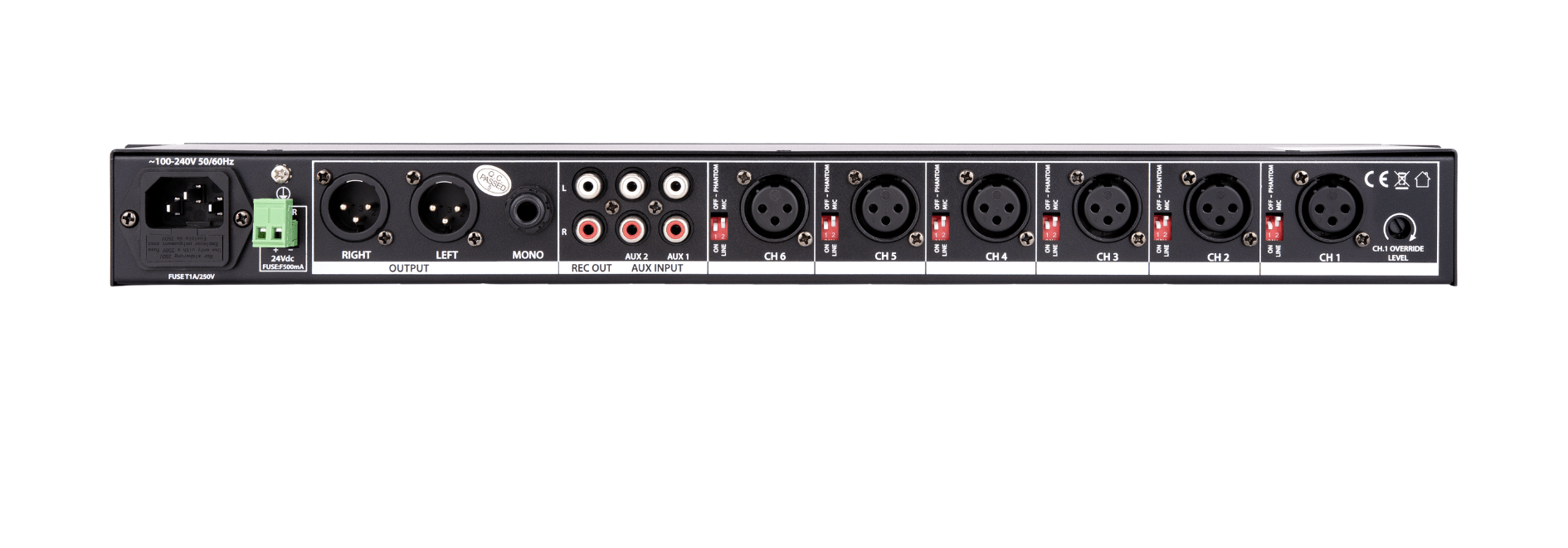

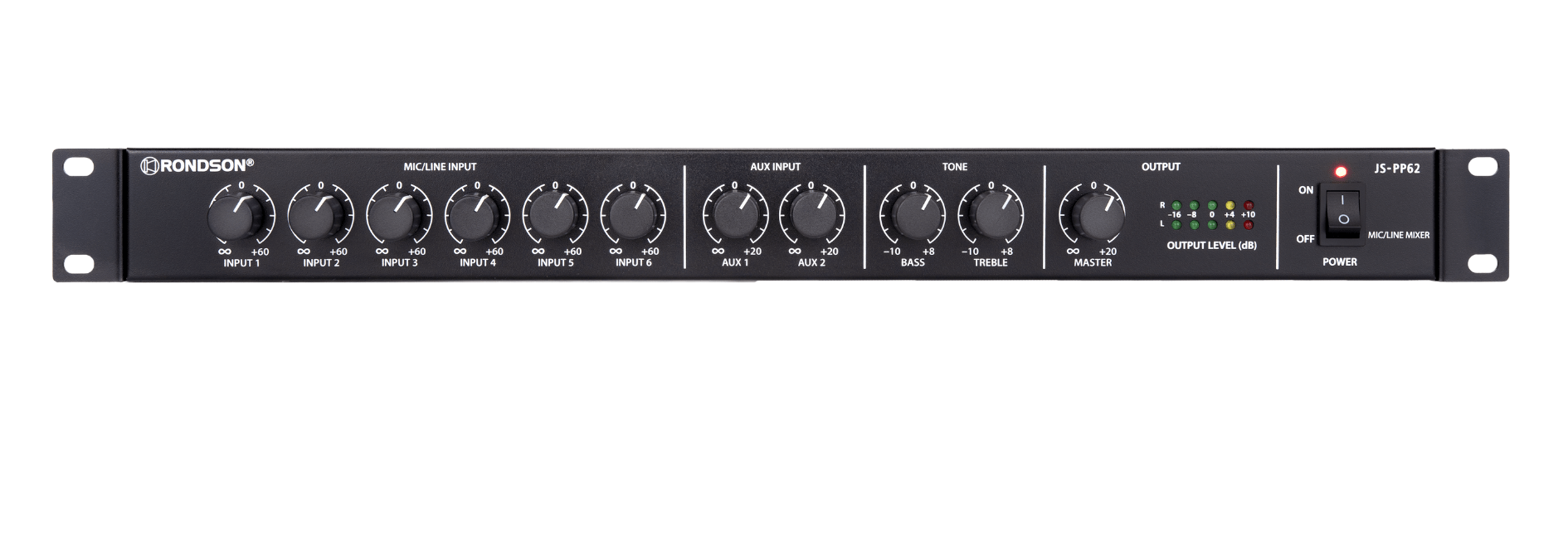

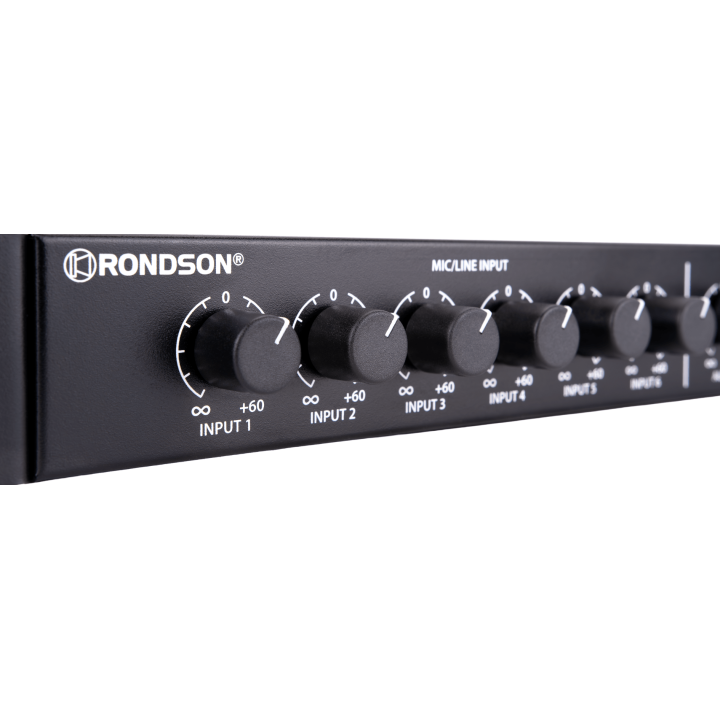

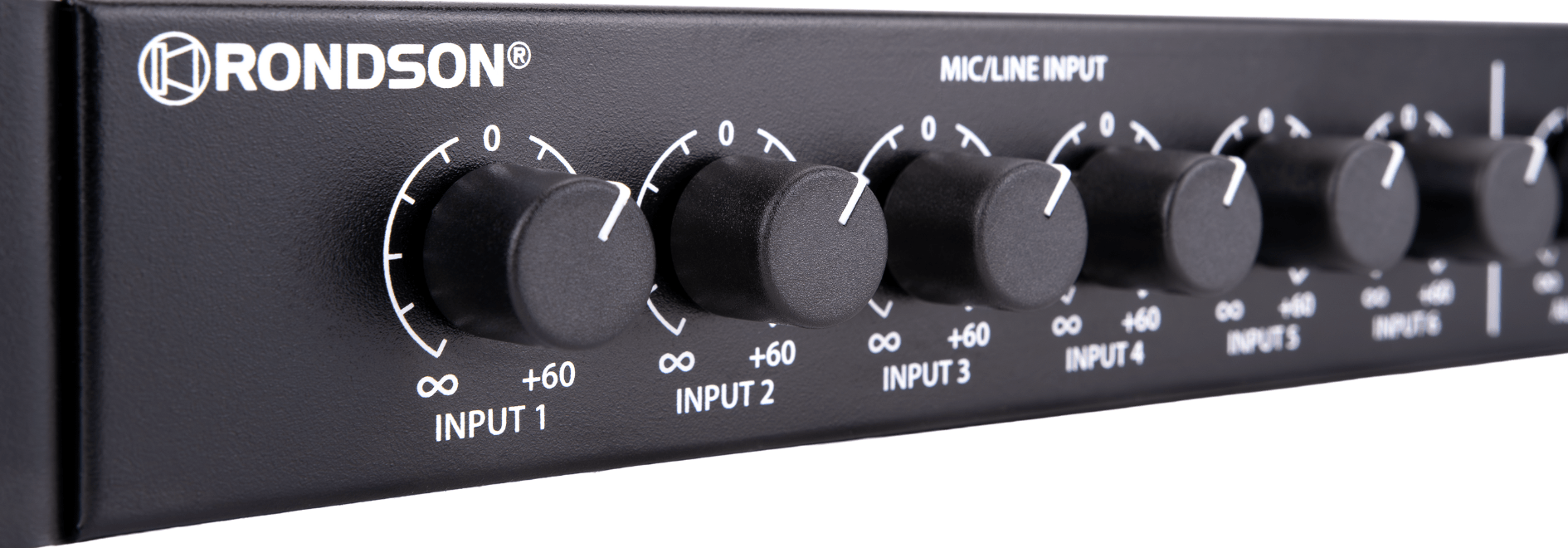

8 universal inputs on combo XLR & 6.35 mm JACK, MIC/LINE and adjustable phantom power
Priority function on input 1 with potentiometer-adjustable attenuation

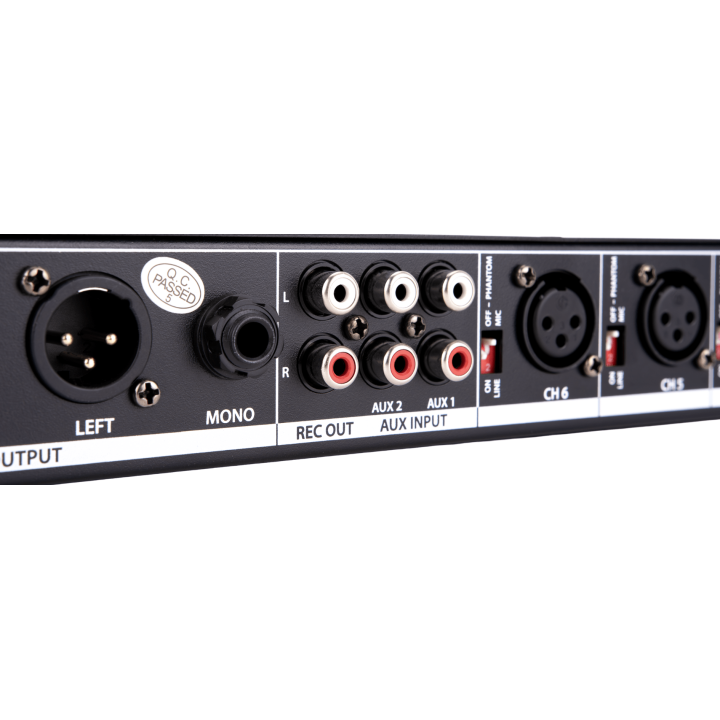

3 RCA stereo inputs

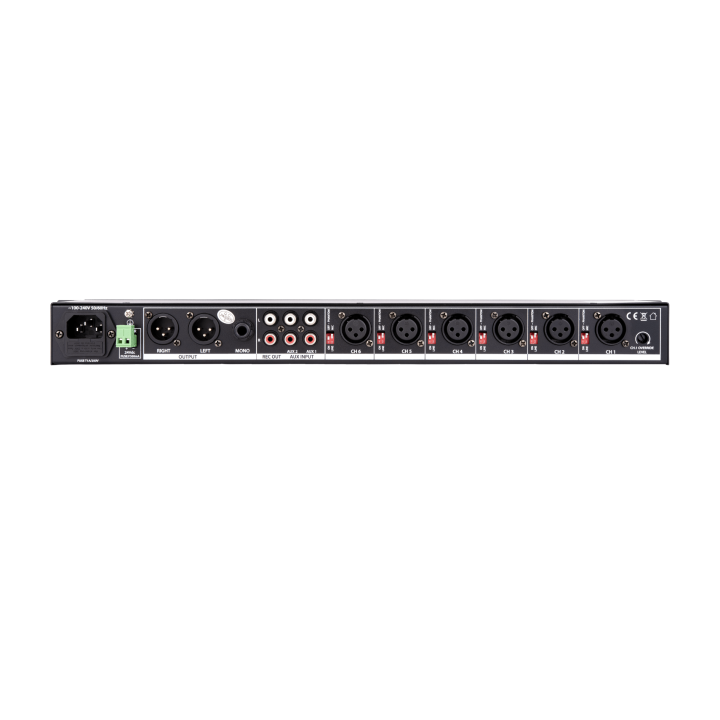

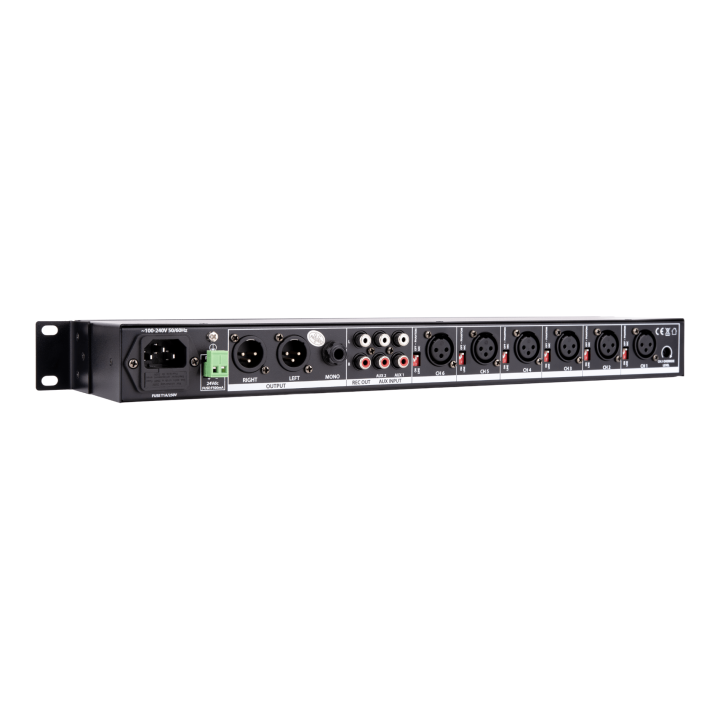

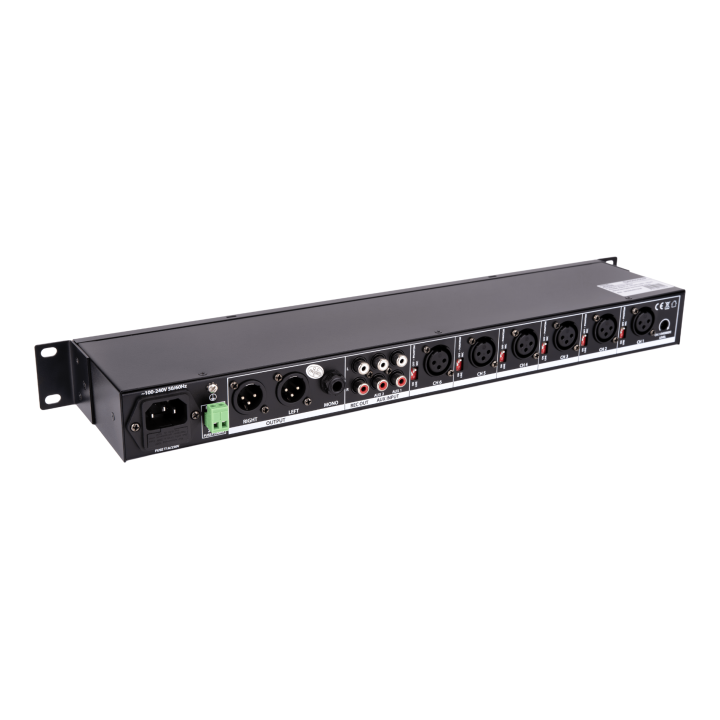

1 stereo LINE OUT XLR + 1 mono 6.35 mm JACK output with volume control
1 MIC OUT 6.35 mm JACK to monitor output signals from mics 1 to 6
6.35 mm JACK recording output
3-band equalizer
4 level indicator LEDs
Dimensions (W x D x H): 482 x 130 x 44 mm (1 U)
Weight: 1.43 kg

Technical Specifications — JS-PP62
Specifications	JS-PP62
Type	8-channel preamplifier
Fuse	T1AL 250V (mains) or F500mA (24Vdc)
Microphone inputs	6 x balanced XLR
Auxiliary inputs	2 x stereo RCA (L+R)
Outputs	Stereo XLR (L+R) Unbalanced mono 6.3 mm jack Stereo RCA (L+R REC)
Phantom power	+20 V
Total harmonic distortion	0.05 %
Input impedance	3.3 kΩ (mic/line), 10 kΩ (AUX)
Frequency response	Mic: 20 Hz – 18 kHz Line: 14 Hz – 20 kHz AUX: 10 Hz – 23 kHz
Input sensitivity	Mic: -45 dBV Aux/line: -10 dBV
Signal-to-noise ratio (SNR)	Mic: 55 dB Aux/line: 60 dB
Power supply	100–240Vac, 50/60Hz (IEC) or 24Vdc
Dimensions (W x D x H)	482 x 130 x 44 mm
Weight	1.43 kg

Type

Préamplificateur 8 canaux
Impédance

3,3 kΩ (mic/ligne), 10 kΩ (AUX)
Entée mic

6 x XLR symétriques
Entrée AUX

2 x RCA stéréo (L+R)
Rapport Signal / Bruit

Micro : 55 dB Aux/ligne : 60 dB
Entrées / Sensibilité

Micro : -45 dBV Aux/ligne : -10 dBV
Fusible

T1AL 250V (secteur) ou F500mA (24Vdc)
Sortie

Gauche + Droite jack 6,3 mm
Alimentation

100–240Vac, 50/60Hz (IEC) ou 24Vdc
Alimentation fantôme

+20 V
Distorsion harmonique totale

0.05 %
Réponse en fréquence

Micro : 20 Hz – 18 kHz Ligne : 14 Hz – 20 kHz AUX : 10 Hz – 23 kHz
Dimensions (L x P x h)

482 x 130 x 44 mm
Poids

1.43 kgs
