Wall preamplifier 5 inputs
Reference : PPM-5
SKU : 02094
EAN13 : 3701567903168
Description

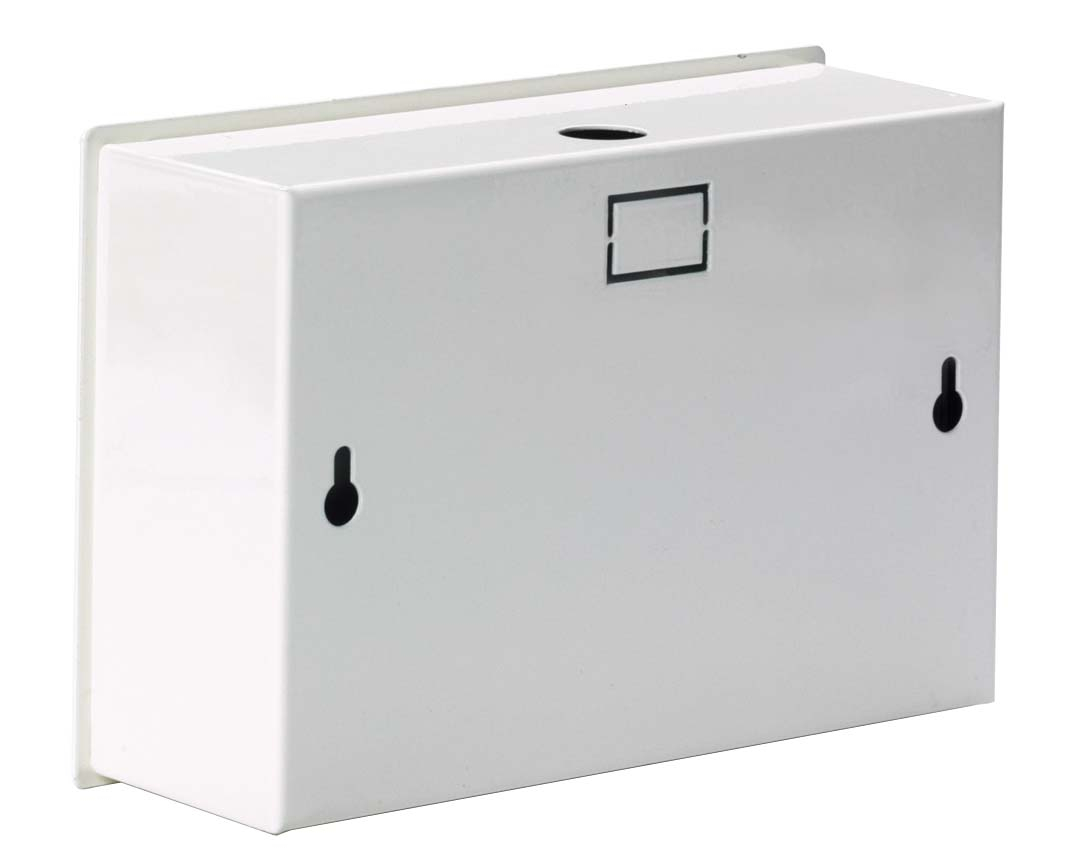

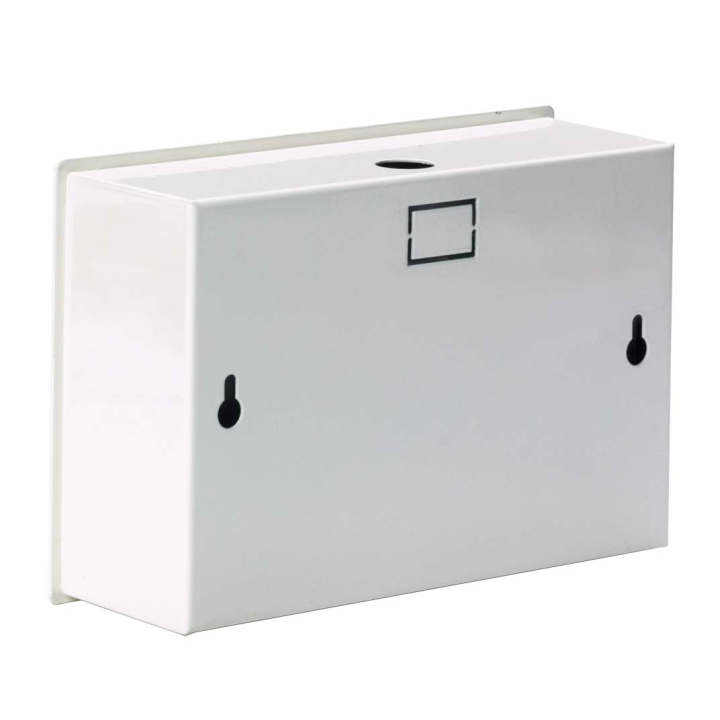

Wall-mounted preamplifier for indoor use, e.g. in gyms, multipurpose halls, etc.
Features
It is equipped with:
2 MIC/LINE XLR inputs
2 RCA AUX inputs
1 iPod input
Inter ON/OFF
External 24V DC power supply (optional accessory) PPM5 POWER SUPPLY
Product Details
-
Brand
-
ReferencePPM-5
-
SKU02094
-
EAN133701567903168
Data sheet
-
TypeWall-mounted preamplifier
-
Power consumption4.8 W
-
Signal-to-noise ratioMIC 75 dB LINE/AUX : 85 dB
-
Audio output level+8 dBu (V.R MAX)
-
Alimentation24 V / 200 mA
-
Distorsion harmonique totale0.1 %
-
Bande passante20 Hz - 20 000 Hz (± 3 dB)
-
Entrées / SensibilitéMIC : - 50 dBu (2,45 mV) 5 KΩ symétrique LINE : 0 dBu (775 mV) 5 KΩ symétrique AUX I-pod : - 10 dBu (245 mV) 15 KΩ asymétrique
-
Dimensions (W × D × H)202 x 156 x 51 mm
-
Weight1,33 kg
