HP Line Controller

Name: HP Line Controller
Brand: JD-MEDIA
SKU: SC-216E

Reference : SC-216E

SKU : 02274

EAN13 : 8809267793265

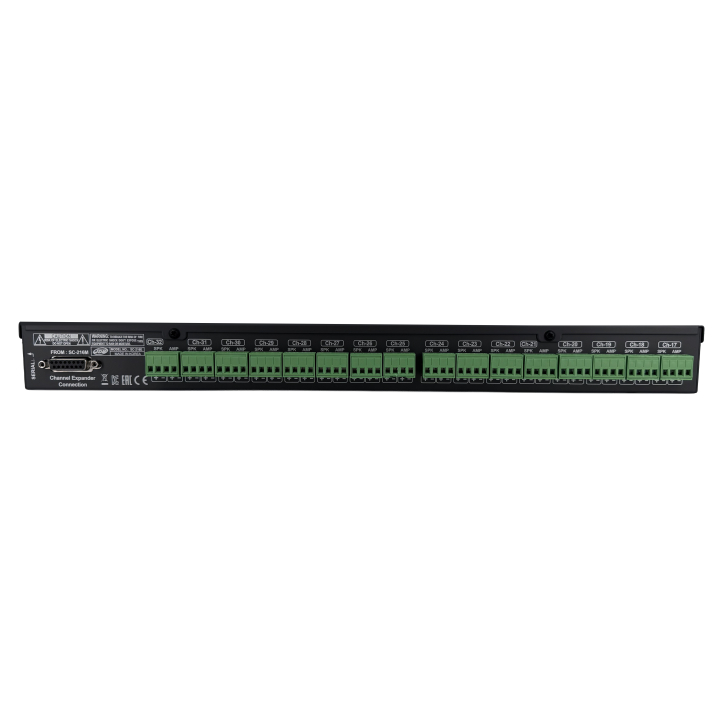

16 Line Loudspeaker Controller with Fault Detection

HP Line Controller: Fault / Impedance / Overload / Short Circuit

Zones

Description

Description:

1) 230V AC power supply

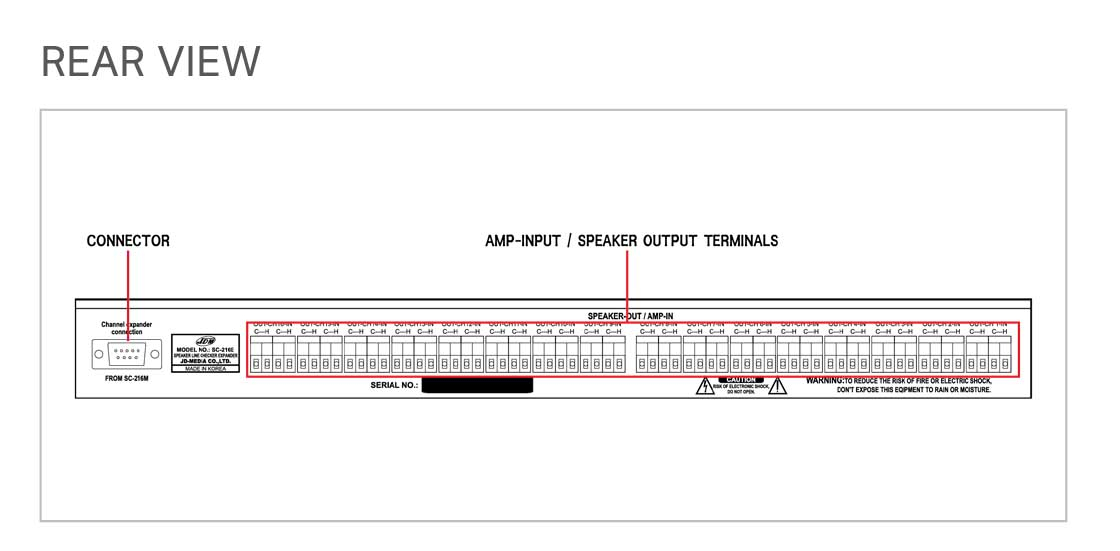

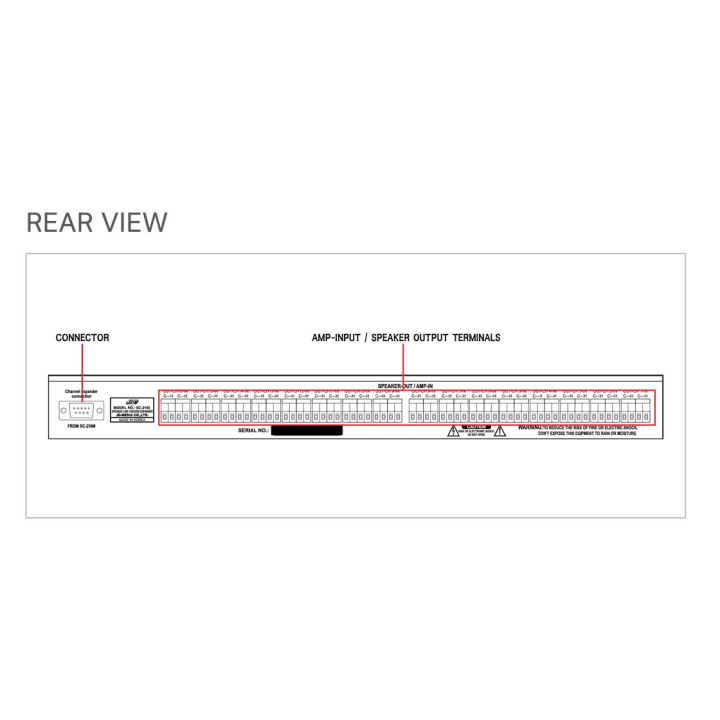

2) Extension connector
3) DC 24V power supply
4) External connection switch
5) External input/output terminal block

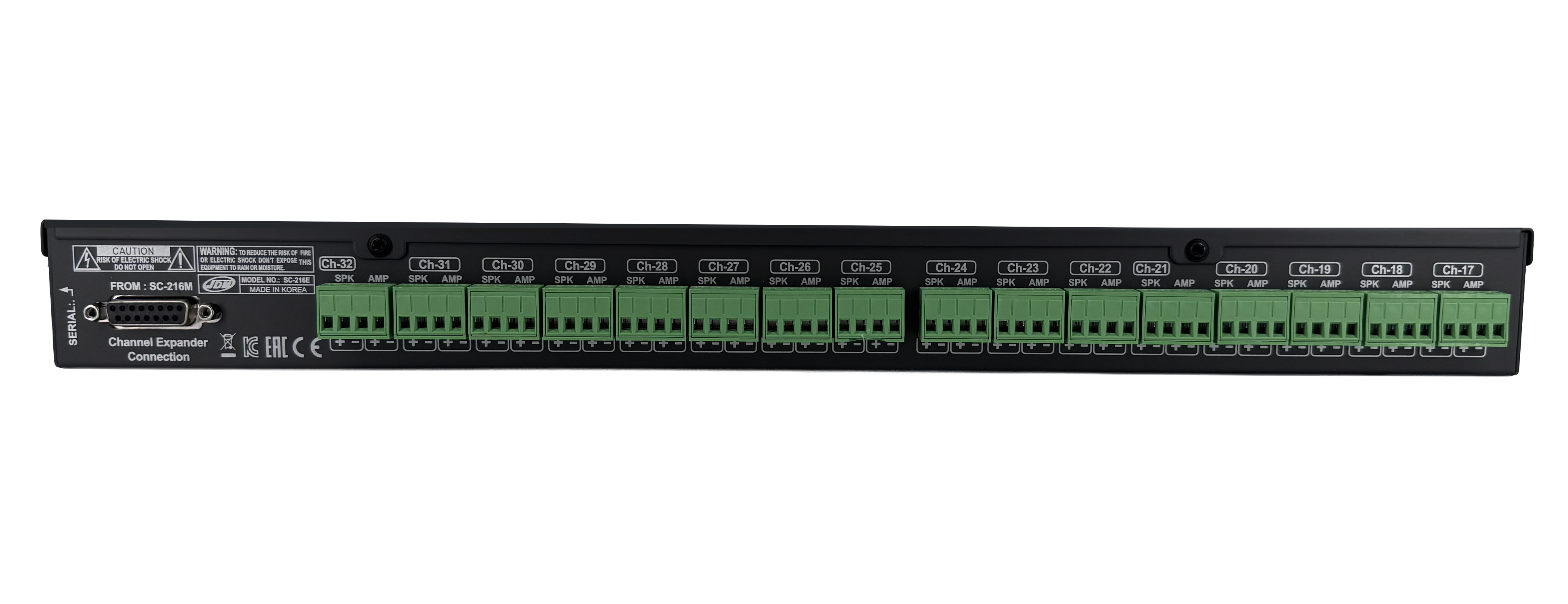

6) Amplifier input and HP output terminal

Features:

Equipped with :

- Ground fault detection
- Loudspeaker impedance line control
- Speaker open line control
- Loudspeaker load check line control
- Loudspeaker load check under line control
- Programmable automatic line check in 1-minute and 24-hour intervals
- Double-spaced liquid-backlit crystal display with clear text output
- Interrupt to check if emergency announcement is in place
- Bridging of existing volume control with built-in relay during control
- Admissible speaker line check 100V / 70V
- Warning sound and lamp when speaker line fault occurs
- 24V AC and DC operation
- Standard desktop and 19" rack height

CARACTÉRISTIQUES	SC-216E
Type	Contrôleur de Ligne Haut-parleur
Range	20 - 1600 ohm
Check time	Moins de 100msec / Canal
Power consumption	23W
Signal input	16 Canaux
Signal output	16 Canaux
Output check	1 Canaux
Output fault	1 Canal
Power failure output	1 Canal
Start check input	1 Canal
Operation notification	1 Canal
Resolution ADC	10 bit / 1024 Step
LDC	16 caractères / 4 lignes
Power supply	AC 230V / 50 Hz / DC 24 V
Dimensions (WxDxH)	483 x 350 x 88 mm (2U)
Weight	5 kg
