PPMS trigger control box

Name: PPMS trigger control box
Brand: RONDSON
SKU: BP4-PPMS

Reference : BP4-PPMS

SKU : 02383

EAN13 : 3701567909122

ppms control unit for managing remote alerts

4 control buttons

Types d'applications

PPMS/POMSE

Cablage BP4-PPMS vers SONOVAC

Download (239.79KB)

Cablage BP4-PPMS vers DMT-100-2

Download (234.04KB)

Cablage BP4-PPMS vers DMT-8M

Download (247.21KB)

Description

SEE OUR PPMS DOCUMENTATION

Description :

Control units for managing remote alarms.
They are generally used for PPMS (Plan Particulier de Mise en Sûreté) installations, particularly when schools are being brought up to standard.
Messages are broadcast by our range of digital message readers with dry contact triggers.
including DMT-100-2, DMT-PPMS and DMT-8M. Also compatible with other message readers.
Desktop installation.

Features :

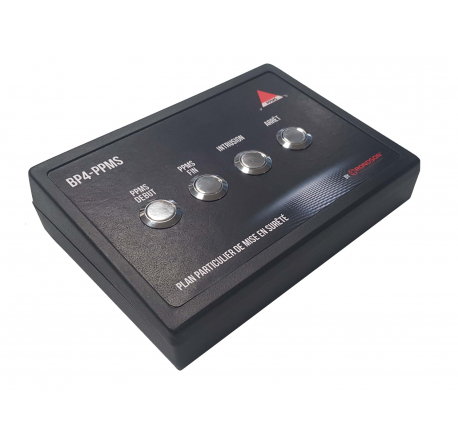

The BP4-PPMS box is equipped with :

- A PPMS START button
- A PPMS END button
- An INTRUSION button
- An OFF button to stop broadcasting messages.
- Options : The number of buttons can be modified on request depending on the installation.

Type : Control box for alert management

Buttons: 4

Material: Black ABS

Connection: Screw terminal block

Dimensions mm : (W x D x H) : 185 x 135 x 50

Weight : 0,14 Kg
