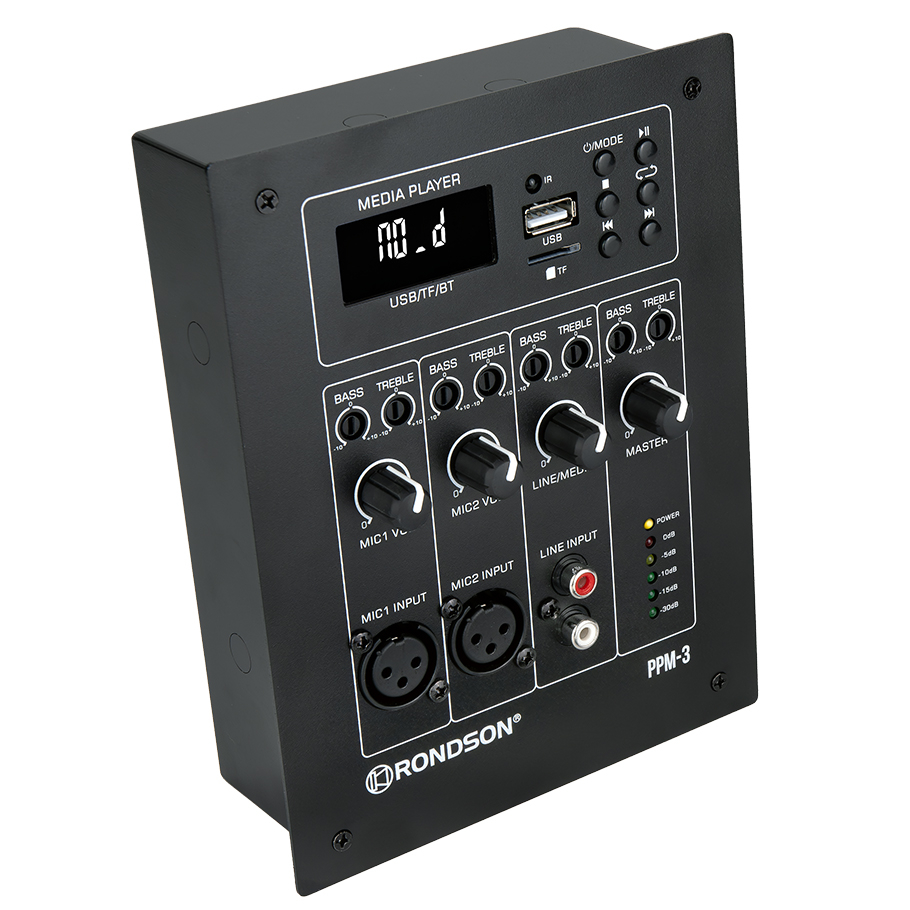

3-input wall preamplifier with SD/USB reader and Bluetooth

Name: 3-input wall preamplifier with SD/USB reader and Bluetooth
Brand: RONDSON
SKU: PPM-3

Reference : PPM-3

SKU : 02933

EAN13 : 3701567914126

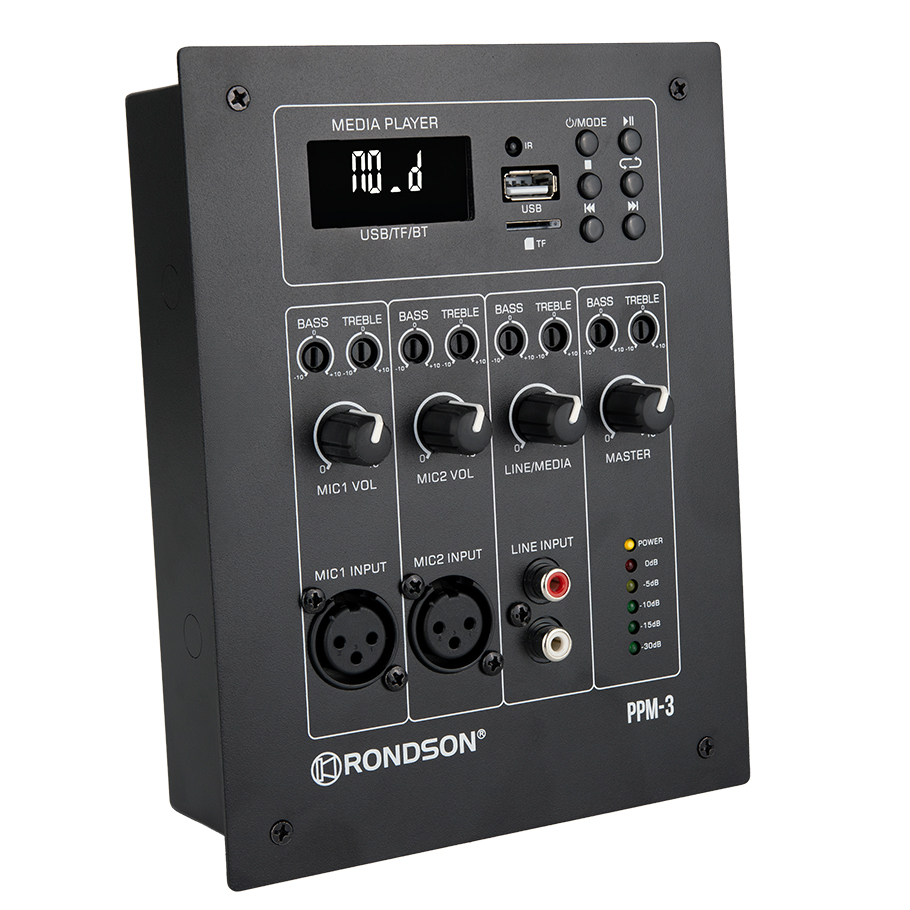

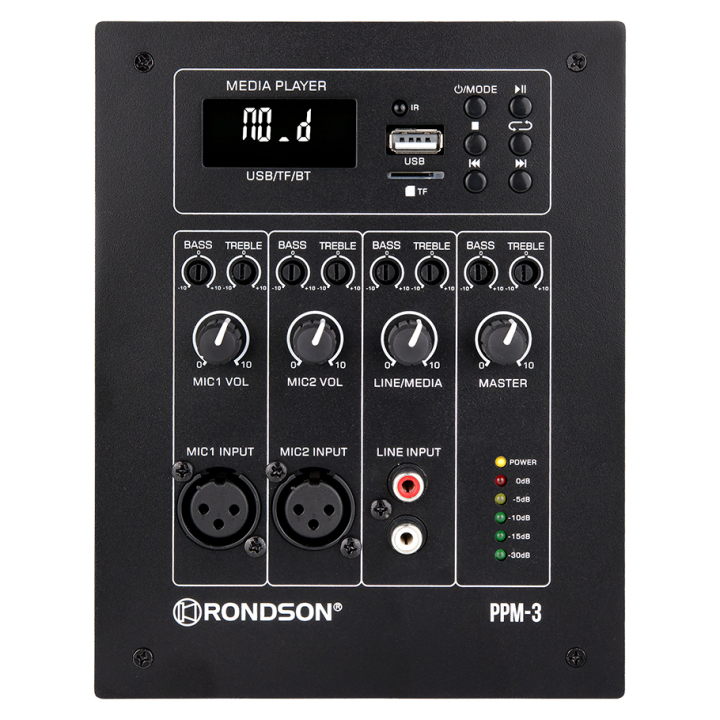

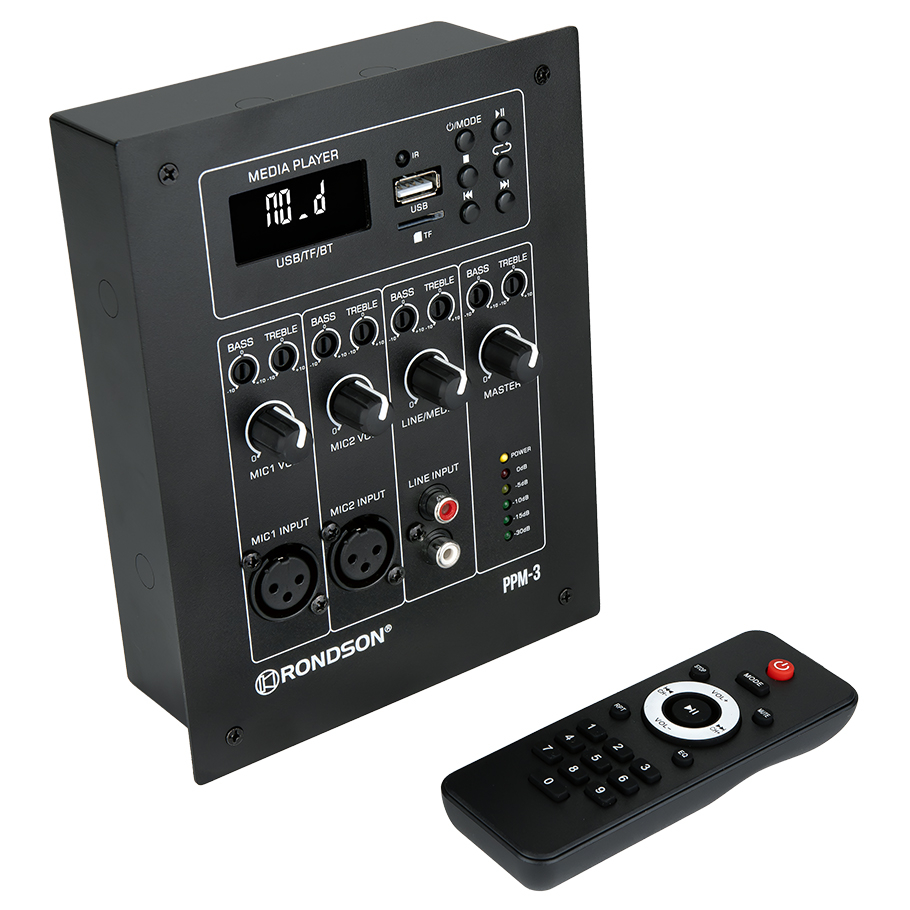

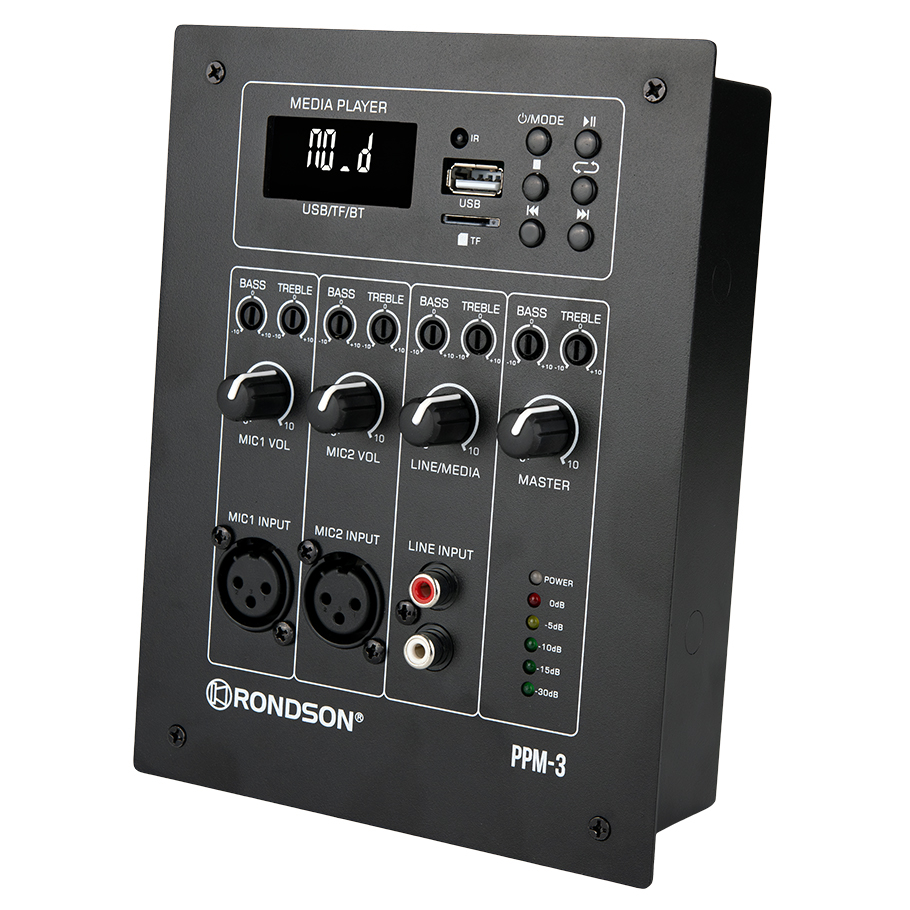

3-input multimedia wall preamplifier with media player remote control included.

PPM-3

PPM-3

Description

Product sheet in PDF format

Description

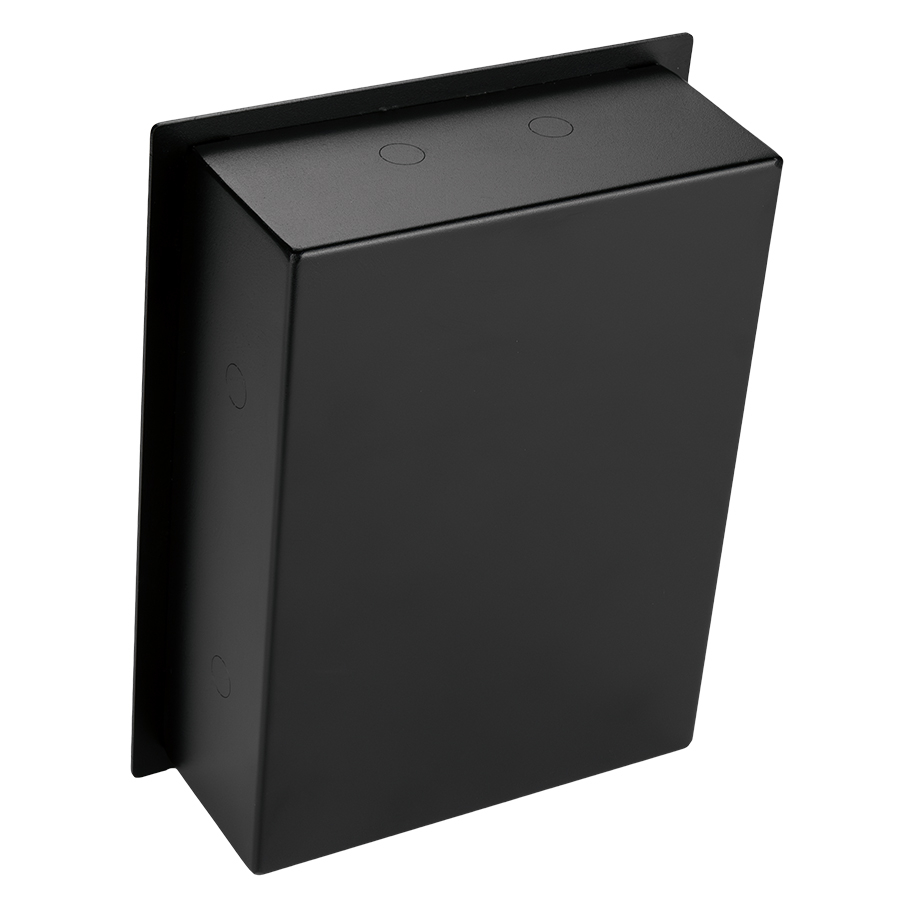

Wall-mounted preamplifier for indoor use, e.g. in gyms, multipurpose halls, etc.

Features

FEATURES	PPM-3
Type	Wall-mounted preamplifier
Inputs/Sensitivity	MIC: (0.5 - 5 mV) 1 kΩ balanced LINE: (775 mV) 10 kΩ unbalanced
Output level	+12 dBu (V.R MAX)

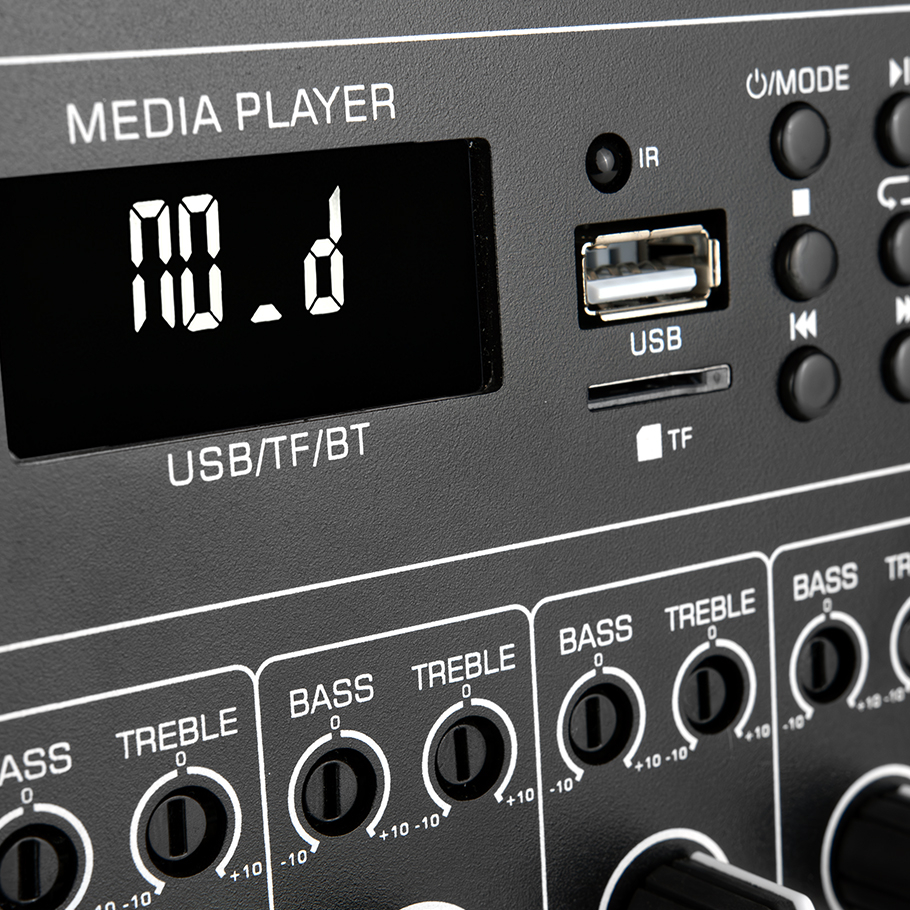

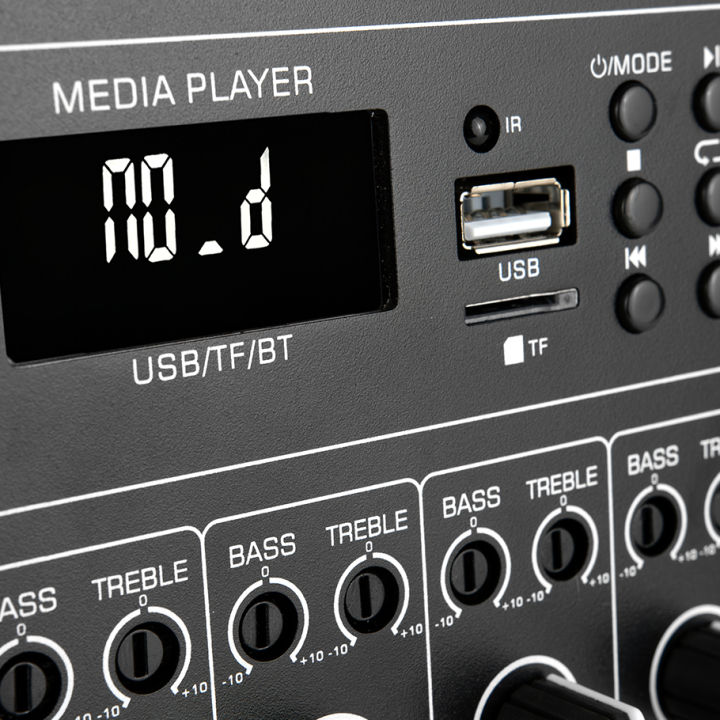

Multimedia player	SD / USB / Bluetooth
Total harmonic distortion	< 0.3%
Bandwidth (line signal)	20 – 20,000 Hz (± 3 dB)
Signal-to-noise ratio	MIC > 70 dB LINE/AUX: > 85 dB
Consumption	Two hundred and fifty milliamperes
Power socket	DC24 V / 1 A
Dimensions L x W x H	182 x 141 x 55 mm
Poids	1 kg

Type

Préamplificateur mural
Consommation

250 mA
Rapport Signal / Bruit

MIC : 70 dB LINE/AUX : 85 dB
Entrées / Sensibilité

MIC : (0.5 - 5 mV) 1 KΩ symétrique LINE : (775 mV) 10 KΩ asymétrique
Niveau de sortie audio

+12 dBu (V.R MAX)
Alimentation

DC24 V / 1 A
Lecteur multimédia

SD / USB / Bluetooth
Distorsion harmonique totale

0,3 %
Bande passante

20 – 20 000 Hz (± 3 dB)
Dimensions (L x P x h)

140 x 55 x 182 mm
Poids

1 kg
