Wireless conference system with 8 microphone desks

Reference : BE-20CONF
SKU : 02815
EAN13 : 3701567913105

8 channel wireless conference system

Automatic reception system

Anti-interference system for simultaneous operation of several stations

Reception distance of 50 metres

10 mW

Fréquences Mhz
Canaux
Share

Description

Data Sheet in PDF

Description :

The BE-20CONF is perfect for providing sound for small meeting rooms, such as board meetings, town councils or general assemblies.

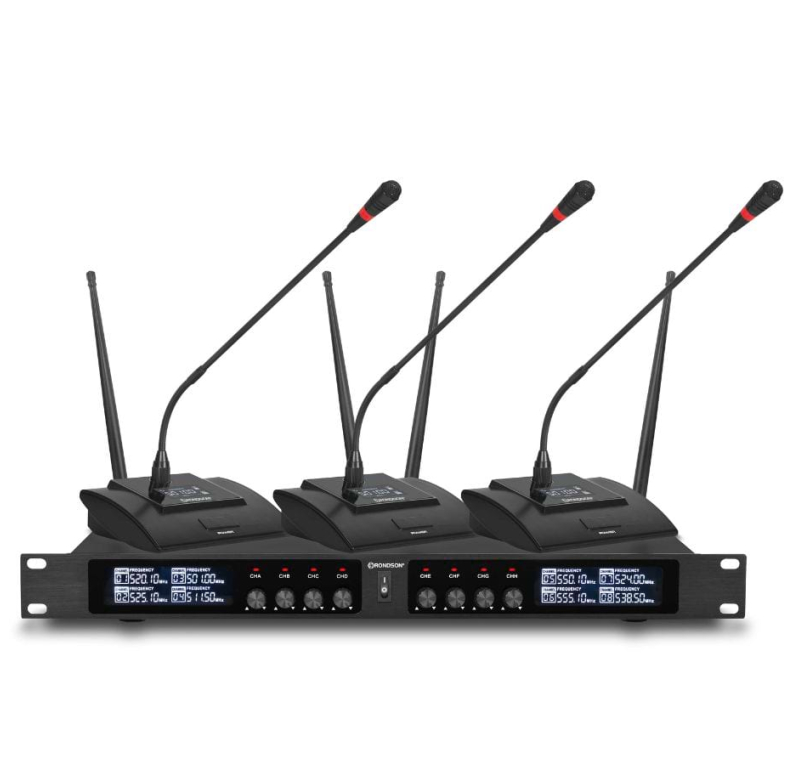

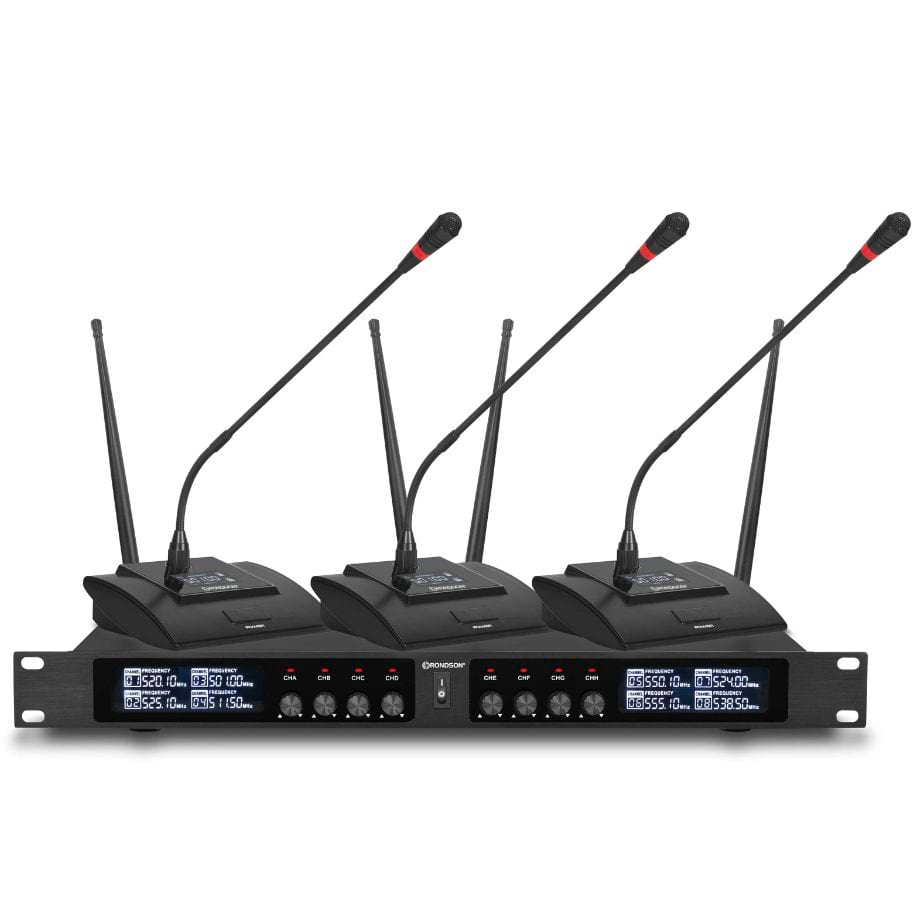

The system includes a receiver station and 8 microphone desks (1 chairman + 7 delegates), expandable to 16 participants. Its ADFHSS wireless technology guarantees clear, stable and confidential communication, with a range of up to 50 meters.

Easy to use, it features two conference modes (first come, speak on demand) and synchronized power supply: delegate desks switch off with the chairman's desk. An LED also signals low battery status.

With excellent resistance to interference and 12 hours of continuous autonomy, the BE-20CONF can be set up quickly for efficient, flexible meetings.

Specifications :

SPECIFICATIONS BE-20CONF
Type

Wireless conference system

Composition

1 Receiving station 8 Conference microphones Cables

Bandwidth

40 – 18 000 KHz

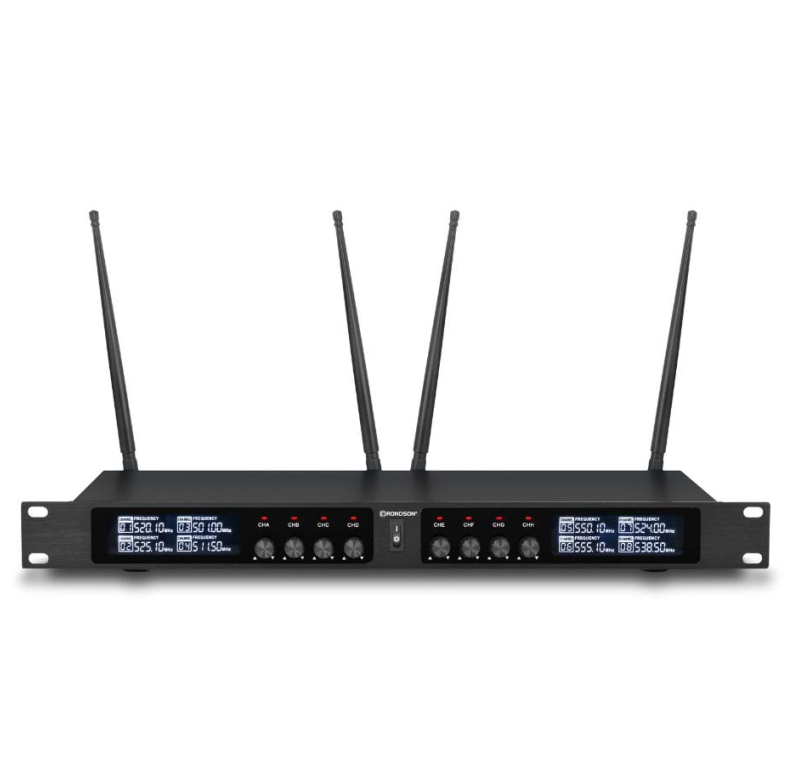

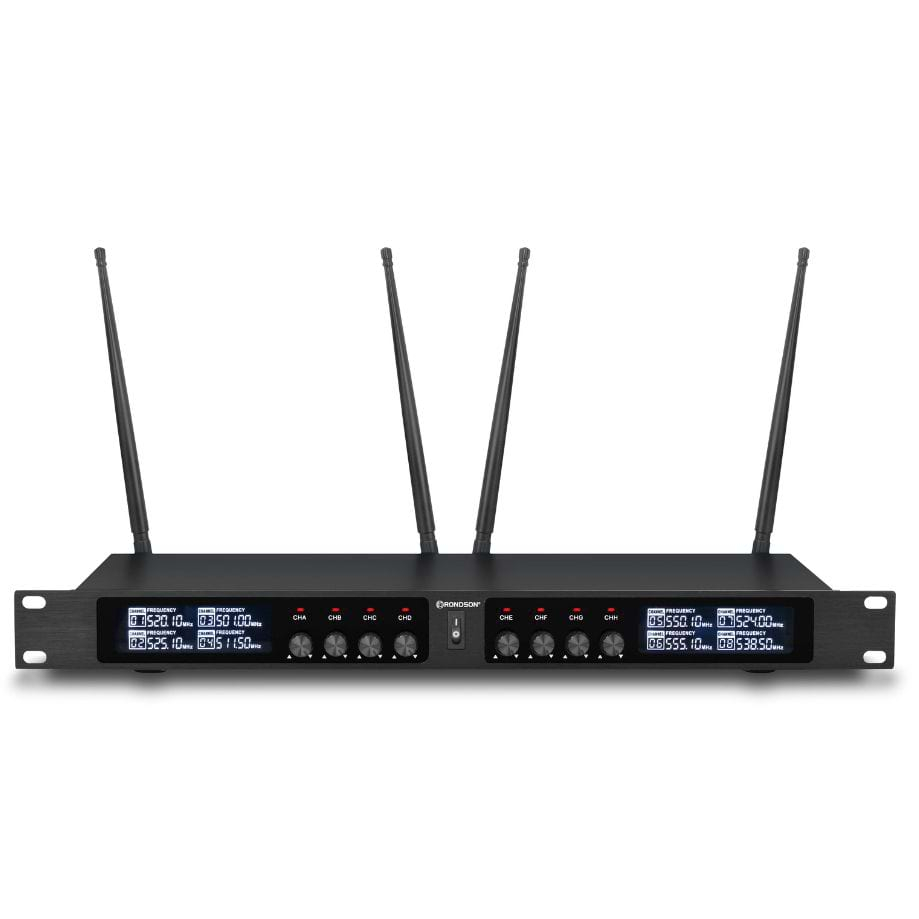

RECEIVING STATION

Fixed frequency

BETWEEN 500 - 700 MHz

High-frequency coding system

ADFHSS (confidentiality)

Power supply

DC-12 V / 1000 mA

Audio offset

≤ 15 MS

Signal-to-noise ratio

≥ 110 dB

Dynamic range

≥ 110 dB

Distortion

≤ 0,6 %

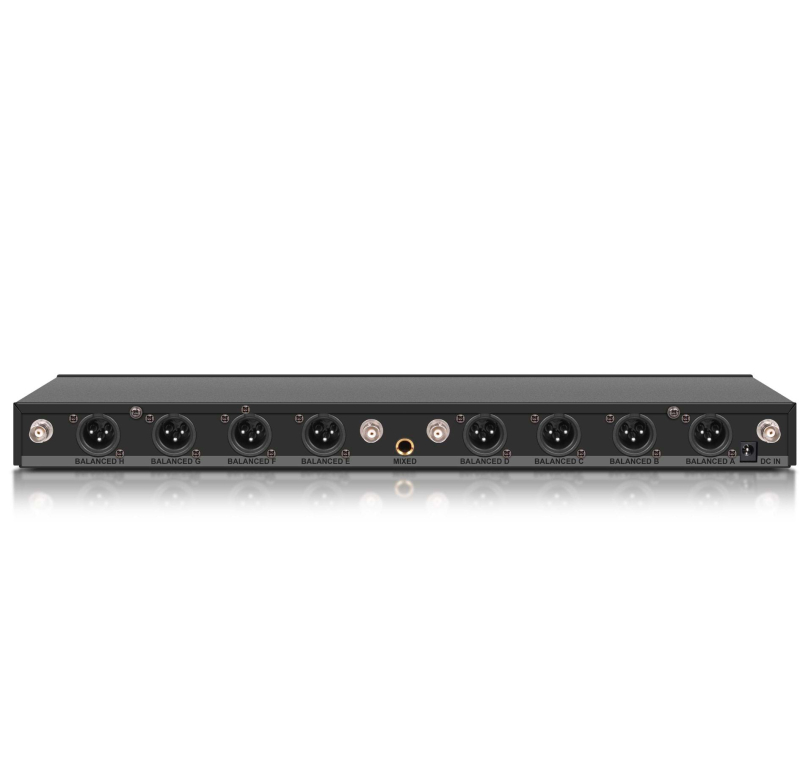

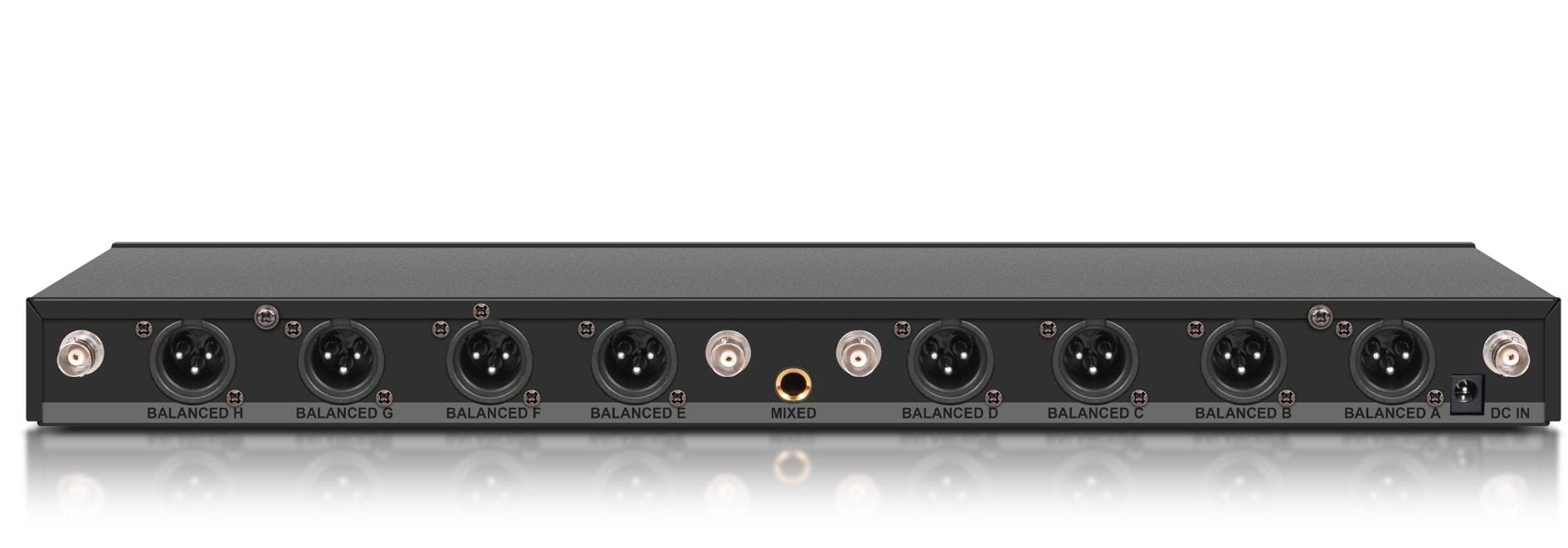

Outputs

Asymétrique : Jack Ø 6,3 mm : 0 dB

Symétrique : XLR : 3 dB

Dimensions (W x D x H)

480 x 185 x 46 mm

Weight

2,75 Kg

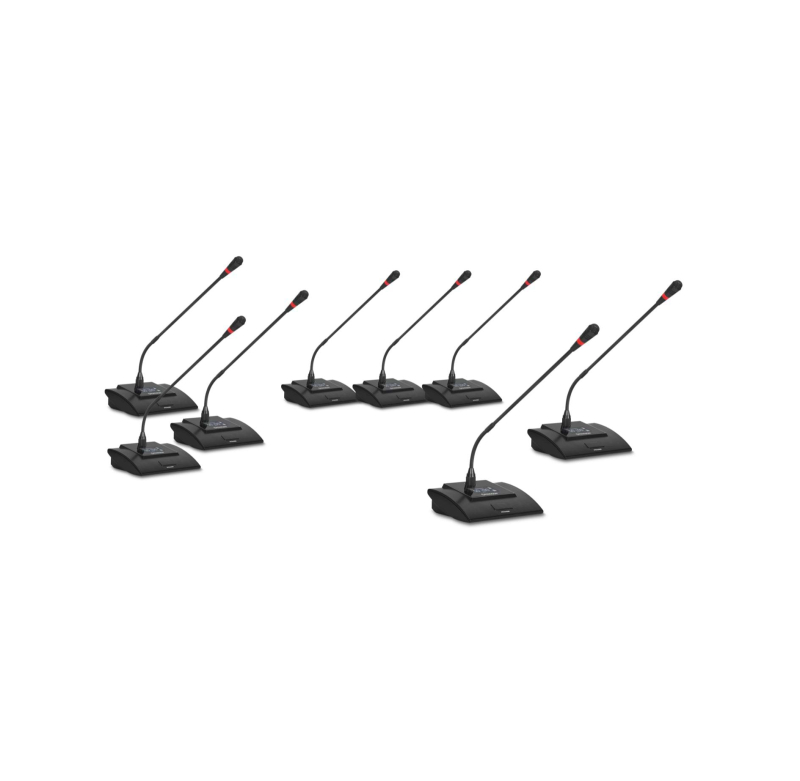

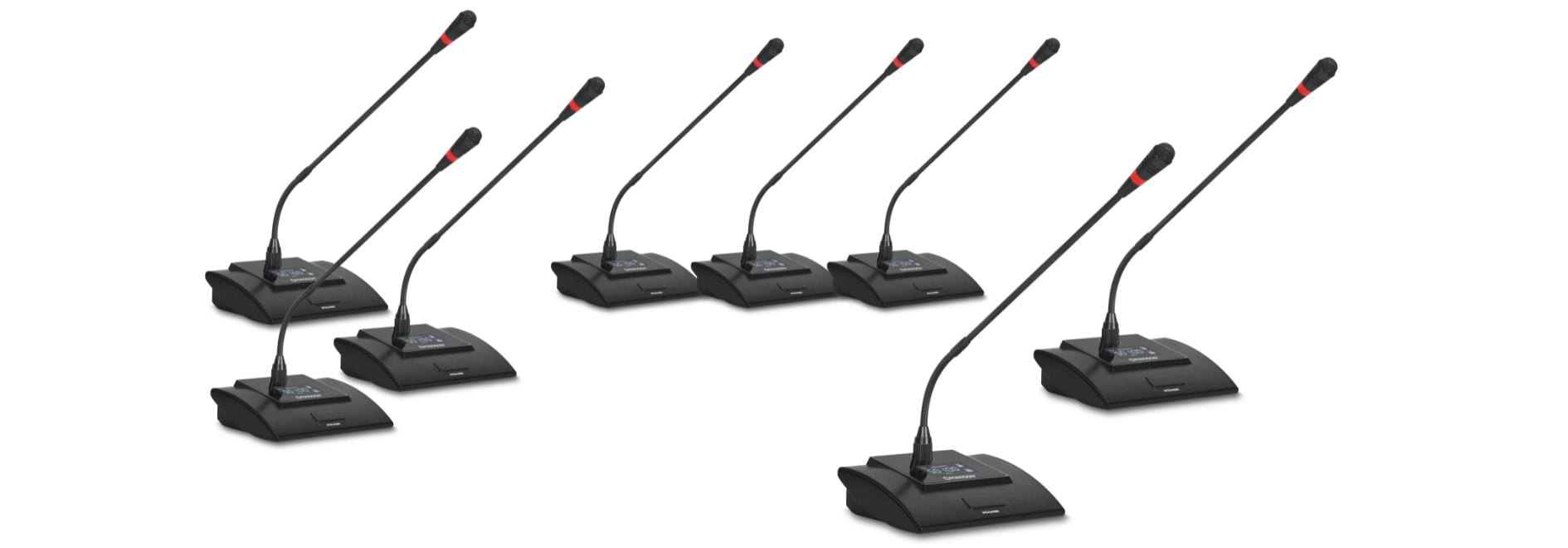

MICROPHONE DESK

Power supply

2 AA 1.5V batteries or 2 AA 1.2V rechargeable batteries

Transmitter power

<10mW

Dimensions

260 x 50 mm

Weight

250 g

Gooseneck

39 cm

Product Details

  • Brand
  • Reference
    BE-20CONF
  • SKU
    02815
  • EAN13
    3701567913105

Data sheet

  • Type
    Système de conférence sans fil
  • Composition
    1 Station de réception 8 Pupitres micros conférences Câbles
  • Fréquences fixes
    ENTRE 500 - 700 MHz
  • Décalage audio
    ≤ 15 MS
  • Dynamic range
    ≥ 110 dB
  • Sortie AUX
    Asymétrique : Jack Ø 6,3 mm : 0 dB Symétrique : XLR : 3 dB
  • Rapport Signal / Bruit
    ≥ 110 dB
  • Alimentation
    2 piles AA 1,5V ou 2 piles AA 1,2V rechargeable
    DC-12 V / 1000 mA
  • Distorsion harmonique totale
    ≤ 0,6 %
  • Bande passante
    40 – 18 000 KHz
  • Puissance de l’émetteur
    10mW
  • Col de cygne
    39 cm
  • Dimensions (L x P x h)
    480 x 185 x 46 mm
  • Poids
    2,75 kgs
