Preamplifier 10 inputs/2 outputs

Name: Preamplifier 10 inputs/2 outputs
Brand: JD-MEDIA
SKU: MA-1410

Reference : MA-1410

SKU : 01065

EAN13 : 8809267793654

Preamplifier

10 inputs and 2 outputs

Chime, priority signals & 220V–240V/24V phantom power

19" rack-mountable (1U)

Zones

Notify me when available

Interested in this product? Drop us an email and we will let you know when it's available for order.

MA-1410

Product details

Description

6.35 mm jack input for microphone input monitoring

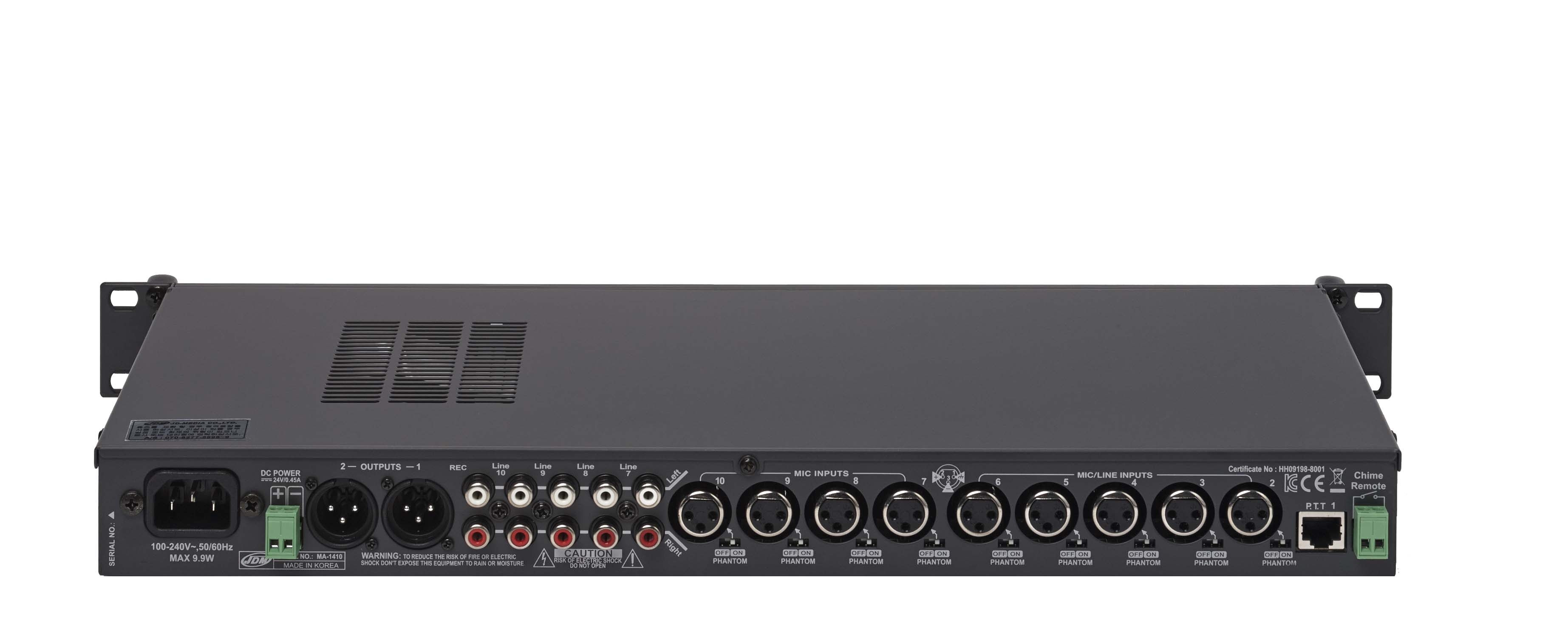

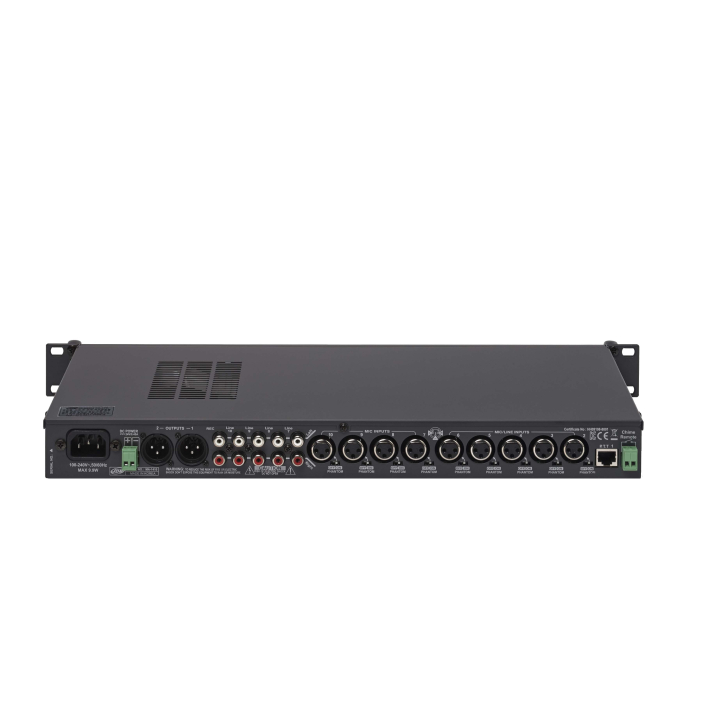

2 balanced MASTER XLR outputs with treble/bass controls and indicator lights

10 inputs / 2 outputs

Phantom power on each channelLINE/MIC/MIC low cut

Automatic priority on channels 1 to 3

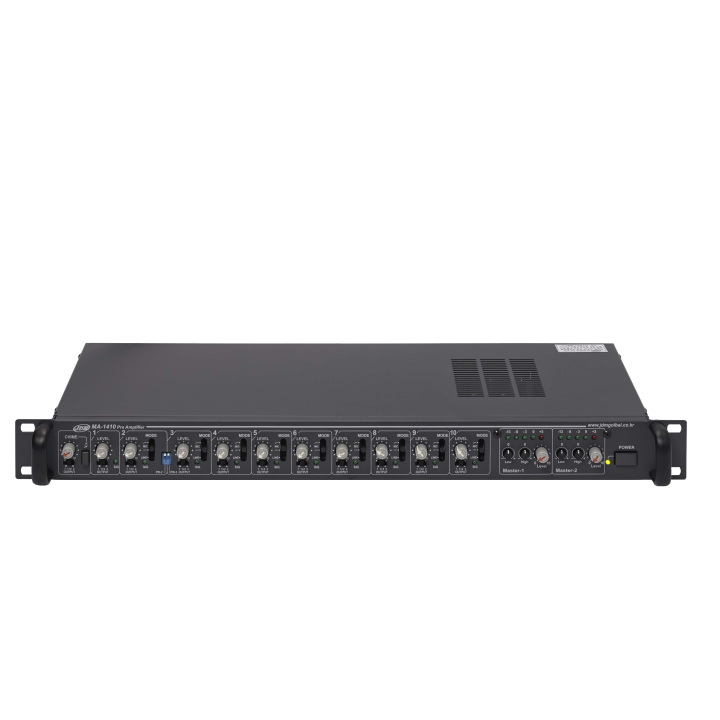

10 channels with individual output selection (output 1, output 1+2, output 2)

High-pass filter

AC mains or DC battery operation

Input signal indicator light

Recording output

DIN socket for connection of the remote control desk microphone (PTT-100N) to channel 1

Signal inputs on XLR (2 to 10) and RCA channel 7 to 10

2 or 4 tone chime (internal setting)

Signal-to-noise ratio

MICRO : +60 dB LIGNE : +75 dB
Alimentation

AC 230 V / 50 Hz / DC 24 V
Bande passante

20 Hz – 20 000 Hz – 0,5 dB
Consommation électrique

9,9 W
Distorsion à 1 kHz

MICRO : -0,04% LIGNE : -0,02%
Diaphonie

MICRO : +60 dB LIGNE : +75 dB
Impédance niveau de sortie

MASTER L, R : Nor +4 dBu (1,23 V) 200 Ω symétrique ENREGISTREMENT : Nor 0 dBu (0,775 V) 10 KΩ asymétrique
Sensibilité d’entrée/ Impédance

MIC : 50 dBu (2,45 mV) 5 KΩ symétrique 10 dBu (245 mV) 5 KΩ symétrique LIGNE RCA : 10 dBu (245 mV) 10 KΩ asymétrique
Dimensions (W × D × H)

483 x 200 x 44 mm (1U)
Weight

4 kgs
