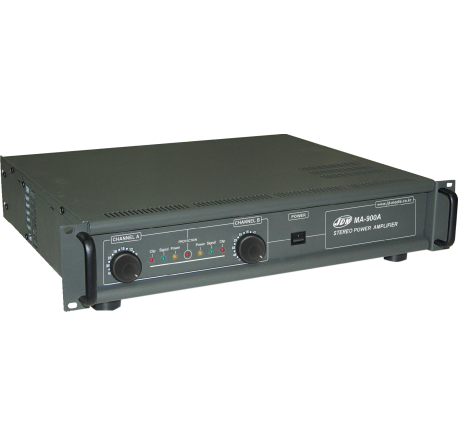

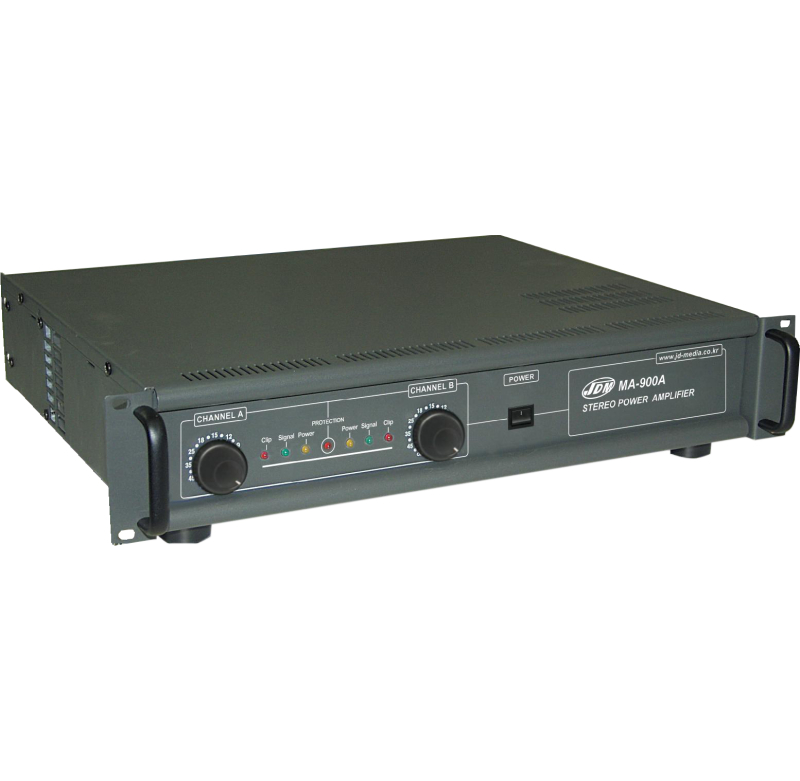

Professional stereo amplifier 2 x 175 W in low impedance 8Ω
02655
Professional stereo amplifier 2 x 175 W in low impedance 8Ω
This product is no longer in stock
For professionals
To log inFor individuals
Contact usCHARACTERISTICS
- Delayed start function
- Balanced XLR and 6.35mm jack inputs
- Stereo 4 Ω, mono bridged
- Detection circuit and signal limiter
- Very low distortion
- Screw terminal block and speakon connection
- Variable speed automatic fan
- Voltage protection
- Overheating protection
- Air circuit from the front of the unit for better ventilation and reliability.
| SPECIFICATIONS |
LX- 1.0 (CODE 01147) |
|
Maximum output power at 1 KHz, THD 1 - 8 Ω stereo - 4 Ω stereo - 8 Ω bridled |
175 W 275 W 550 W |
|
RMS output powers at 1 KHz, THD 0,05 % : - 8 Ω stereo - 4 Ω stereo |
160 W 250 W |
|
Frequency Response under 4 Ω at rated power |
20 Hz – 20000 Hz < -0,5 dB |
|
Input sensitivity |
+4 dBu (1,23 V) / 30 KΩ symmetrical |
|
Setting the limiter |
10 Vrms (+ 22 dB) |
|
Signal-to-noise ratio under 4 Ω at rated power |
> 100 dB |
|
Damping Factor 8 Ω, f=1 KHz |
> 300 |
|
Turnover rate |
> 50 V/µs |
|
Crosstalk 8 Ω at rated power |
> 65 dB |
|
Power consumption under 4 Ω at rated output |
915 W |
|
Power supply |
230 V AC / 50 Hz |
| Dimensions (W x D x H) |
483 x 380 x 88 mm |
| Weight |
11,5 Kg |
